Embedded Mini PC Fanless Windows 10

Model number

N8250E-HD V1.0(8265U)

Case

Material/Structure

Full aluminum case, fan cooling structure

Color

Sliver

Dimension(L*W*H)

128*128*50.2MM

Weight (Net)

1.0KG

Install

Desktop/VESA

Motherboard

CPU

Integrated Intel  i5-8265U/1.60GHz quad-core eight-thread processor，TDP 15W

Graphics

Integrated Intel  UHD Graphics, support DirectX 12 OpenGL 4.5

Memory

Integrated 8G LPDDR3 2133MHz memory

WNIC

Intel® Wireless-AC 9560 + Bluetooth 5.0

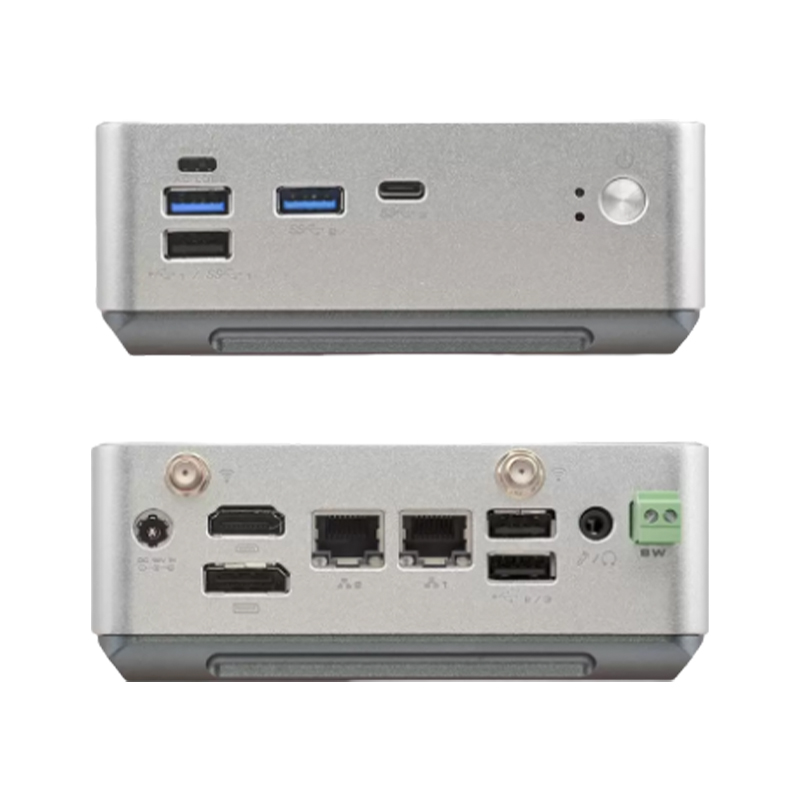

Front panel interface

POWER

1*Power Switch，1* ACLOSS（power on switch）

LED

1*Power LED，1*Hard drive LED

USB

1*USB2.0，2*USB3.0，1*USB TYPE-C( 10Gbps)

Back panel interface

LAN

1*Intel I225 Gigabit internet port，1*Intel I219，support network wake up, PXE function

Display

1*DP，1*HD OUTPUT，support dual display

USB

2*USB2.0

POWER

1*DC 12V power input

Audio

1*Line out，1* MIC

Storage

SATA

1*2.5-inches hard disk

M.2

1*M.2，Support Key-M，2280，NVME PCIEx4 SSD

System Support

Microsoft Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function(L256, 0~255 seconds)

Power

Power supply type

External power adaptor

Voltage input

DC 12V

Power output

AC TO DC 60W above

Environment

Operating temperature

-10℃～50℃

Storage temperature

-20℃～70℃

Relative humidity

5%-95% relative humidity, no condensation

Working vibration

0.5g rms/5-500HZ/random/operating
