Industria Mini PC Linux 12Vdc Din Rail

Model number

N5450Z-C2 V1.0(6360U)

Case

Material/Structure

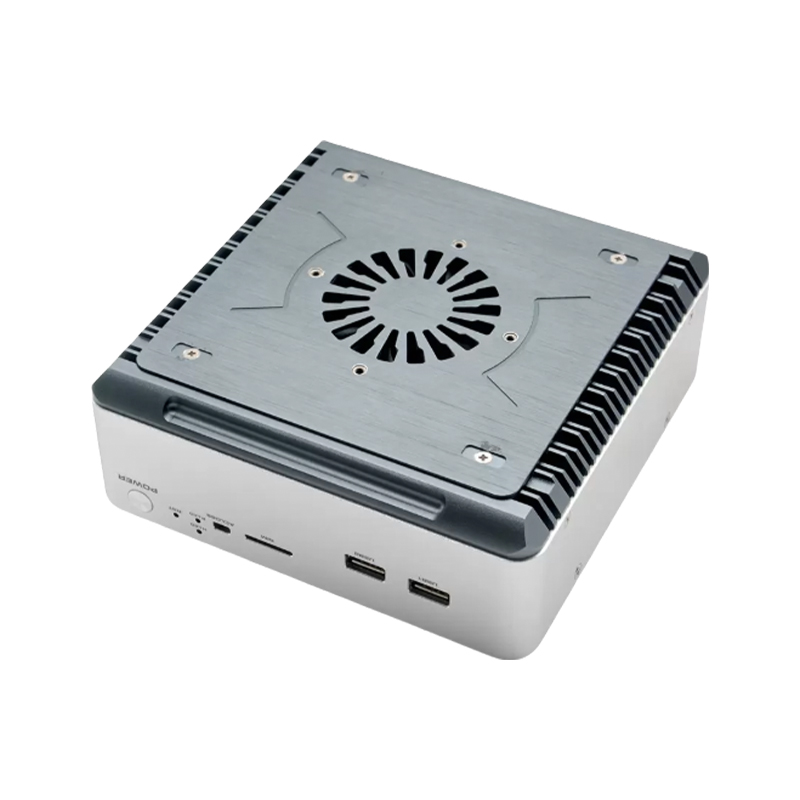

All aluminum alloy, fan cooling

Color

Iron gray

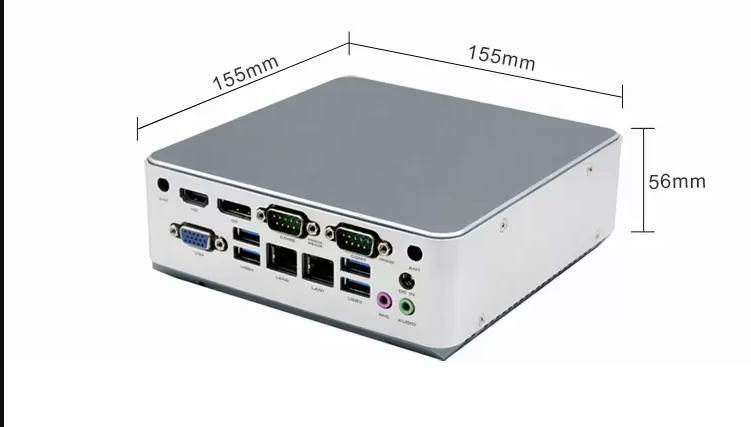

Dimension(L*W*H)

155*155*56.10MM

Install

Desktop/Wall Mount

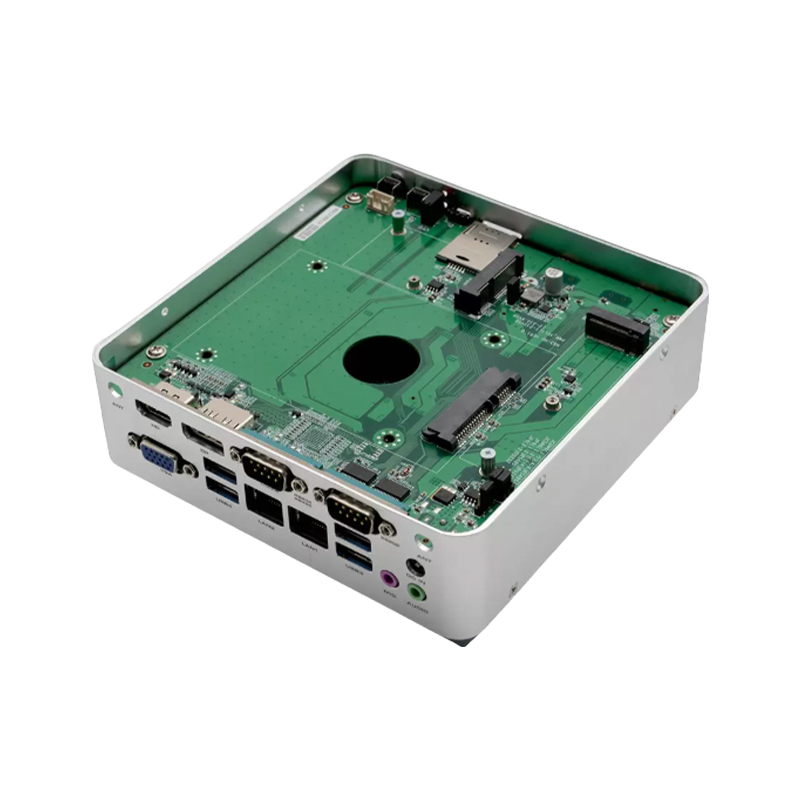

Motherboard

CPU

Integrated Intel® Skylake-U I5 6360U/2.0GHz dual-core quad-thread processor TDP 15W

System Chip

Based on Intel® Skylake-U SOC platform

Memory

Integrated 8G LPDDR3 2133MHz memory

Show

2*DDR4 SODIMM memory slots, support 2133MHz memory, up to 32GB

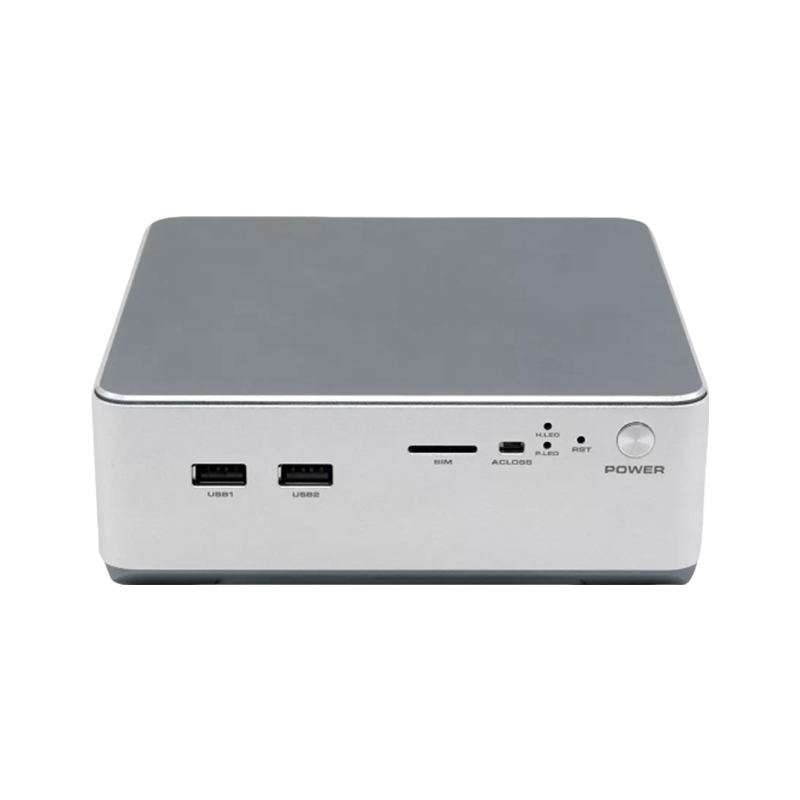

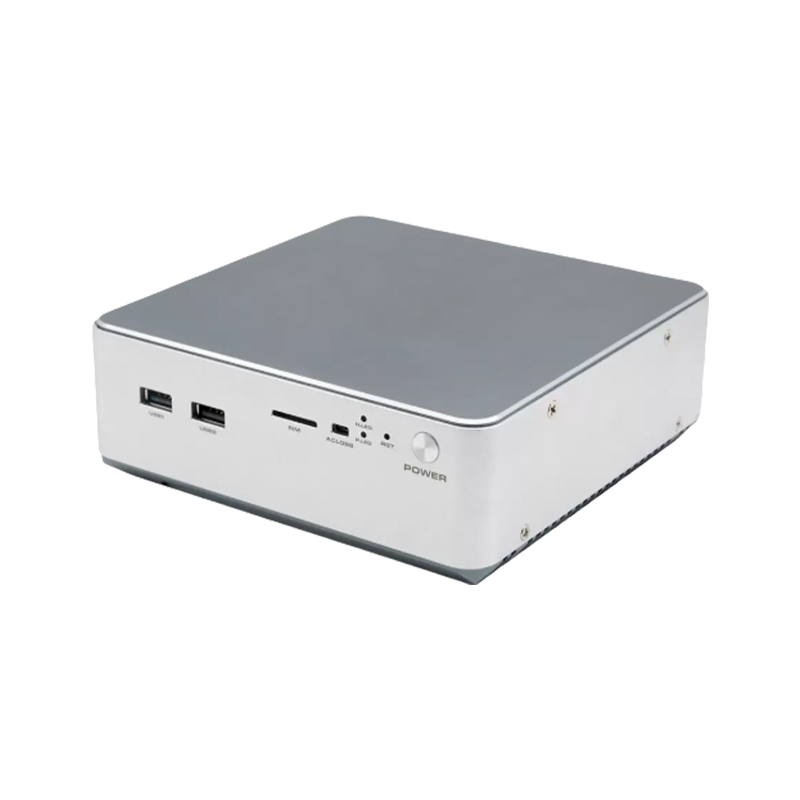

Front panel interface

POWER

1*Power switch, 1*Reset switch

LED

1* power indicator, 1* hard disk indicator

USB

2* USB2.0 interface

AC LOSS

1*AC LOSS (power-on toggle switch)

SIM

1* SIM card slot, 3G/4G module application

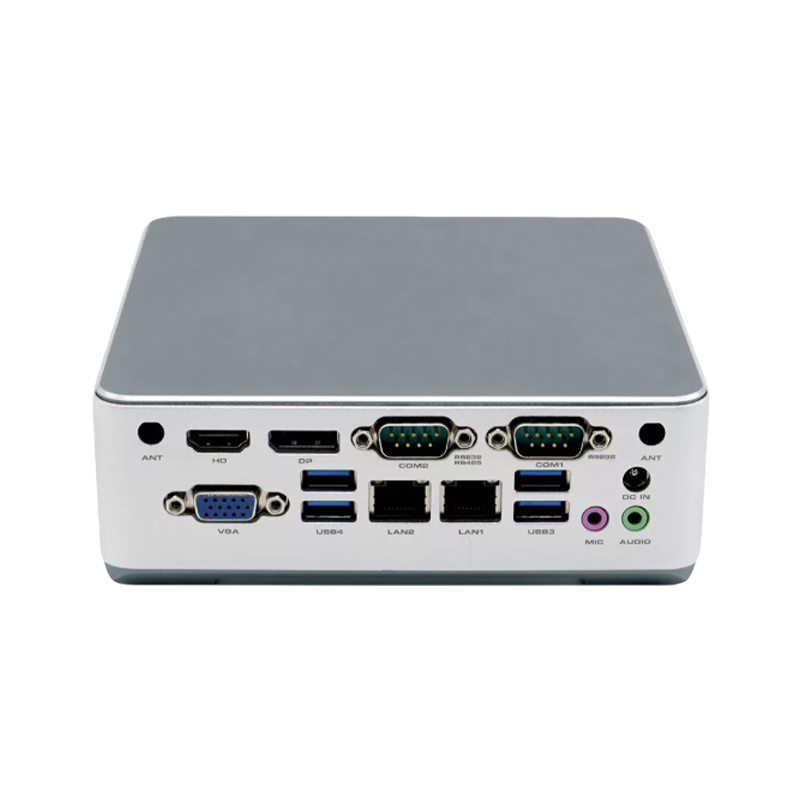

Rear panel interface

LAN

2*Intel® WGI211AT Gigabit LAN, support Wake-on-LAN, PXE function

Display interface

1*VGA interface(1920X1200@60Hz), 1*HD OUTPUT1.4 interface(4096X2306@24Hz),1* DP interface (4096X2304@60Hz)

USB

4* USB3.0 interface

COM

2* RS232 DB9 serial interface, COM2 supports RS232/RS485 switching

Audio

1* Line out interface, 1* MIC interface

Power supply

1* DC power adapter interface, support DC 12V power input

Storage

SATA

1*2.5 inch hard drive expansion

Solid state drive

1* MSATA SSD expansion, transfer speed up to 6Gbps

Expand

Mini PCIE

1* Mini PCIE slot, support WIFI/4G module

M.2

1* M.2 slot, support M.2 2260/2280 NVME PCIE x4 standard SSD

System Support

Microsoft Windows

Windows 10(without key)

Linux

Ubuntu

Watch Dog

Support hardware reset function(L256, 0~255 seconds)

Power

Power supply type

External power adaptor

Voltage input

DC 12V

Power output

AC TO DC 60W above

Environment

Operating temperature

-10℃～50℃

Storage temperature

-20℃～70℃

Relative humidity

5%-95% relative humidity, no condensation

Working vibration

0.5g rms/5-500HZ/random/operating
