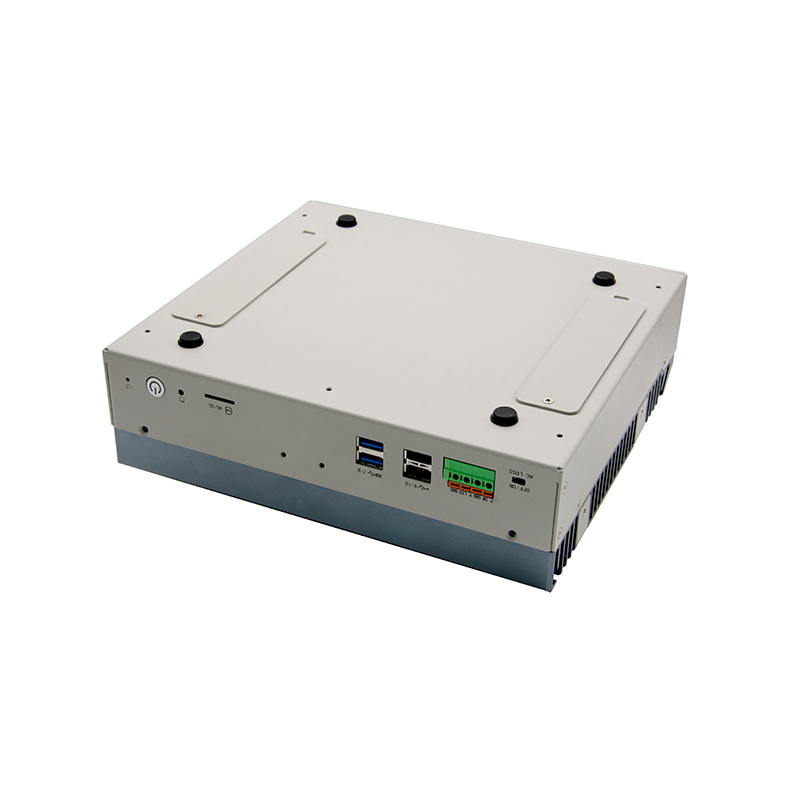

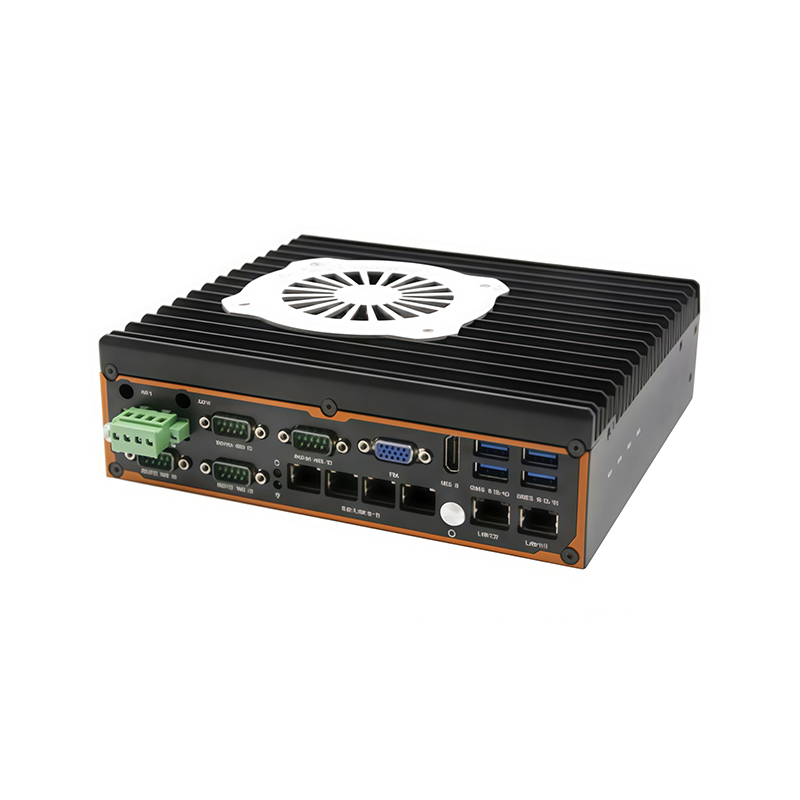

High Performance Industrial Control Host G3250F-L6

Model

G3250F-L6 V2.0(3210M)

Chassis

Material/structure

Aluminium + sheet metal

Colour

Black+Silver

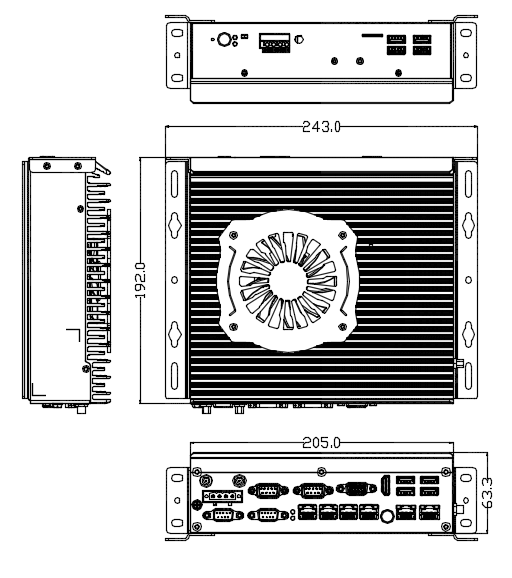

Size (LWH)

205*192*63.3MM

Weight (bare net)

2.4KG

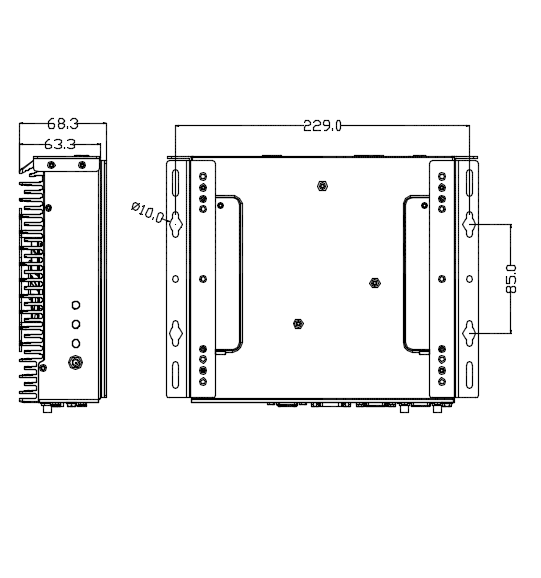

Installation

Desktop/Embedded/DIN rail

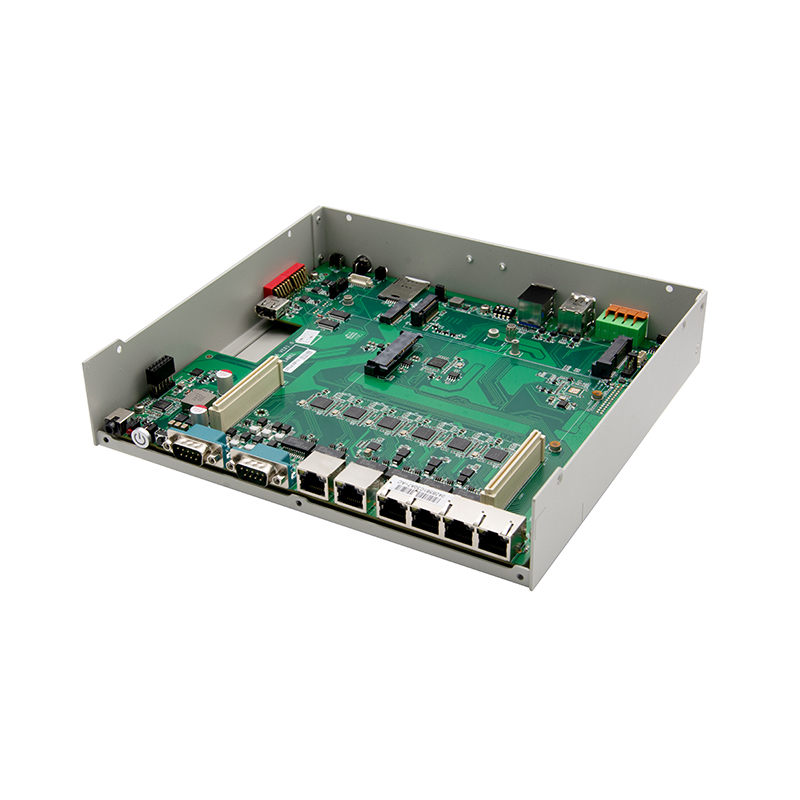

Motherboard

CPU

Integrated Intel i5-3210M/2.50GHz Dual-Core Quad-Thread Processor, TDP 35W

System Chip

Intel HM77

Memory

2*SODDR3 1600MHz, support up to 32GB

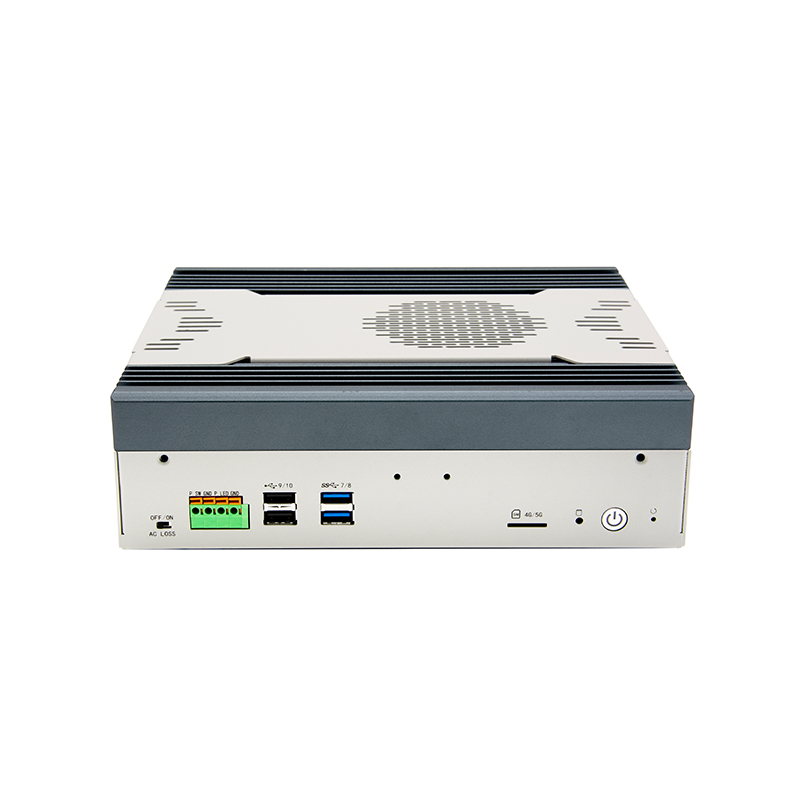

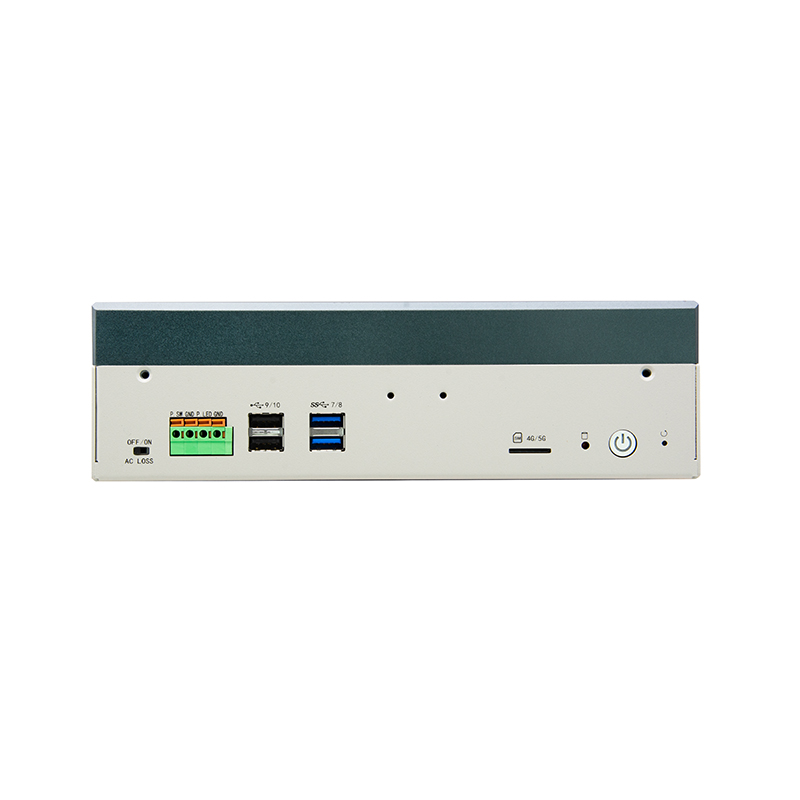

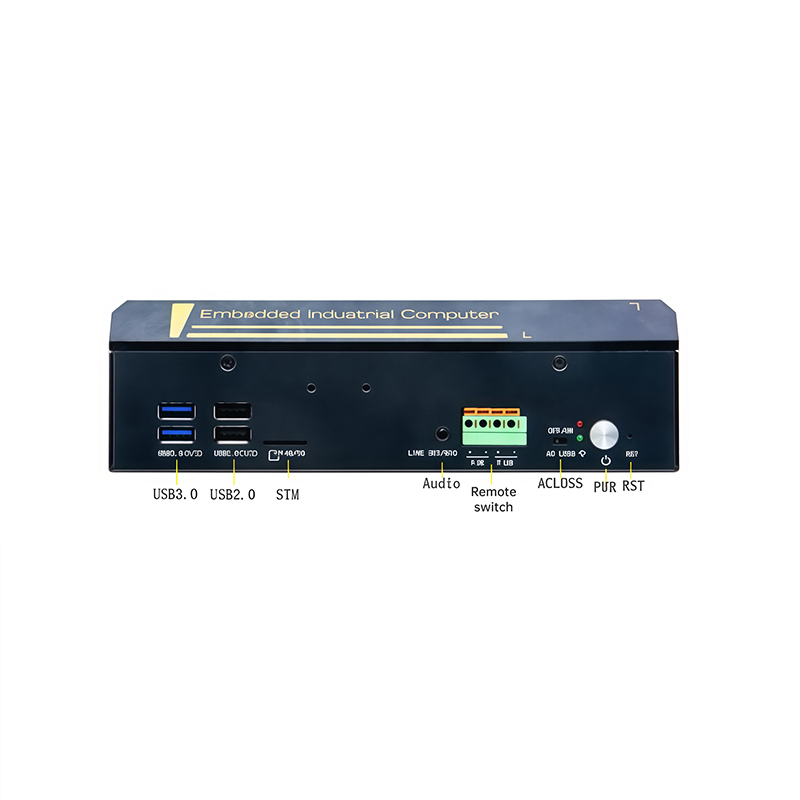

Front Panel Connectors

Switch

1*Boot Button, 1*One-Key Restore, 1*ACLOSS (Power-on DIP Switch)

LED

1*Power Indicator, 1*Hard Drive Indicator

USB

2*USB3.0, 2*USB2.0, built-in 1*USB2.0

Phoenix Terminal

1*4P Phoenix terminal (1*Power indicator, 1*Power switch)

Audio

1*Audio, Line out and Mic 2-in-1

SIM

1*SIM standard card slot

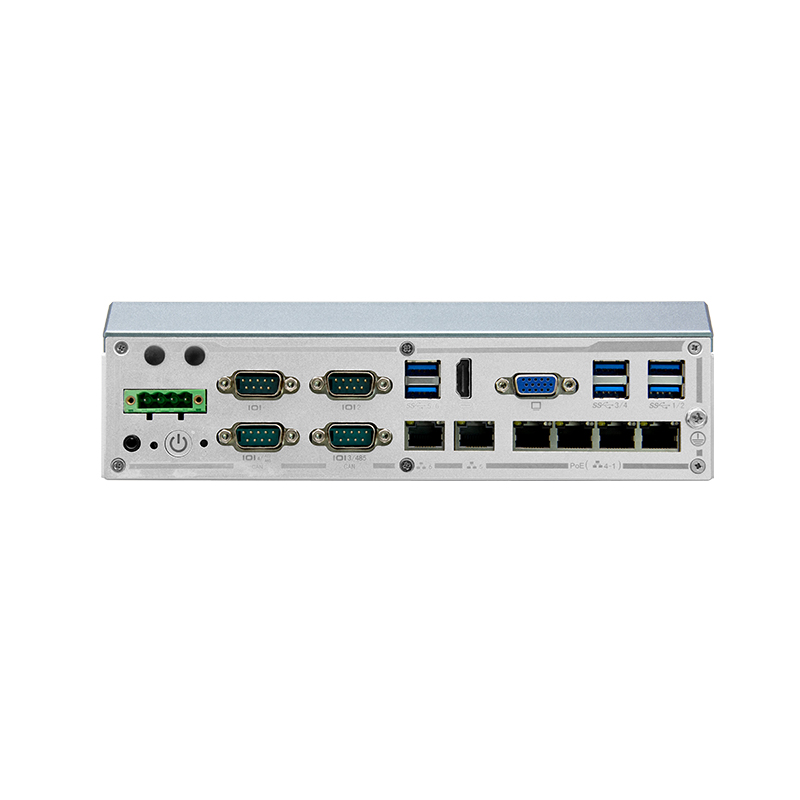

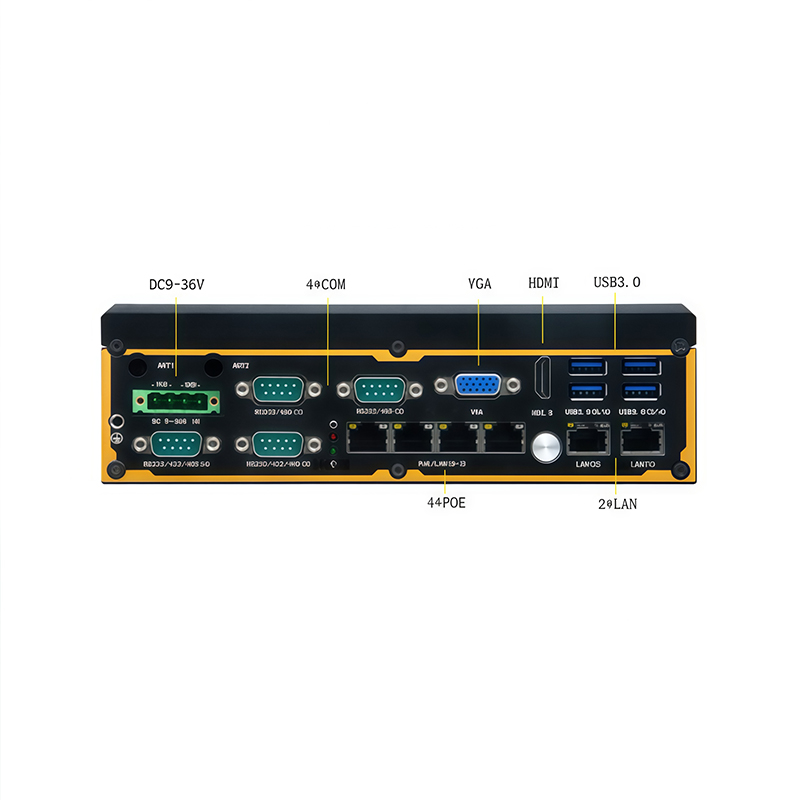

Rear Panel Interface

Display Interface

1*HDMI1.4, 1*VGA, support dual display

USB

4*USB3.0

COM

4*RS232/485 DB9 serial port, of which COM3~4 can support CAN (need to load CAN module)

LAN

6*Intel I210AT Gigabit Ethernet ports, 4 of which support POE / 15W single port

DIP Switch

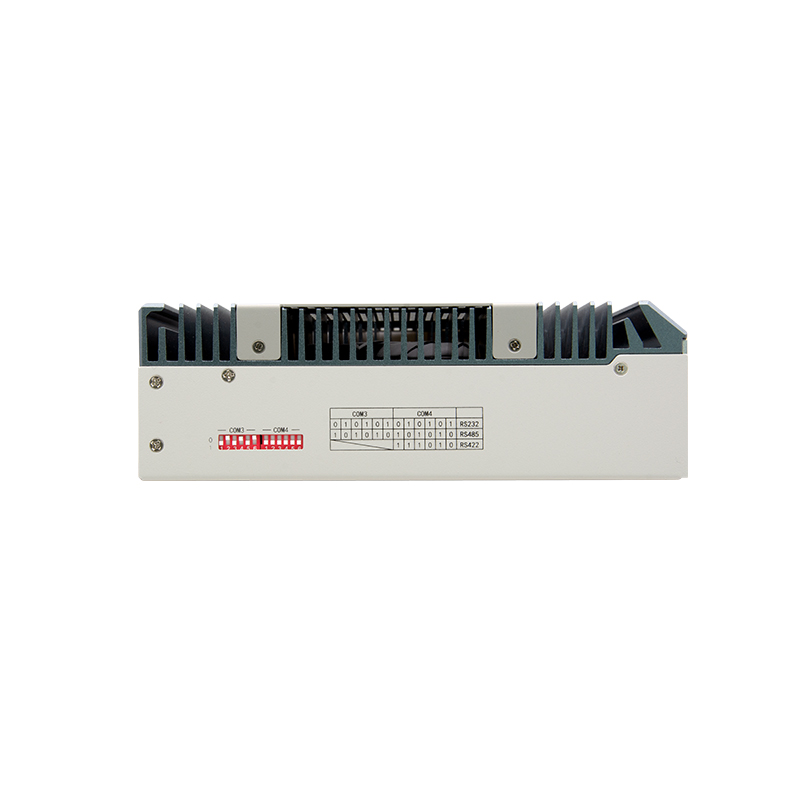

4 sets of 6-position dip switches, COM1-4 RS232/485 switching through dip switches + BIOS settings to achieve

Power Interface

1*4P P=5.08mm Phoenix terminal, support 9~36V wide voltage input

Storage

MSATA/SSD

1*MSATA(3210M)

1*M.2, support Key-M, 2280, NVME PCIEx4/SATA Adaptive SSD (M.2 for other CPU )

SSD

1*M.2, Key-M support, 2280, SATA SSDs

Expansion

WiFi/4G

1*MINIPCIE, support WiFi+BT or 4G

5G

1*M.2, support Key-B, 3042/3052, 5G module

System Support

Microsoft

Windows 7

Linux

Linux

Power Supply Type

Power Type

External Power Adapter

Input

Voltage Input

DC 9-36V wide voltage

Power Output

AC TO DC 90W or more (depending on specific equipment)

Environment

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity, non-condensing

Operating Vibration

0.5g rms/5-500HZ/random/operating
