Mini PC I7 With Sim Card Slot

Model number

N3919SZ

Case

Material/Structure

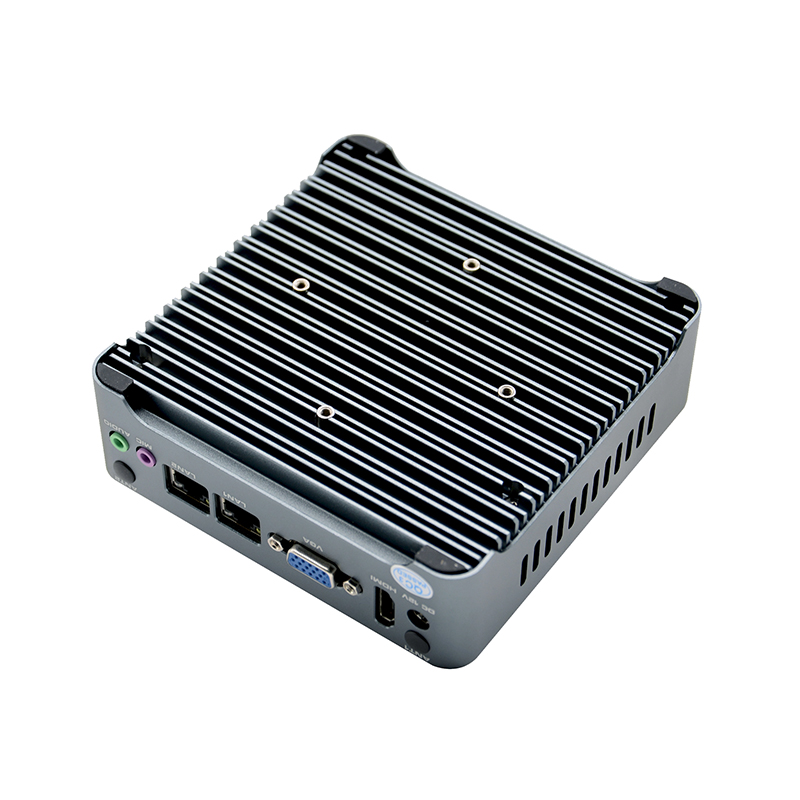

Full aluminum case, fanless cooling structure

Color

Iron gray

Dimension(L*W*H)

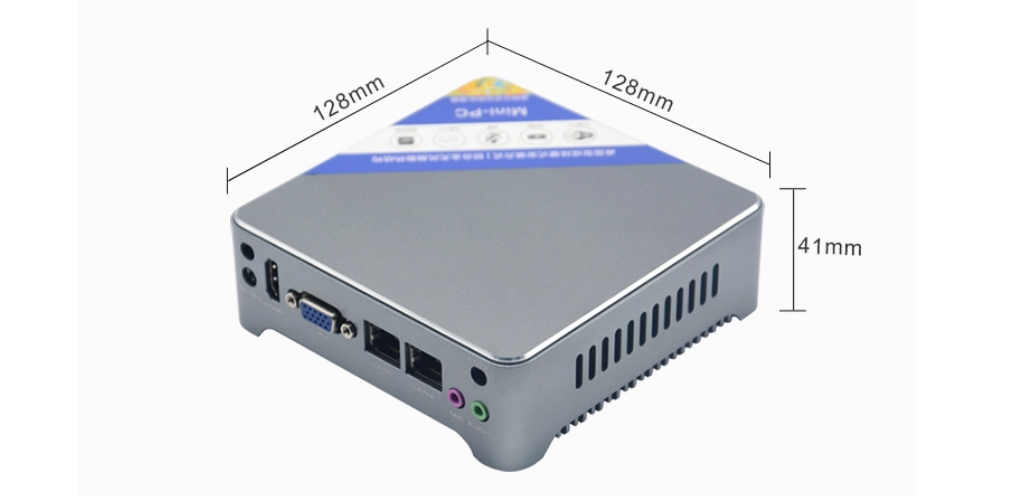

128*128*41MM

Install

Desktop/Wall-Mounted

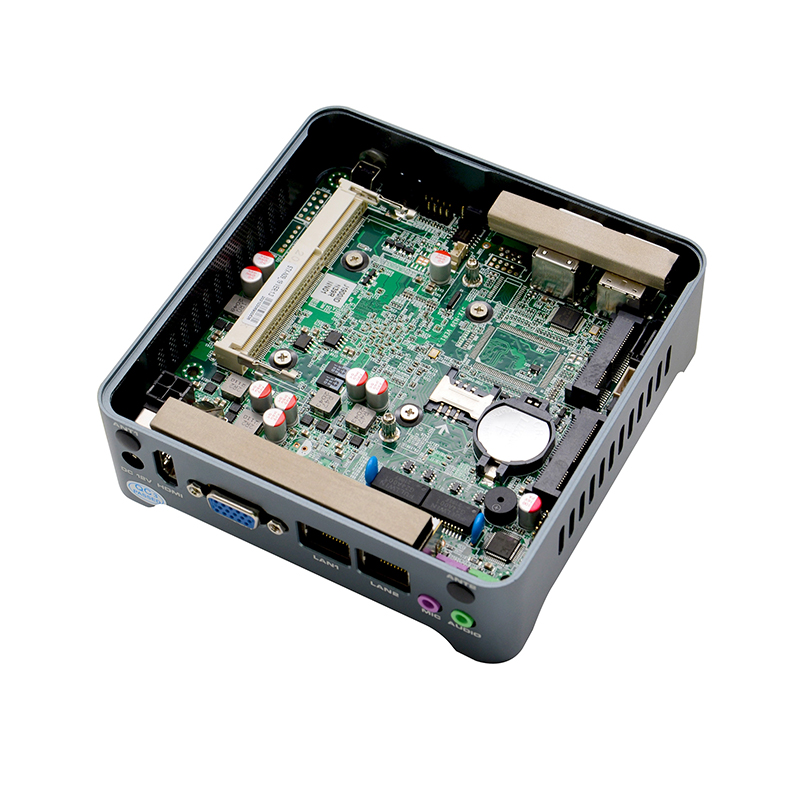

Motherboard

CPU

Integrated Intel®J1900/2.00GHz quad core processor,TDP 10W

Chipset

Intel® Bay trail SOC

Display

Intel® HD Graphics

RAM

1*SO DDRIII slot, support 1600/1333MHz DDR3L/1.35V RAM,max up to 8GB

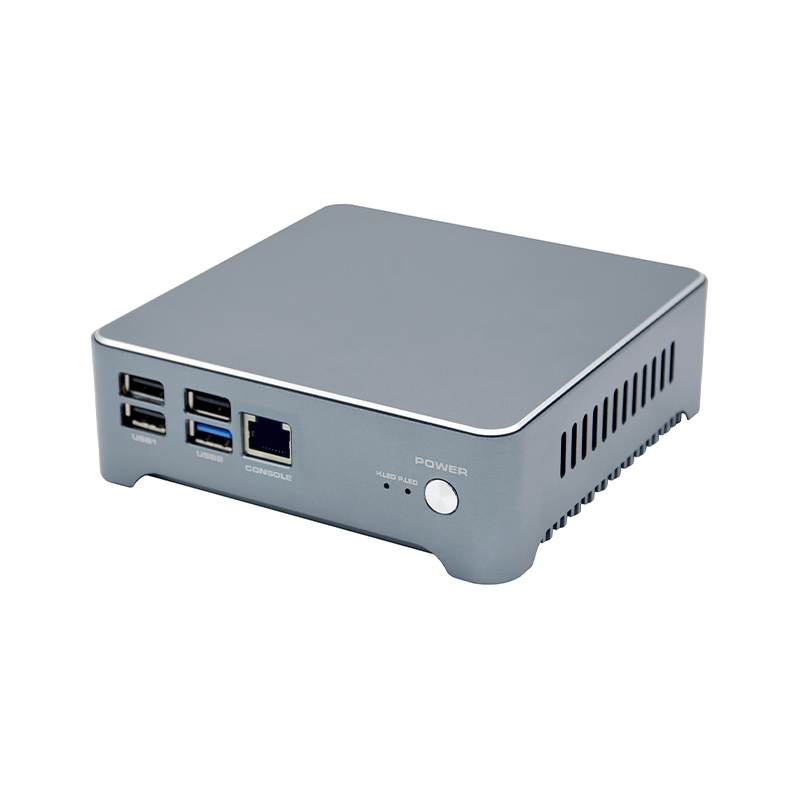

Front I/O Port

POWER

1*Power switch

LED

1*power LED, 1* HDD LED

USB

3* USB2.0 port, 1*USB3.0 port

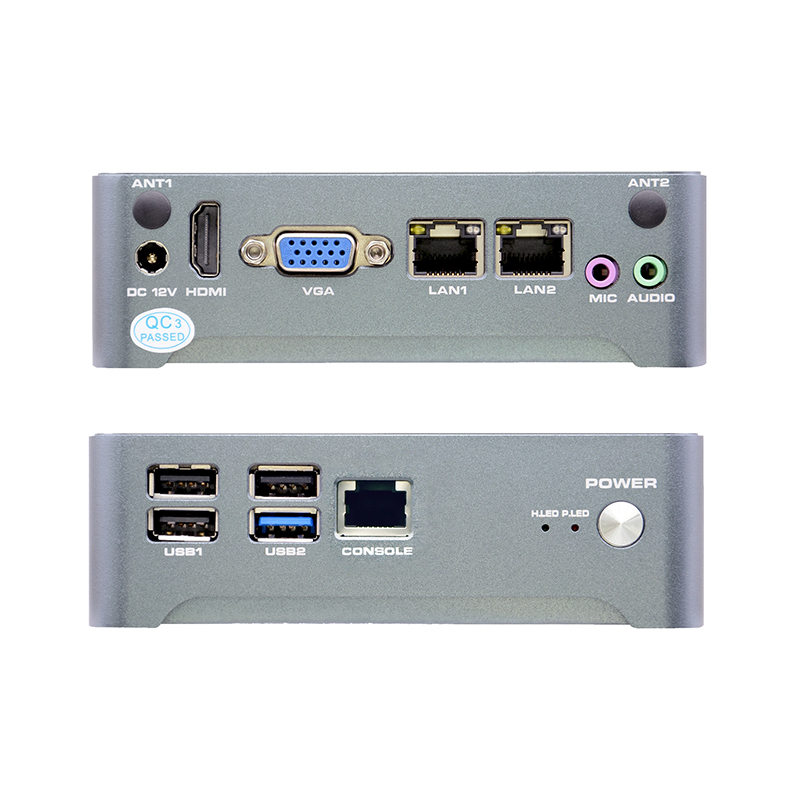

Rear I/O Port

LAN

1* RTL8111F Gigabit Ethernet, support WOL / PXE function

Display Port

1* VGA port ,1* HD OUTPUT port

USB

2* USB2.0 port

Audio

1* Line out port，1* MIC port

Power supply

1* DC power port, support DC 12V power input

Storage

SATA

1* 7pin SATA2.0 HDD port, transfer rate up to 3Gbps

SSD

1* MSATA slot, support SSD/WIFI(default: SSD),transfer rate up to 3Gbps

Expansion

Mini PCIE

1* Mini-PCIE slot, support WIFI/4G module

M.2

N/A

OS Support

Microsoft Windows

Windows 10, 64bit (not include OS code)

Linux

Ubuntu

Watch Dog

Support hardware reset function(L256, 0~255 seconds)

Power

Power supply type

External power adaptor

Voltage input

DC 12V

Power output

AC TO DC  60W

Environment

Operating temperature

-10℃～60℃

Storage temperature

-20℃～70℃

Relative humidity

5%-95% relative humidity, no condensation

Working vibration

0.5g rms/5-500HZ/random/operating
