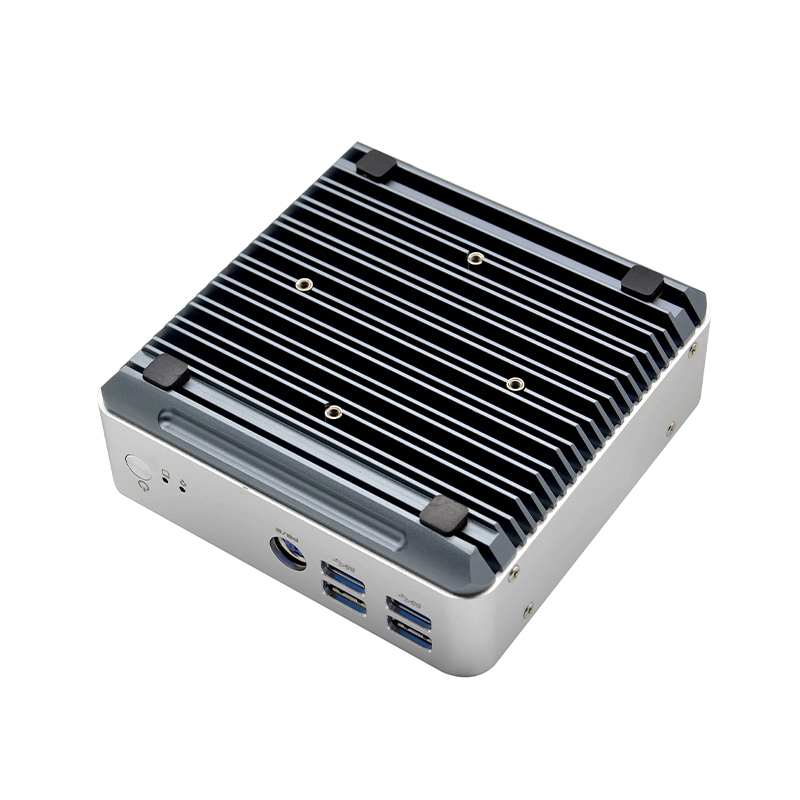

Mini PC Core I3 Industrial Din Rail

Model number

N5241Z V1.0(J4105)

Case

Material/Structure

Full aluminum case, fanless  cooing design

Color

Iron gray

Dimension(L*W*H)

128*128*46MM

Install

Desktop/VESA Mount

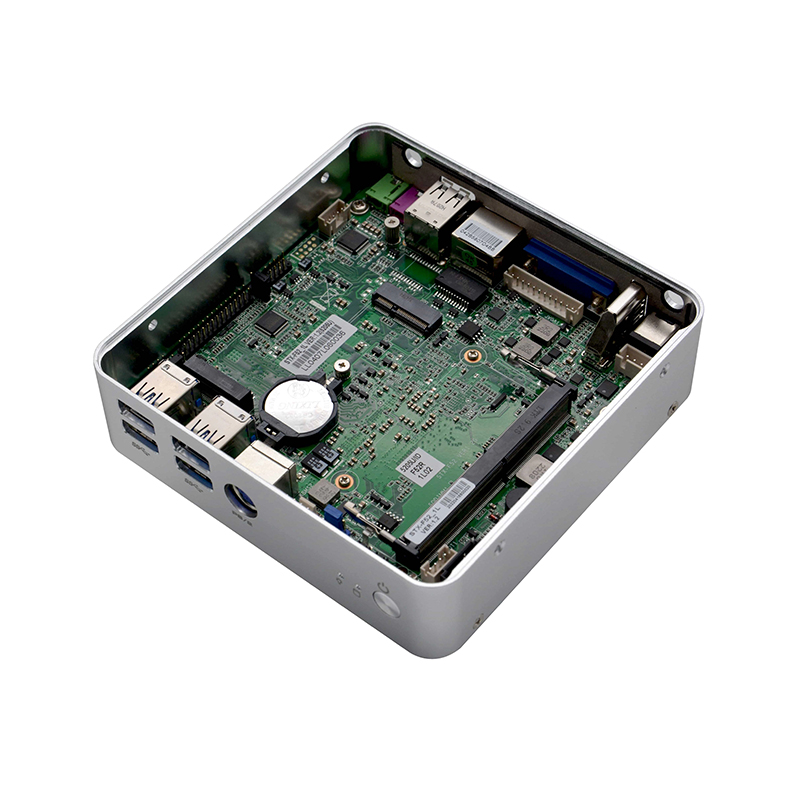

Motherboard

CPU

Onboard Intel® Celeron® J Series  J4105 1.50 GHz , 4 Cores 4-thread processor, TDP 10W

Chipset

SOC

Display

Integrated Intel® UHD Graphics 600

RAM

1* SODIMM RAM slot, support DDR4 2400MHz memory, up to 8GB

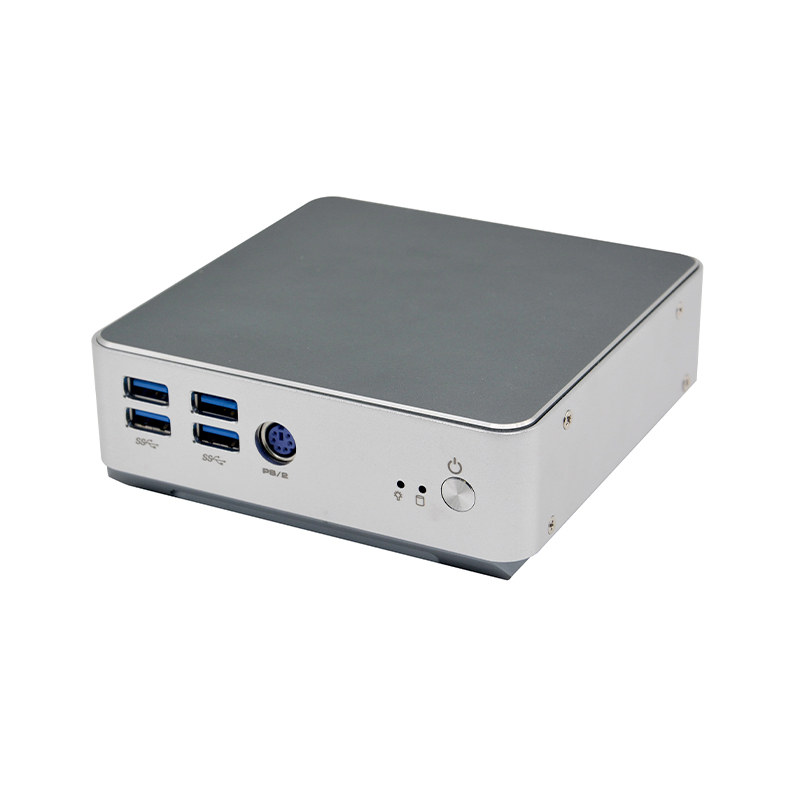

Front I/O Port

POWER

1*Power switch

USB

4* USB3.0 port

LED

1*Power LED, 1* HDD LED

PS2

1*PS/2  port，KB/MS two in one

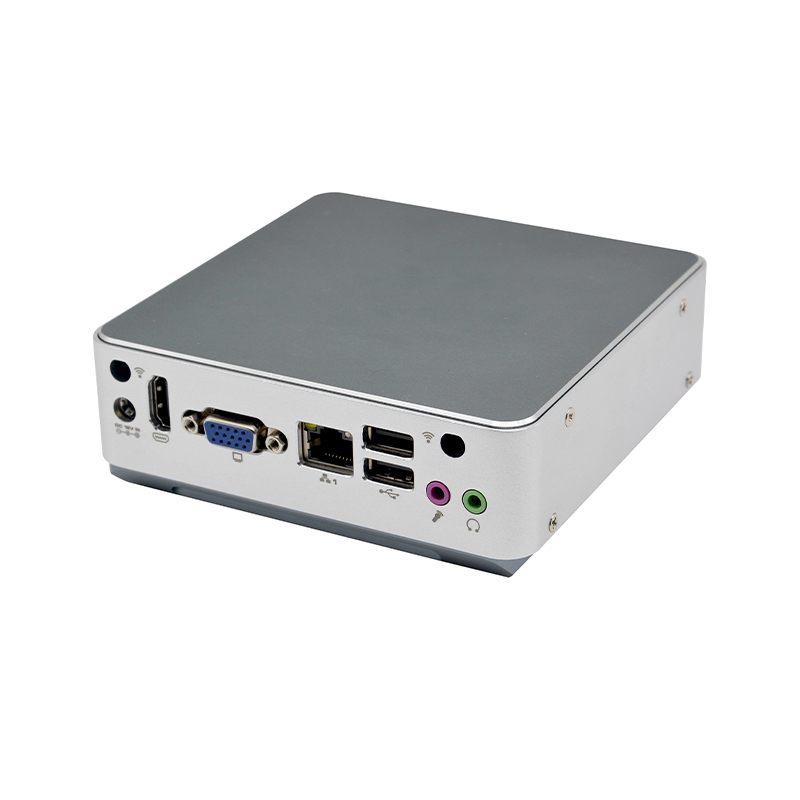

Rear I/O Port

LAN

1*RJ45 LAN port， Realtek8111H Gigabit Ethernet, support Wake On LAN、PXE function

Display Port

1*VGA port，1*HD OUTPUT port

USB

2* USB2.0 port

Audio

1* Line out port、1*MIC port

Power

1* DC power connector, support DC 12V power input

Storage

SATA

1* SATA 3.0 hard disk port, transfer rate up to 6Gbps

M.2

1* M.2 2280 SATA SSD slot

Expansion

Mini PCIE

N/A

M.2

1* M.2 2230 slot, support WiFi module

OS Support

Microsoft Windows

Windows 10, 64bit (not include OS code)

Linux

Ubuntu

Watch Dog

Support hardware reset function(L256, 0~255 seconds)

Power

Power supply type

External power adaptor

Voltage input

DC 12V

Power output

AC TO DC 60W

Environment

Operating temperature

-10℃～60℃

Storage temperature

-20℃～70℃

Relative humidity

5%-95% relative humidity, no condensation

Working vibration

0.5g rms/5-500HZ/random/operating
