Fanless Industrial Mini PC

Model

N1250Z-H2 V0.1(J6426)

Chassis

Material/structure

All aluminium alloy, fan less cooling structure

Colour

Iron grey

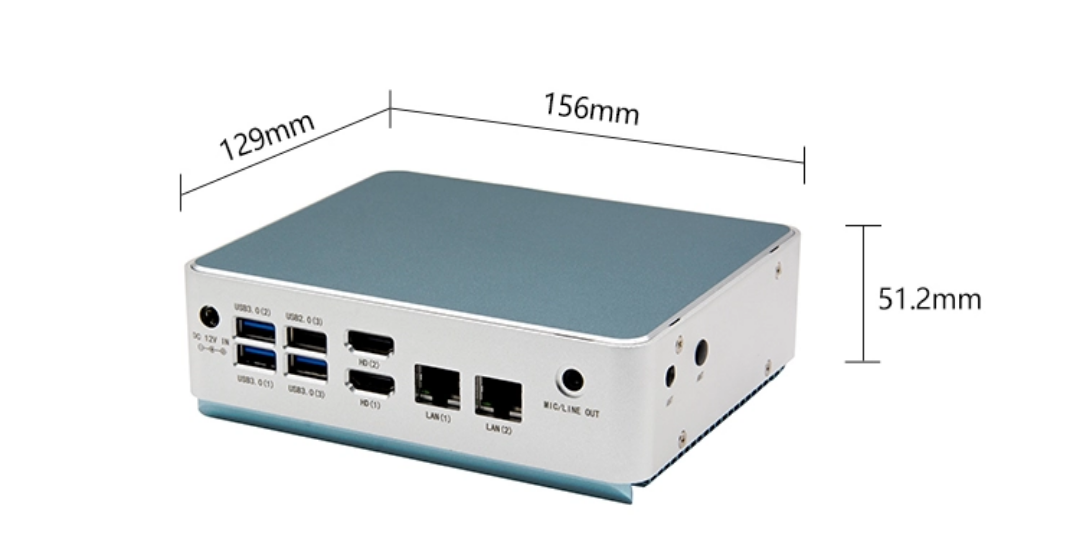

Size (LWH)

156*129*51.2MM

Weight(bare net)

0.85KG

Installation

Desktop/VESA (75*75)

Motherboard

CPU

Integrated Intel@ Pentuim J6426/2.0GHz Quad-Core Quad-Thread Processor,TDP 10W

Display

Integrated  Intel@UHD Graphics

RAM

2*DDR4SODIMM, support 3200MHz memory, maximum support 32GB

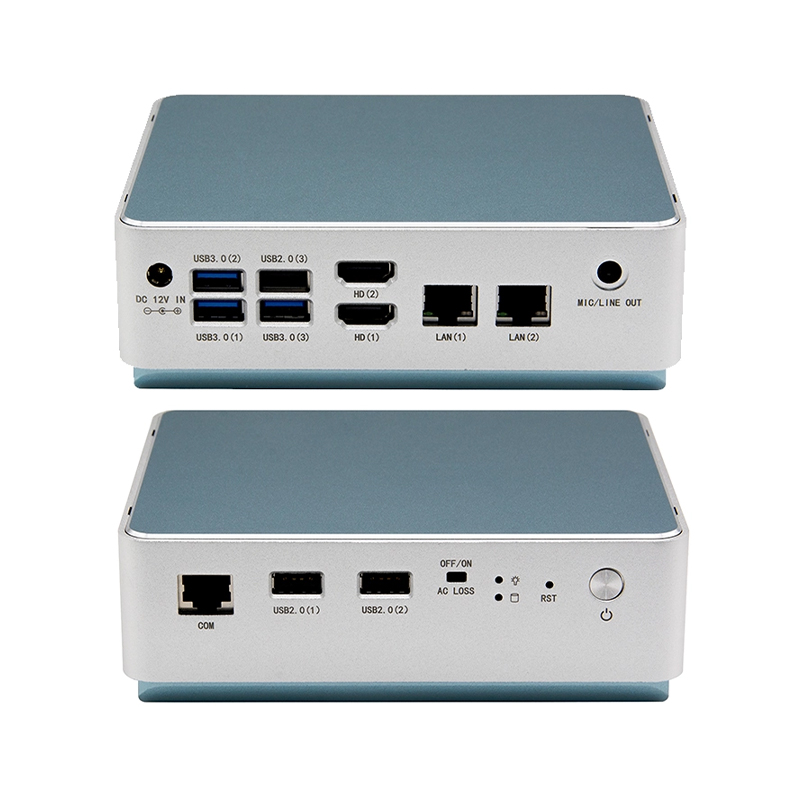

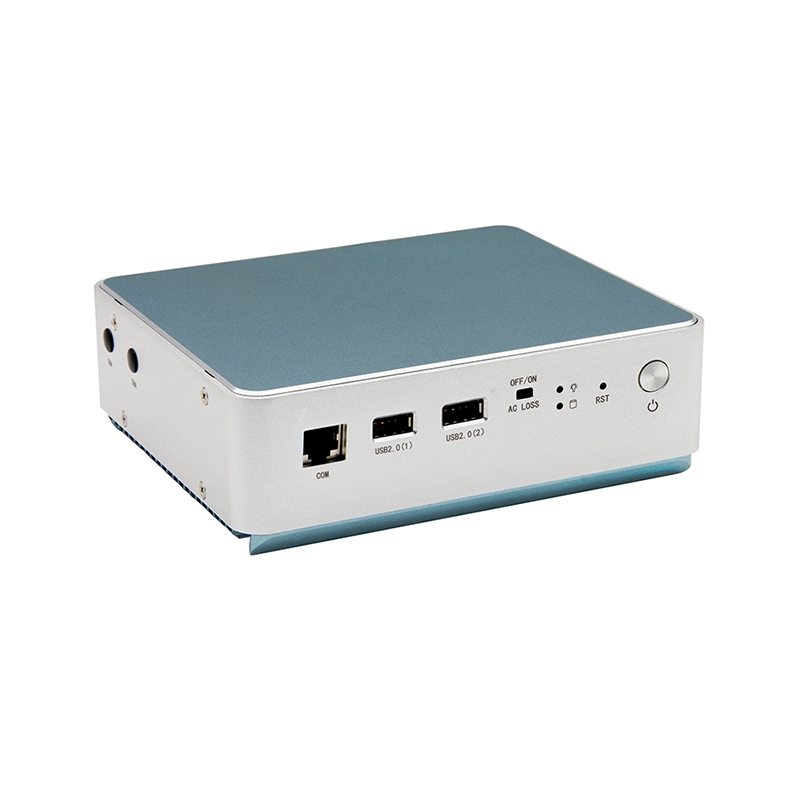

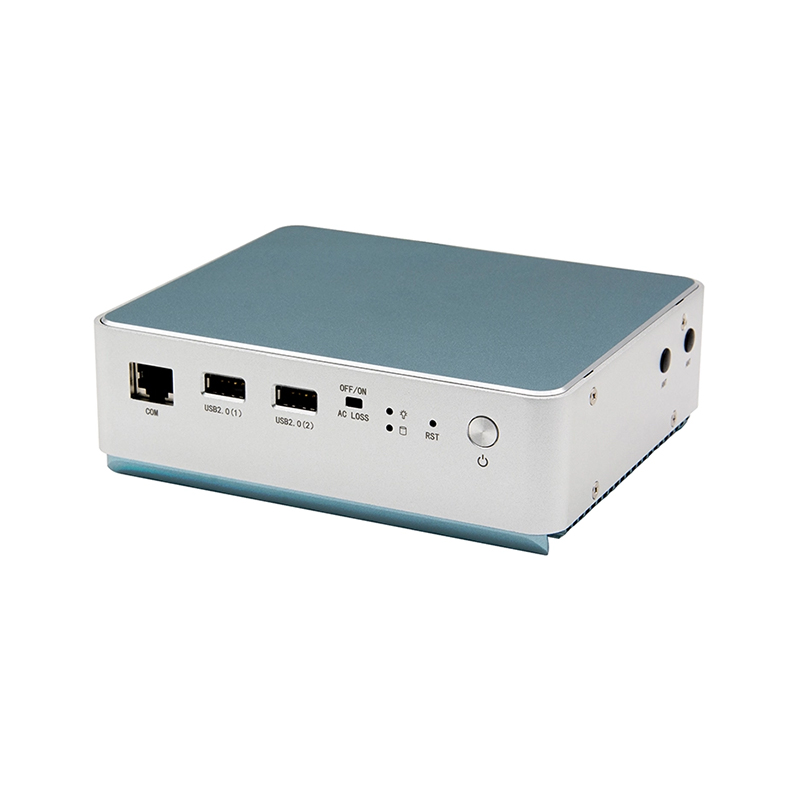

Front Panel Connectors

POWER

1*Power Switch, 1*Reset Switch,1*ACLOSS (Power On and Off DIP Switch)

LED

1*Power Indicator,1*Hard Drive Indicator

USB

2*USB2.0

Console

1*Consle Serial Port

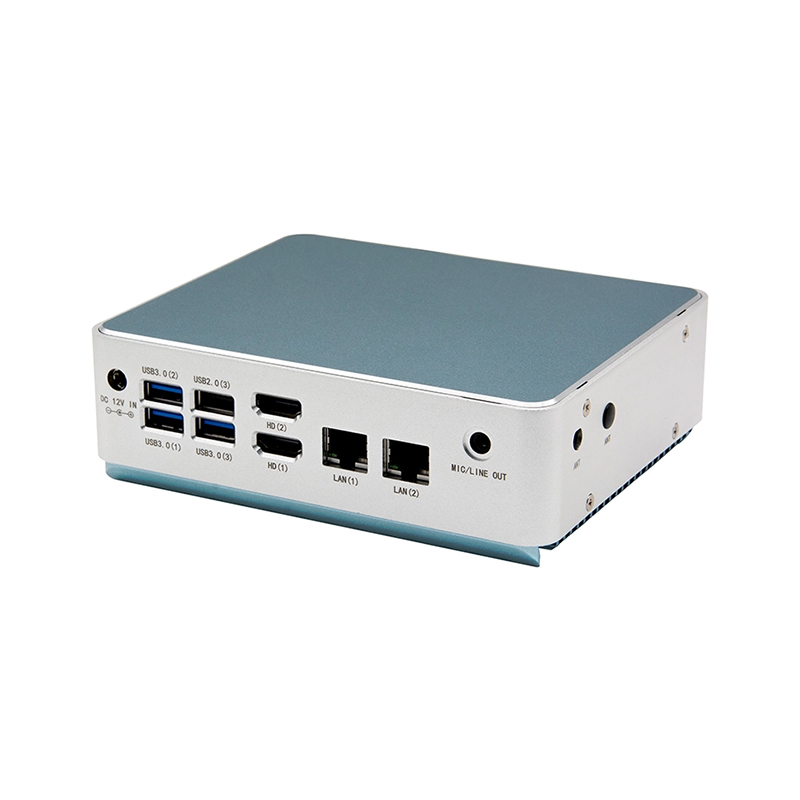

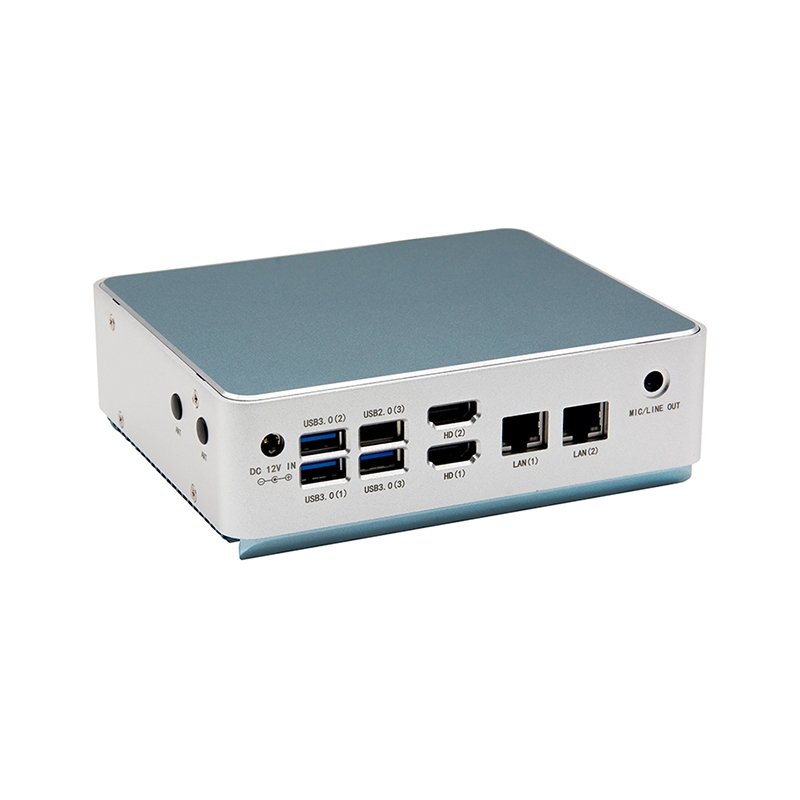

Rear Panel Interface

Display Interface

2*HDM11.4 (4096x2160@60Hz), support dual 4K

LAN

2*IntelI211 Gigabit power port, support Wake-on-LAN, PXE function

USB

1*USB2.0, 3*USB3.0

Audio

*Audio, Line out and MIC 2 in 1

Power  supply

1*DC 12V power input

Storage

M.2

1*M.2,  support Key-B, 2280, NVME PCIEx2 SSD

Expansion

Mini PCIE

1*Mini-PCIEslot, support WiFi or 4G

M.2

1*M.2, support Key-E, 2230, WiFi module

System Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function (256 levels, 0-255 seconds)

Power Requirements

Power supply type

External Power Adapter

Voltage Input

DC 12V

Power Output

AC To DC (depending on specific device)

Environments

Operating Temperature

-10℃~50℃

Storage Temperature

-20℃~70℃

Relative Humidity

5%-95% relative humidity, non-condensing

Operating Vibration

0.5g rms/5-500HZ/random/operating
