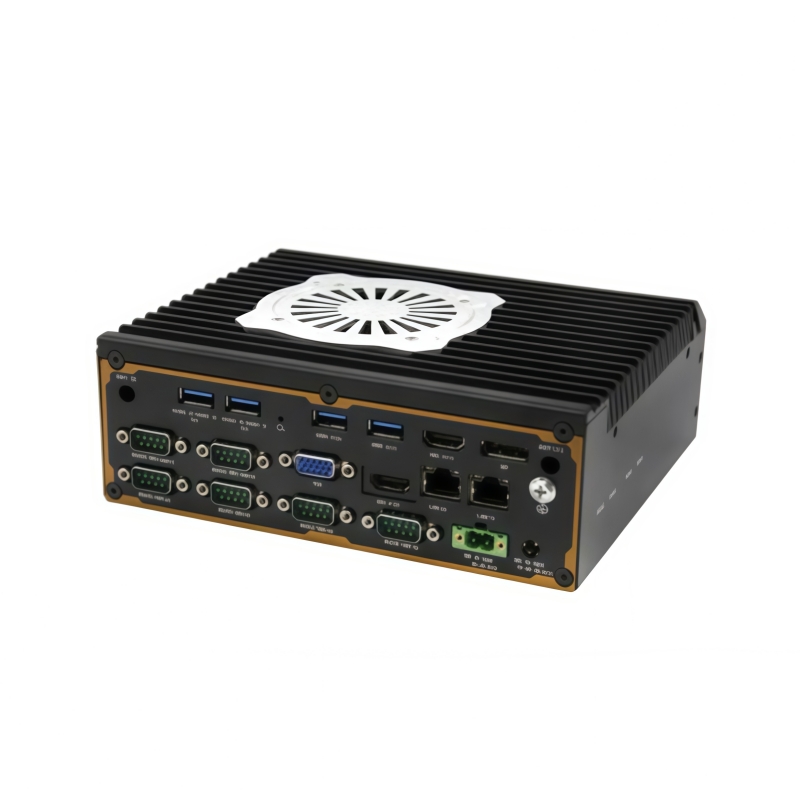

High Performance Industrial Control Host P6760F-C6 Black

Model

P6760F-C6 V2.0(1235U)

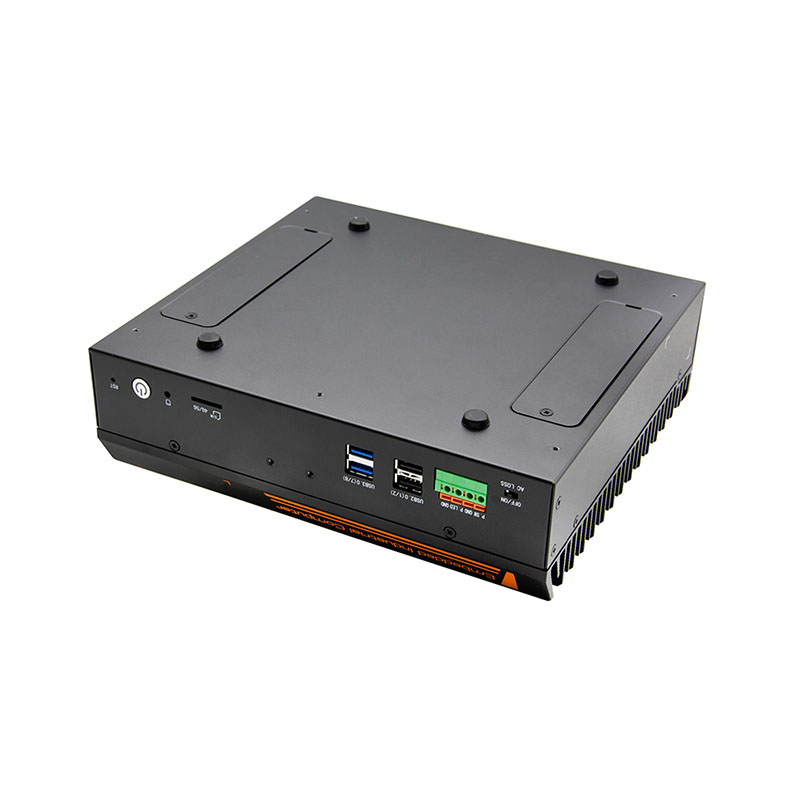

Chassis

Material/structure

Aluminium alloy + sheet metal, fan cooling

Colour

Black

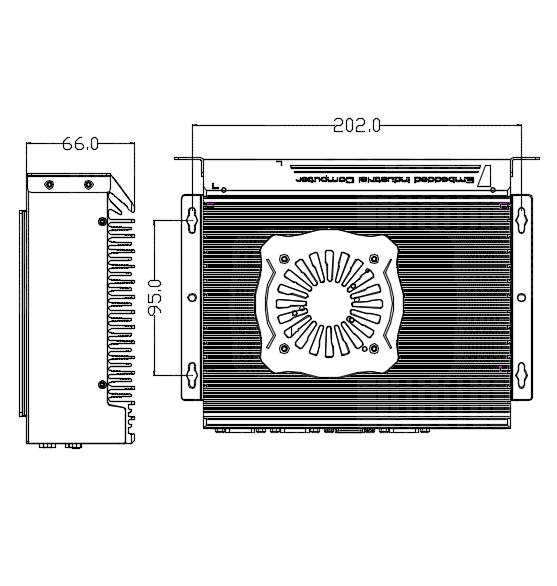

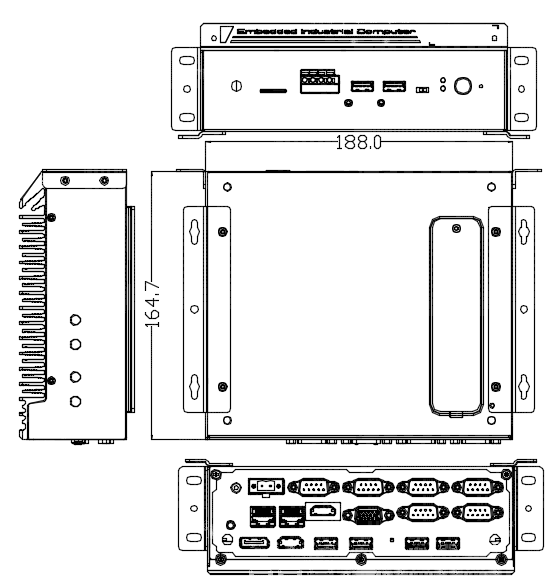

Size (LWH)

188*164.7*66MM

Weight (bare net)

1.6KG

Installation

Desktop/Wall Mount/DIN Rail(35mm)

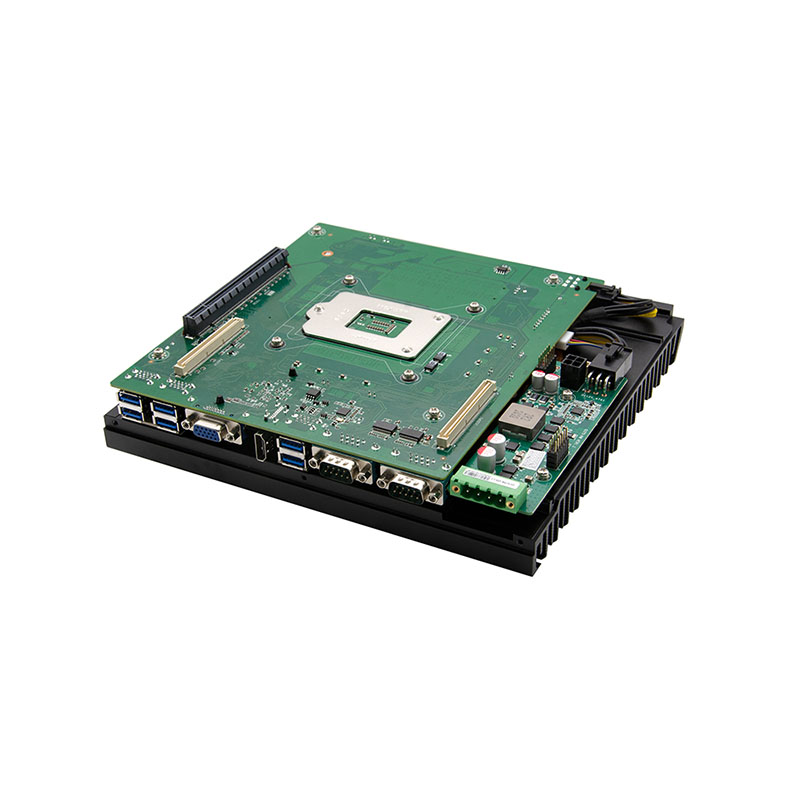

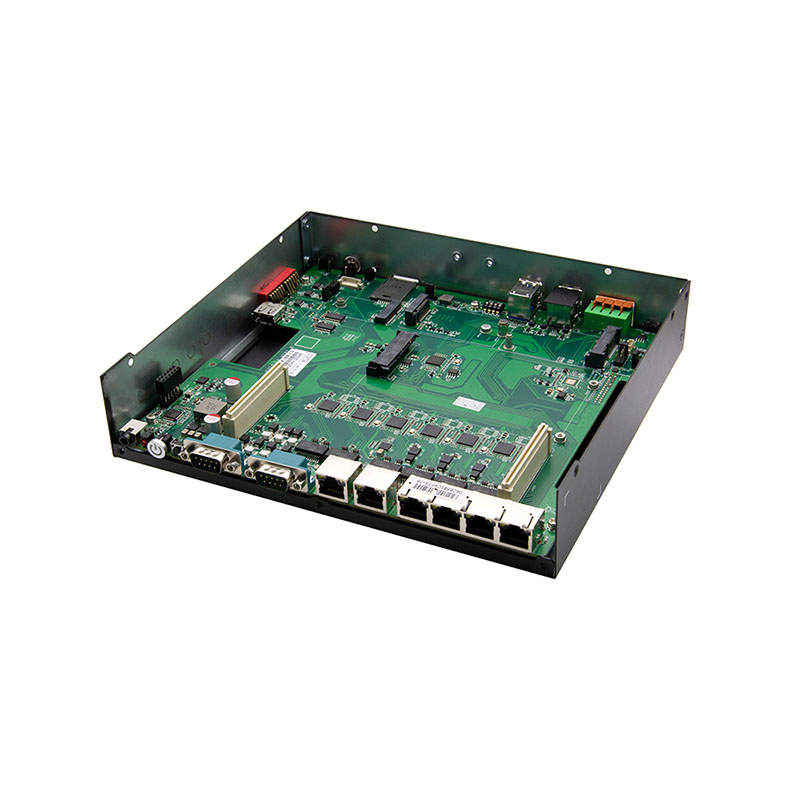

Motherboard

CPU

Intel® i5-1235U/1.3GHz, Turbo 4.4GHz, 10-core, 12-thread processor, TDP 15W

Display

Intel®Iris Xe Graphics eligible

Memory

2*SODIMM DDR4 3200MHz , supports up to 64GB

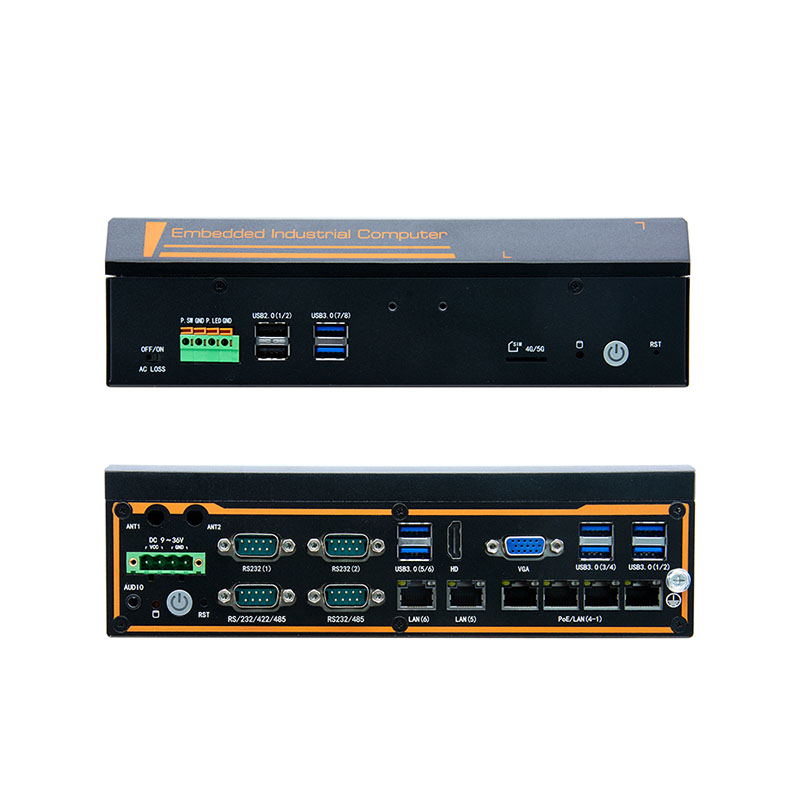

Front Panel Connectors

Switch

1*Boot Button, 1*One-Key Restore, 1*ACLOSS (Power-On DIP Switch)

LED

1*Power Indicator, 1*Hard Drive Indicator

USB

2*USB2.0

Audio

1*Audio, Line out&Mic 2-in-1

Phoenix Terminal

1*4P (1*power on signal/1*power indicator signal)

SIM

1*SIM standard card slot

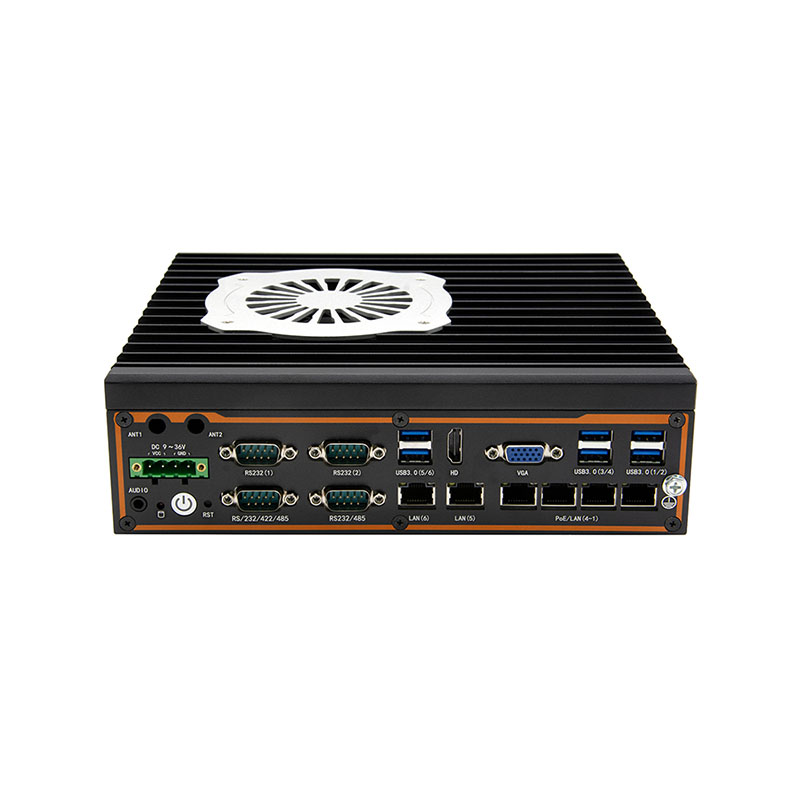

Rear Panel Interface

Switch

1*CMOS restore button

Display Interface

2*HDMI2.0(4096*2304@60Hz), 1*DP1.4(4096*2304@60Hz), 1*VGA, support for four display

COM

6*RS232/485 DB9 serial port; COM1~2 can support CAN (need to load CAN module)

LAN

2*Intel I210AT Gigabit power port

USB

4*USB3.0 (the number of USB3.0 according to the motherboard)

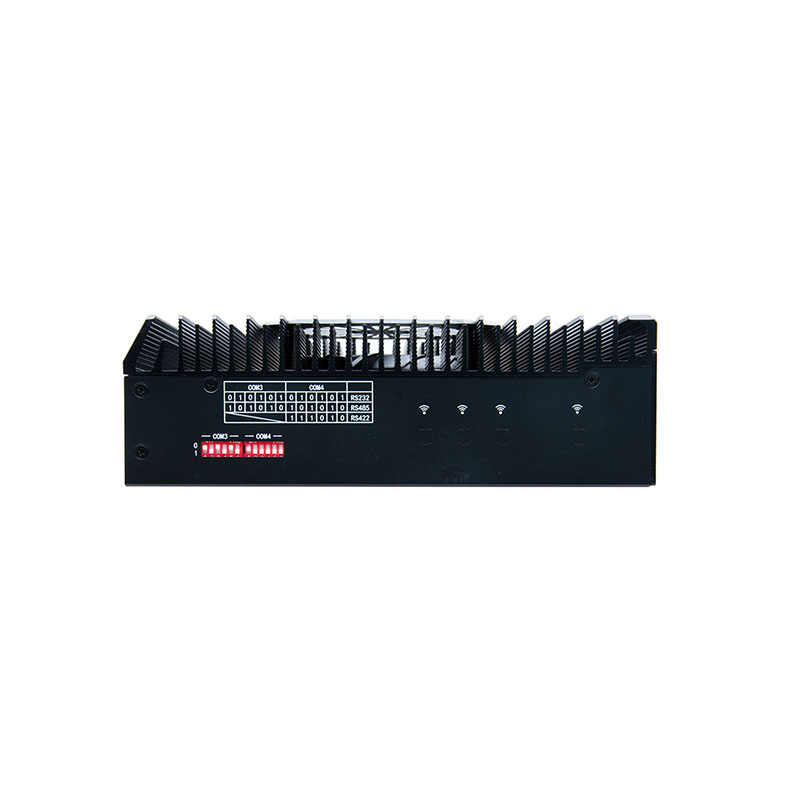

DIP Switches

6 sets of 6-digit dip switches, RS232/485 switching (dip switches are located at the bottom of the chassis)

Power Interface

1*DC interface or 1*2P P=5.08mm Phoenix terminal, support DC 9~36V wide voltage power input

Storage

SATA

1*2.5-inch hard drive bay

MSATA

1*MSATA

M.2

1*M.2/SSD, support Key-M, 2280, NVME PCIE x4 SSD

Expansion

MINIPCIE

1*MINIPCIE, support WiFi+BT or 4G module or CAN module

System Support

Microsoft

Windows 10

Linux

Linux

 Power Supply Type

Power supply type

External Power Adapter

Voltage input

DC 9-36V wide voltage

Power output

AC TO DC 90W

Environment

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity, non-condensing

Operating Vibration

0.5g rms/5-500HZ/random/operating
