High Performance Industrial Control Host G3750F-L6 V2.0

Model

G3750F-L6 V2.0(G250)

Chassis

Material/structure

Aluminium alloy + sheet metal material Fan cooling

Colour

Black+Silver

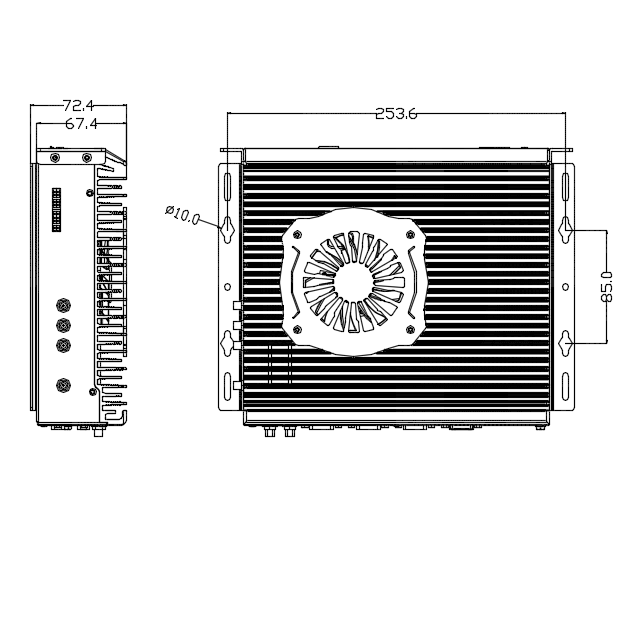

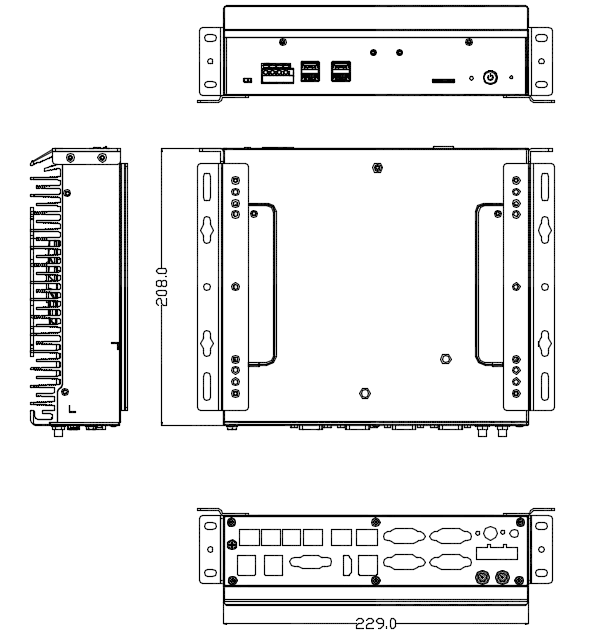

Size (LWH)

229*208*67.4MM

Weight (bare net)

3.5KG

Installation

Desktop/Embedded/DIN rail(35mm)

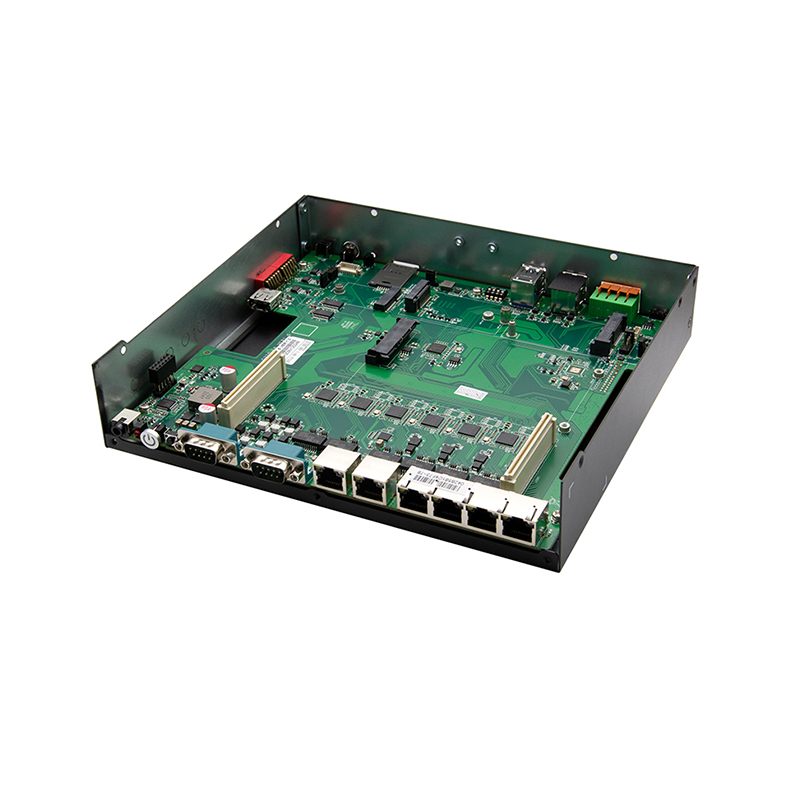

Motherboard

CPU

Intel®LGA1151 /6~9 Generation Processor Series

Chipset

Intel®Q250

Memory

2*SODDR4, supports up to 64GB

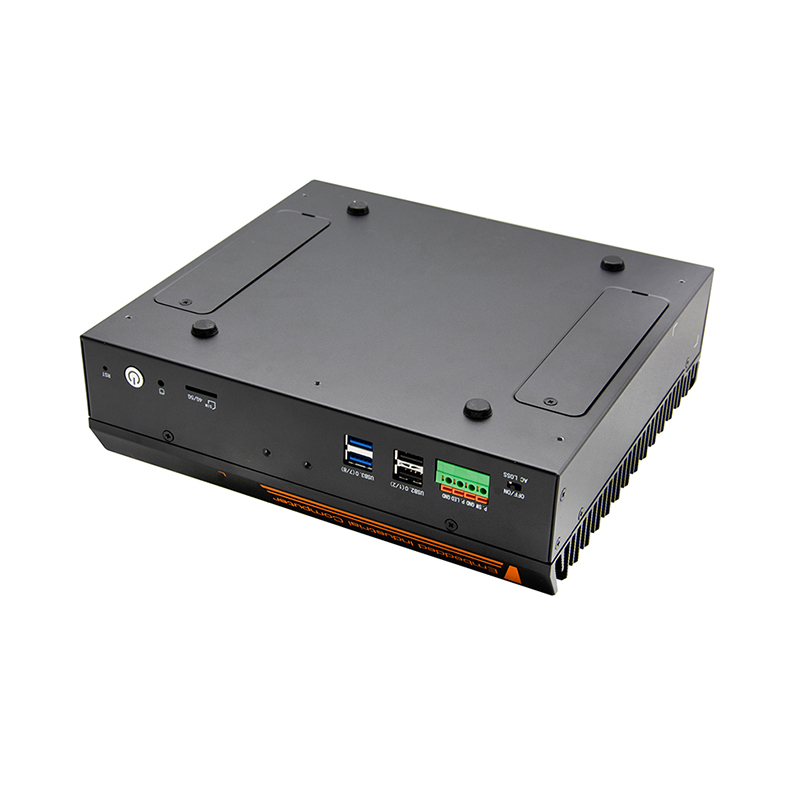

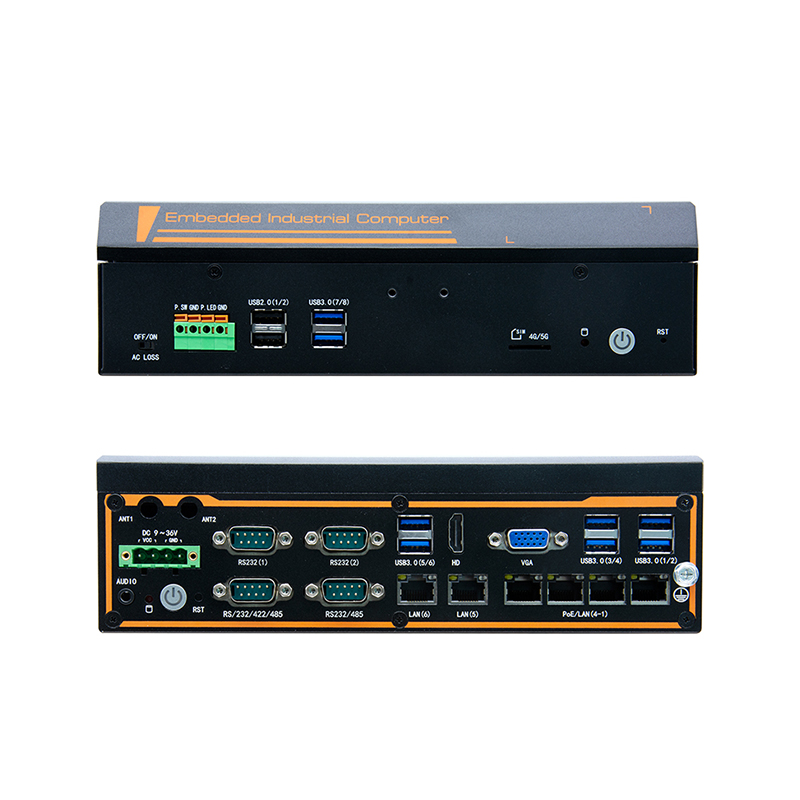

Front Panel Connectors

Switch

1*Boot Button with Indicator Light, 1*One-Key Restore, 1*ACLOSS (Power-On DIP Switch)

LED

1*Hard Drive Indicator

USB

2*USB3.0, 2*USB2.0, built-in 1*USB2.0

Phoenix Terminal

1*4P Phoenix terminal (1*power indicator signal, 1*power switch signal)

SIM

1*SIM standard card slot

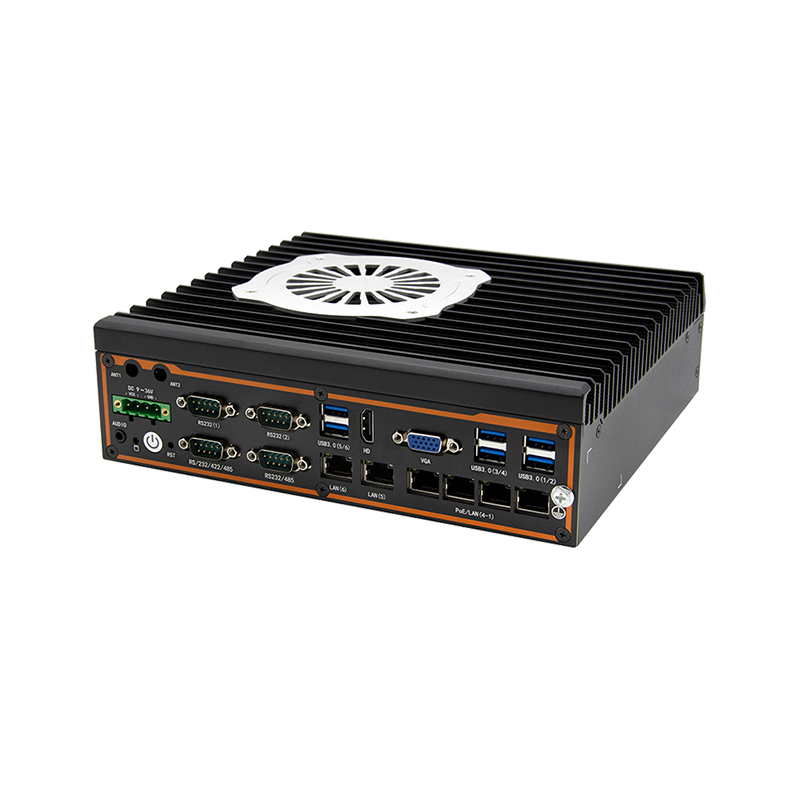

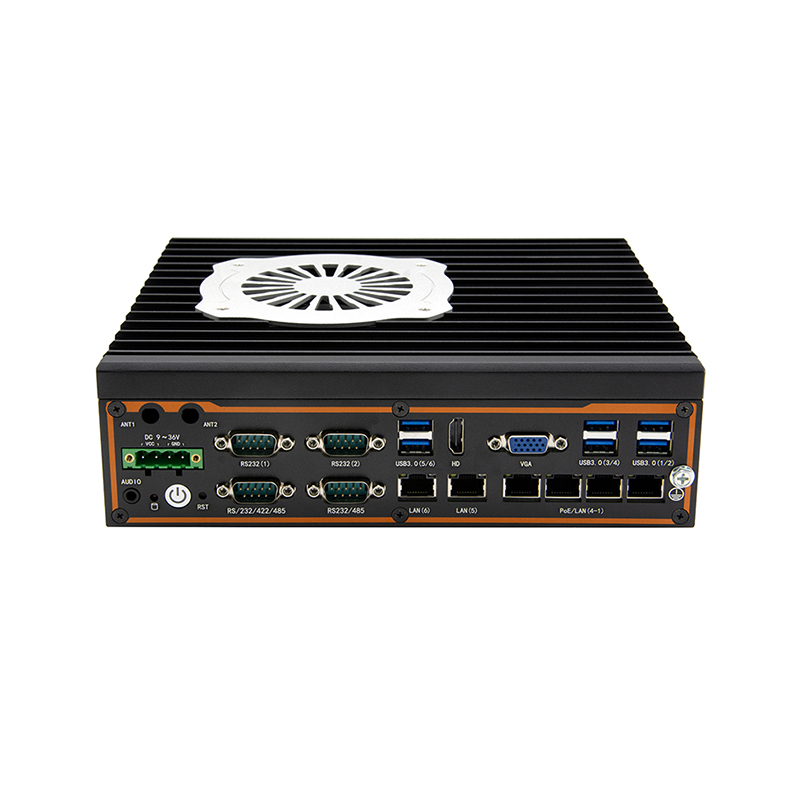

Rear Panel Interface

Switch

1*Boot button with indicator, 1*One-Key Restore

LED

1*Hard Drive Indicator

Display Interface

1*VGA(1920*1200@60Hz), 1*HDMI1.4, support dual display

USB

6*USB3.0

COM

4*RS232 DB9 serial port, COM3 support RS232/485, COM4 support RS232/422/485

LAN

6*Intel I210AT Gigabit ports, 4 of which support POE

AUDIO

1*Audio, Line out and MIC 2-in-1

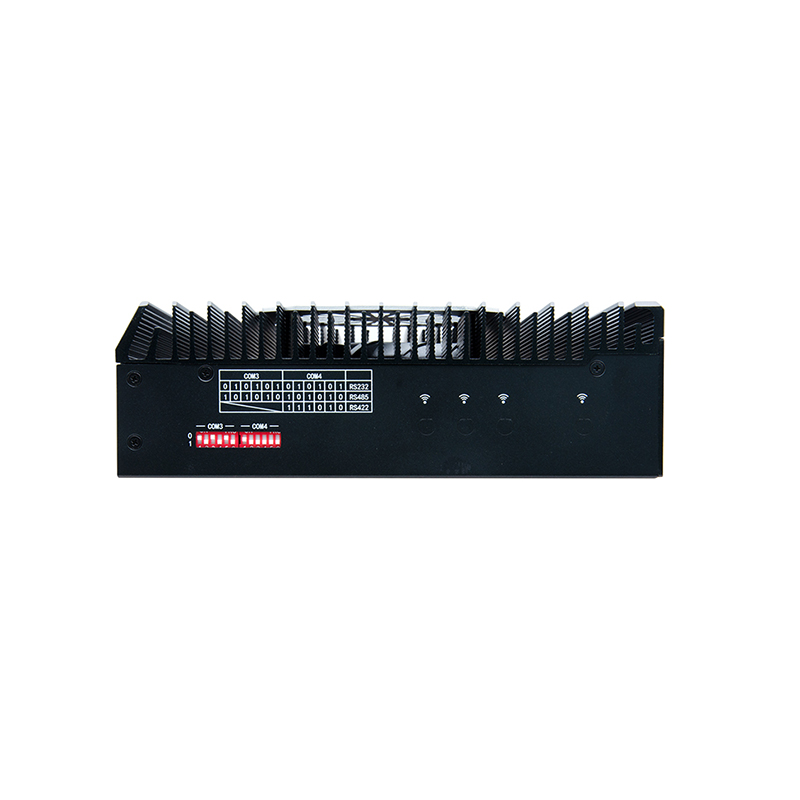

DIP Switch

2 sets of 6-digit dip switches, RS232/422/485 switching through the dip switches + jump caps + BIOS settings

Power connector

1*4P P=5.08mm Phoenix terminal, support 9~36V wide voltage input

Storage

SATA

1*2.5-inch hard drive bay (IO board side)

MSATA

1*MSATA (IO board side)

SSD

1*M.2/SSD, support Key-M, 2280, NVME PCIEx4 SSD (motherboard side)

Expansion

WiFi

1*M.2i, support Key-E, 2230, WiFi module

5G

1*M.2, Key-B support, 3042/3052, 5G module

System Support

Microsoft

Windows 10

Linux

Linux

Power Supply Type

Power Type

External Power Adapter

Input

Voltage Input

DC 9-36V wide voltage, max load 220W

Power Output

AC TO DC 120W or more (depending on specific equipment)

Environment

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity, non-condensing

Operating Vibration

0.5g rms/5-500HZ/random/operating
