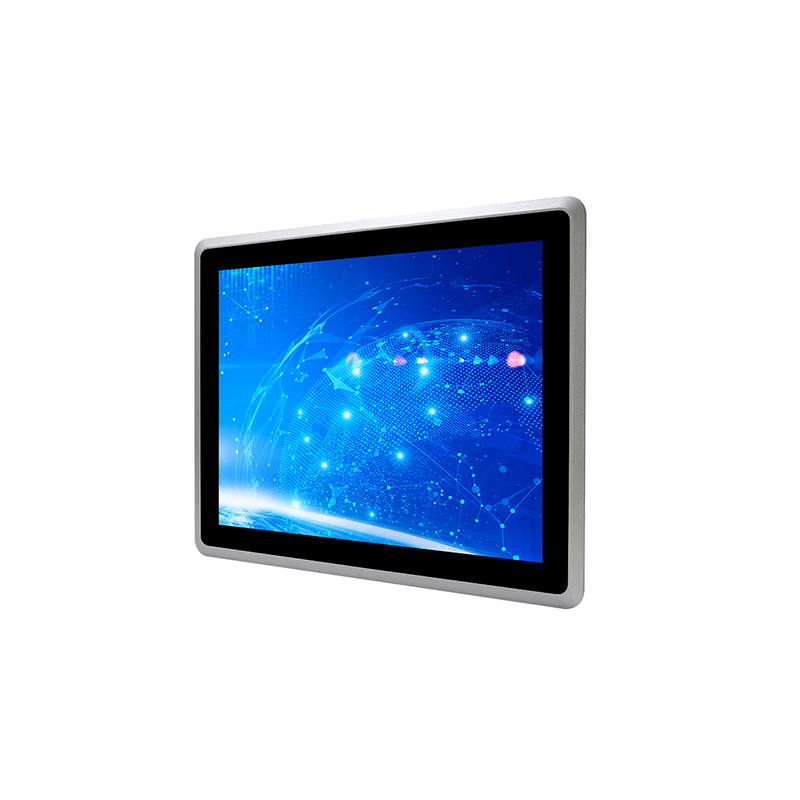

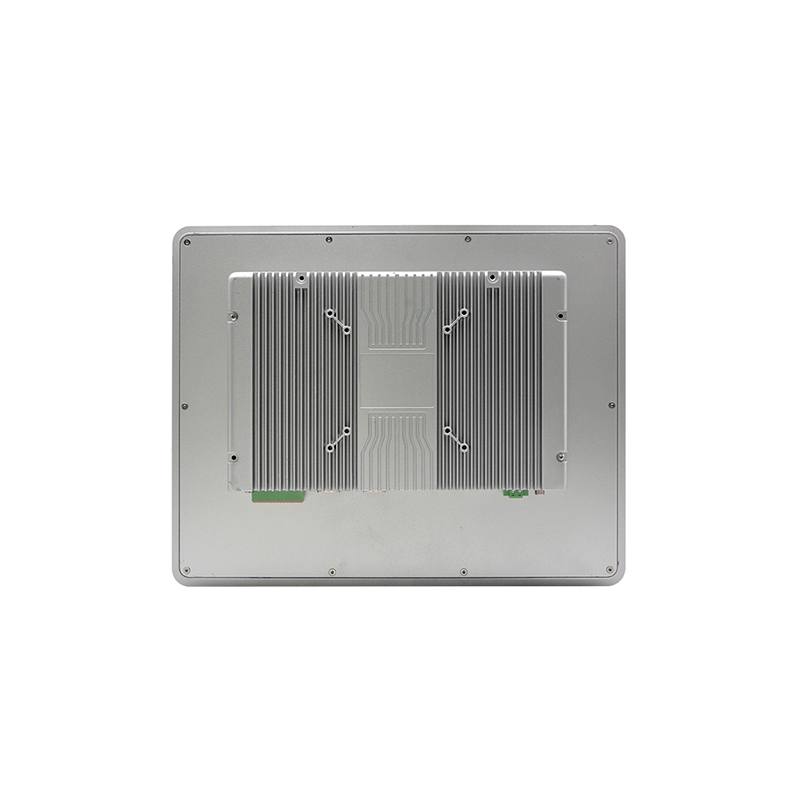

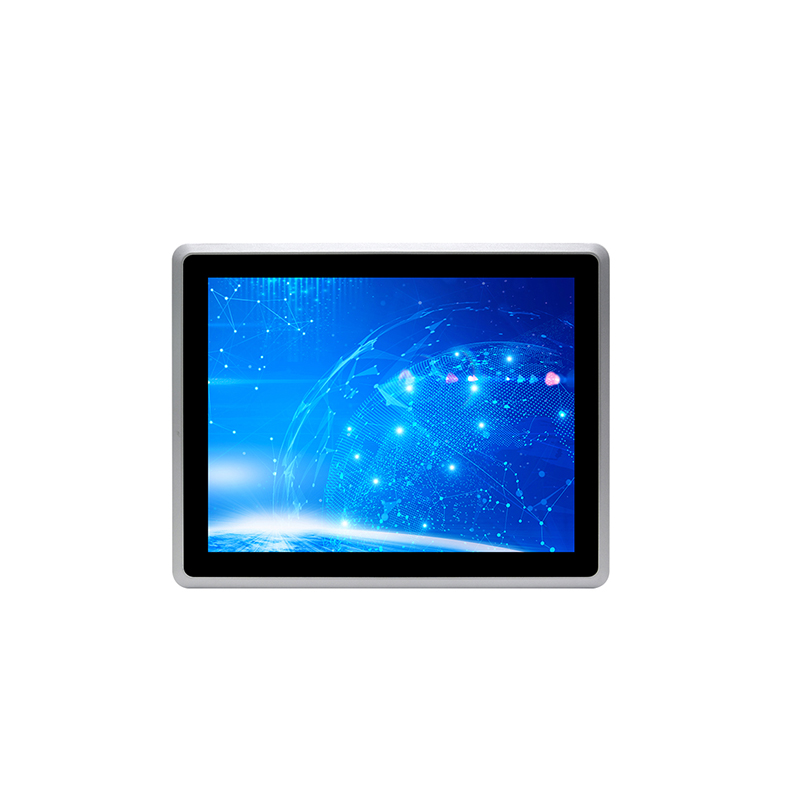

15-Inch Industrial Panel Computer

Model No.

P1571Y-C6 V1.0(J6412)

Chassis

Material/Structure

Aluminum case, fanless design

Color

Silver

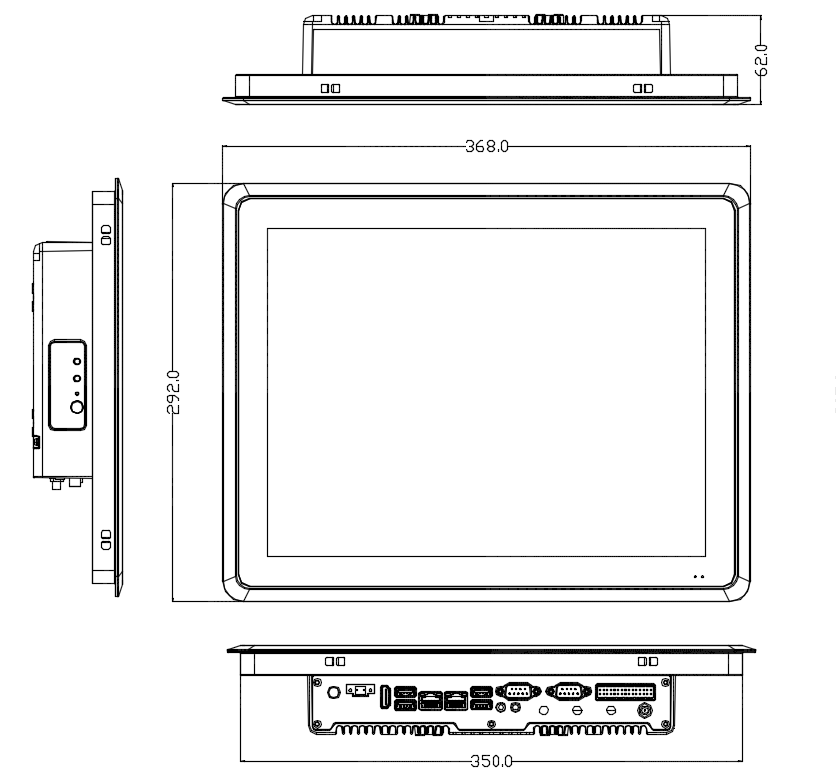

Dimension

L368*W292*H62mm

Net Weight

3.8KG

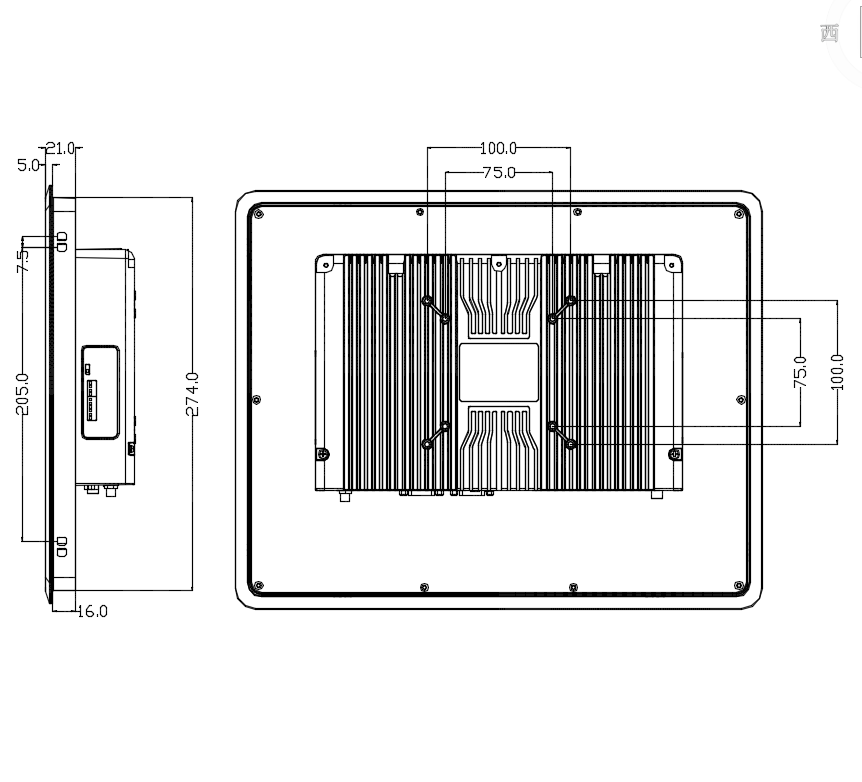

Installation

VESA mount / embedded

LCD Screen

Type

15” LCD

Resolution

1024 * 768

Luminance

350 cd/m²

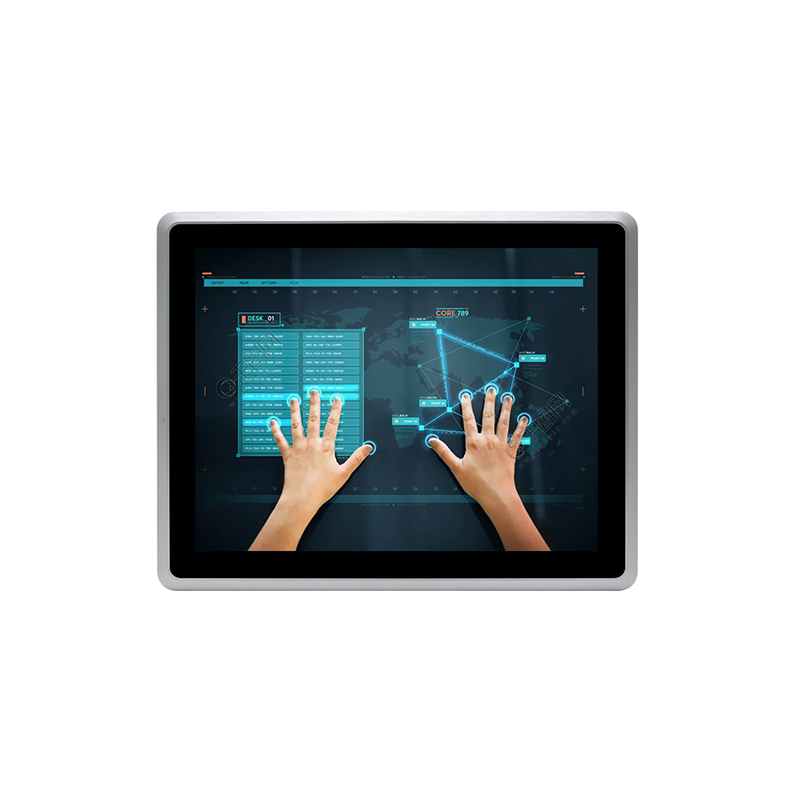

Touch Screen

Type

Capacitive，10 point touch

Light Transmission

>86%

Mainboard

CPU

Onboard Intel®Celeron J6412/2.00GHz quad core 4-thread processor, TDP 10W

Graphics

Integrated Intel® UHD Graphics

Memory

2*DDR4  SODIMM 2400MHz RAM slot, up to 32GB

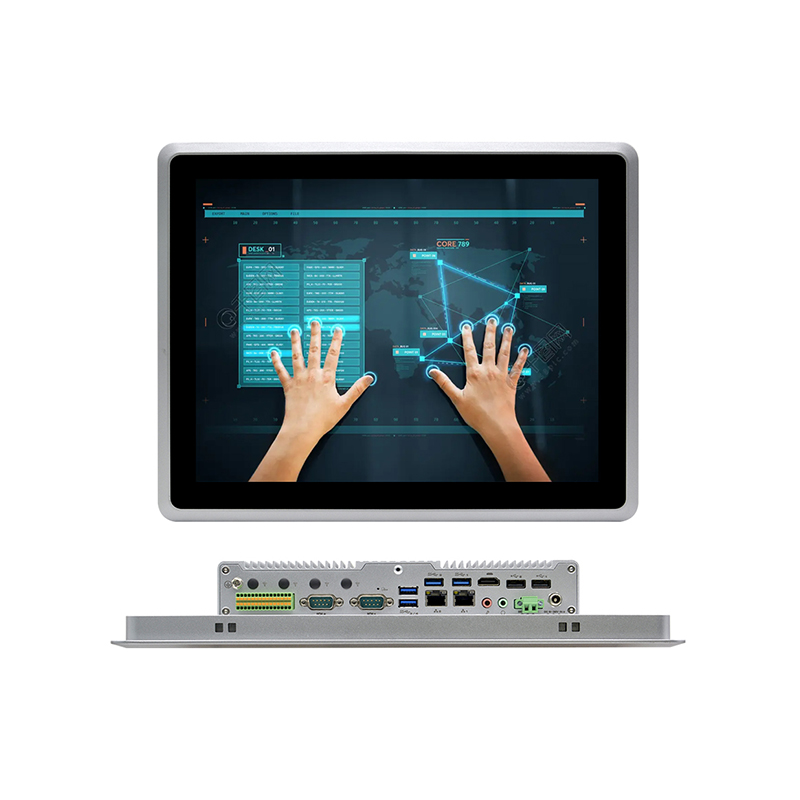

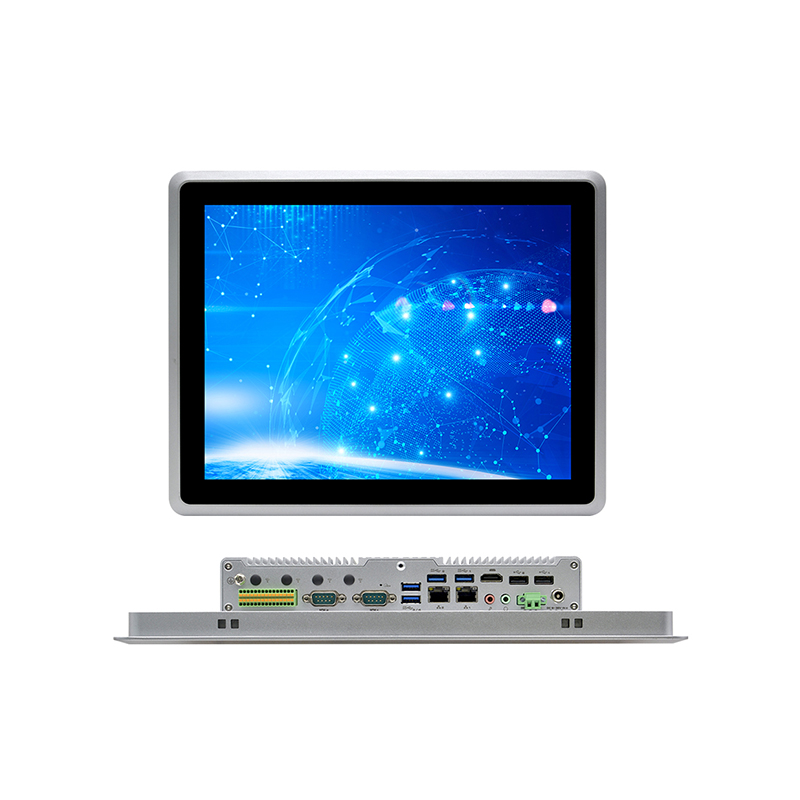

IO Port

POWER

1*Power button，1* One-key restore，1*AC LOSS（auto power ON/OFF）1*CMOS button

LED

1*Power LED, 1* HDD LED

Display

1*HDMI(4096*2160@60Hz)

LAN

2*Intel I210 Gigabit Ethernet, support Wake On LAN、PXE

USB

4*USB3.0，2*USB2.0

COM

6*RS232，COM1~2 DB9 RS232，COM2 RS485/422，COM3-6 RS232 on 2*15pin Phoenix connector，COM3 support RS485，COM1-2 support pin9 charged function

Phoenix Connector

2*15Pin （4-in 4-out GPIO，power signal, COM3~COM6，5V VCC and GND)

DIP switch

10-digit dip switch for COM2~3 RS232/RS485 select，COM2 RS422 via COM2_SW1 jumper

Audio

1*Line out，1*MIC

Power

DC9~36V power input, 1*DC aviation port, 1*2Pin Phoenix connector

Storage

SATA

1*2.5” hard disk port

M.2

1*M.2 SSD port，support Key-M，2280，NVME PCIEx4 SSD

MSATA

1*MSATA SSD port

Expansion

M.2

1*M.2/WiFi，support Key-E，2230，WiFi module

1*M.2/5G，support Key-B，2242/52，5G module

OS Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function (L256, 0~255 seconds)

Power Supply

Power Type

External power supply

Voltage Input

9V~36V

Rate Consumption

60W~180W

Environment

Operating Temp.

-10℃～50℃

Storage Temp.

-20℃～70℃

Relative Humidity

5%-95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random/operating
