Industrial-Grade NUC Microcomputer

Model

N5150Z V2.0(N100)

Chassis

Material/structure

All aluminium alloy, fanless cooling structure

Colour

Iron grey

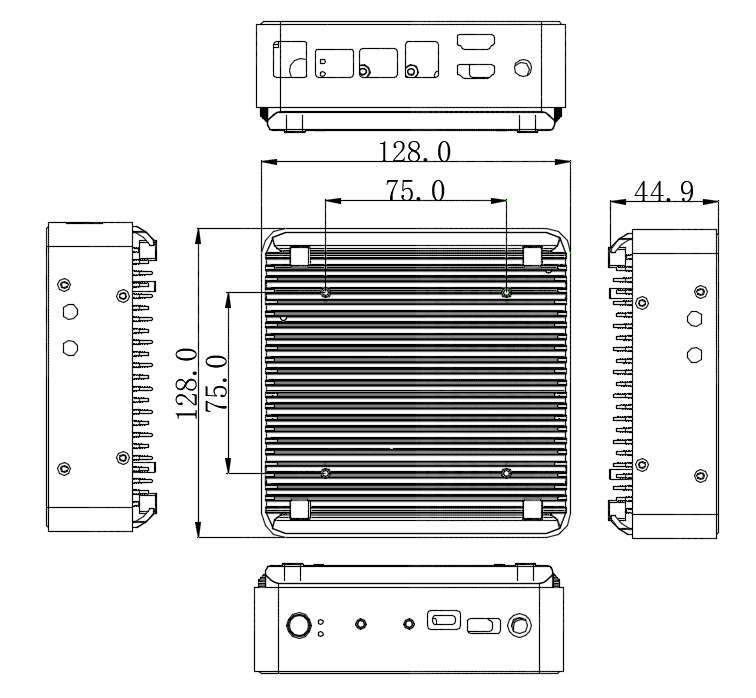

Size (LWH)

128*128*45MM

Weight (bare net)

0.65KG

Installation

Desktop/Wall Mount/VESA(75*75)

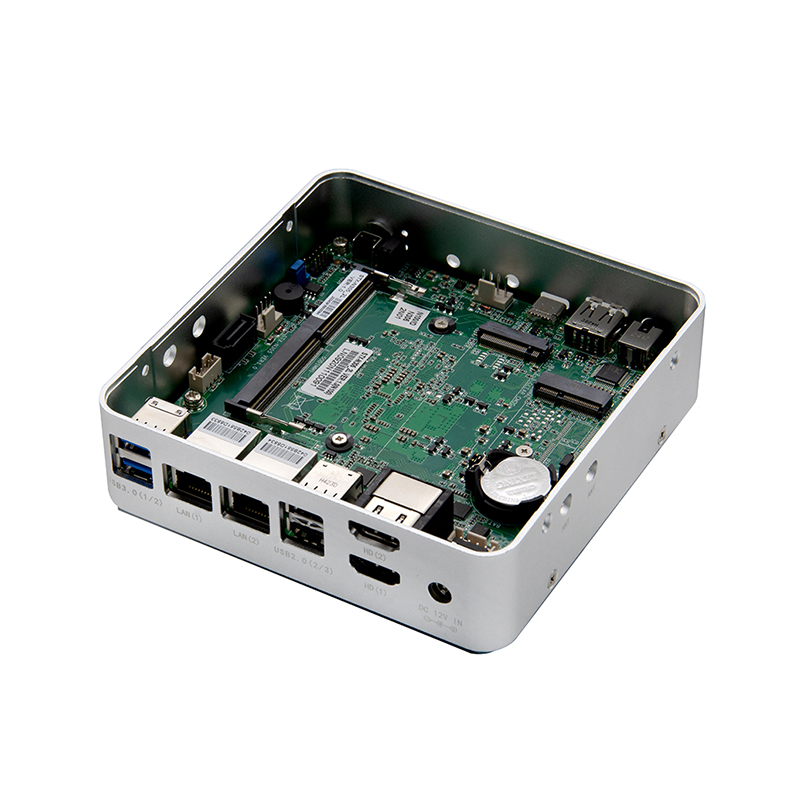

Motherboard

CPU

Integrated 12th Generation Intel® Alder Lake-N N100/0.8~3.4GHz, Quad Core Quad Thread Processor, TDP 6W

Display

Integrated Intel® UHD Graphics

RAM

1*DDR4 SODIMM 3200MHz memory, supports up to 16GB

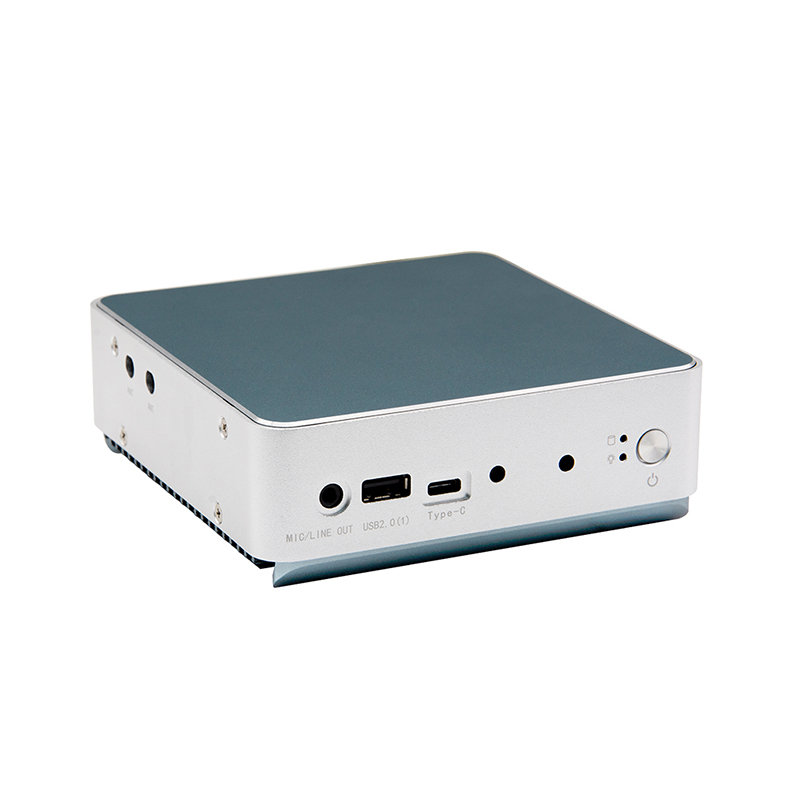

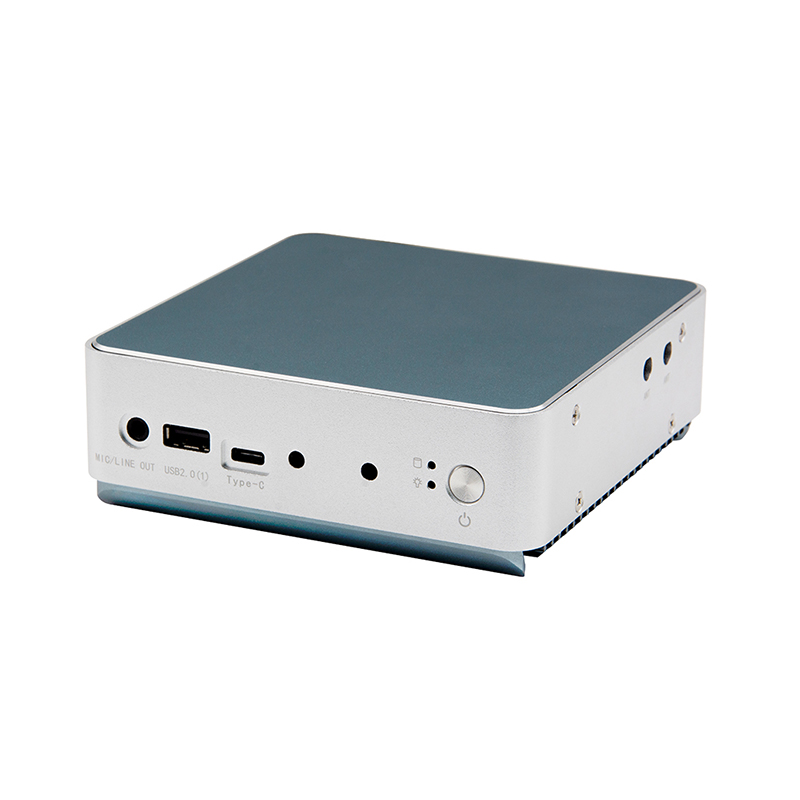

Front Panel Connectors

POWER

1*Power Switch

LED

1*Power Indicator, 1*Hard Drive Indicator

USB

1*USB2.0, 1*Type-C (5Gbps)

AUDIO

1*Audio, Line out& Mic 2-in-1

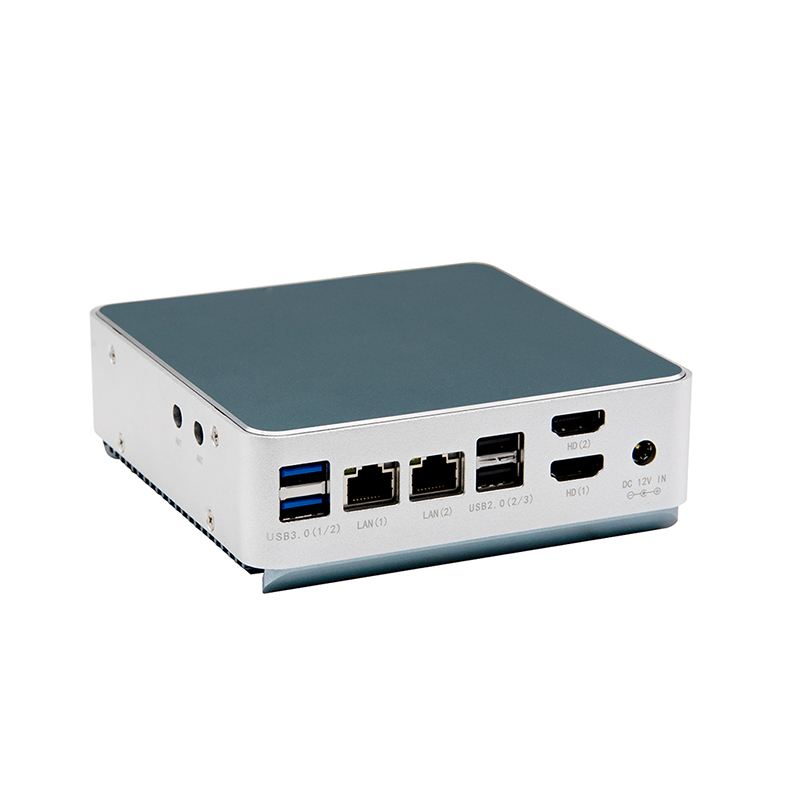

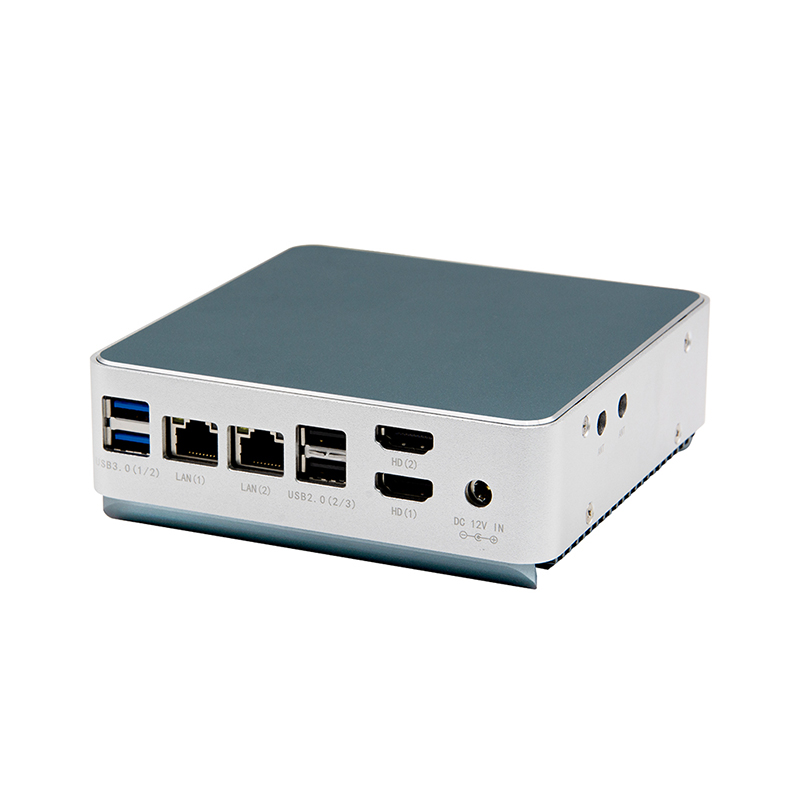

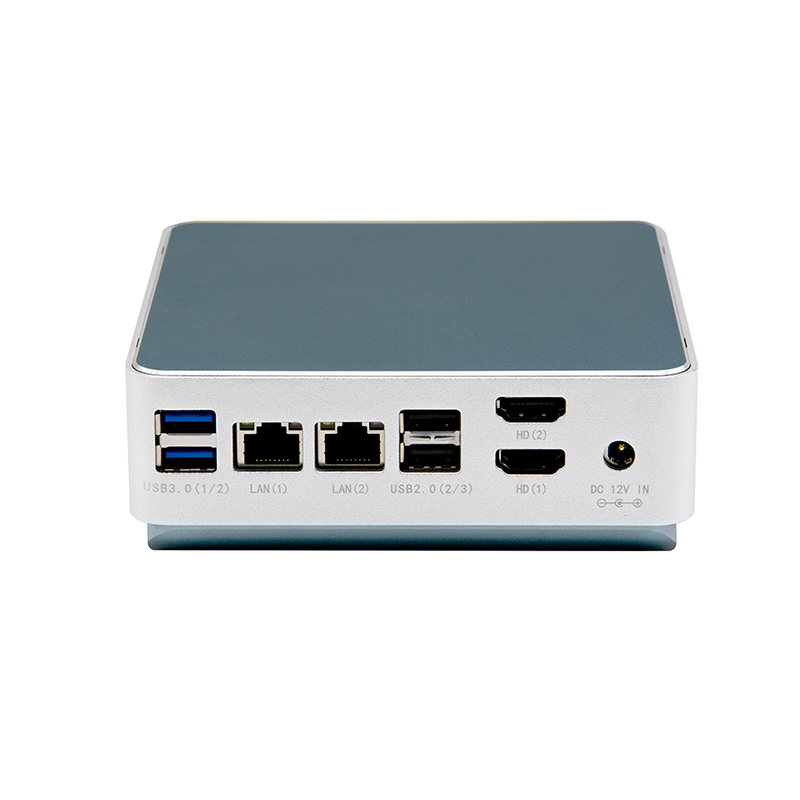

Rear Panel Interface

Display Interface

2*HDMI2.0(4096*2160@60Hz), support dual 4K/60Hz

LAN

2*RTL8111H Gigabit LAN card, support Wake on LAN, PXE function

USB

2*USB2.0, 2*USB3.0 (5Gbps)

Power supply

1*DC 12V power input

Storage

M.2

1*M.2, support Key-M, 2280, NVME PCIE x1/SATA adaptive SSDs

Expansion

WiFi

1*M.2, M.2 support, Key-E, 2230, WiFi module

System Support

Microsoft

Windows 10/11

Linux

Ubuntu

Watch Dog

Support hardware reset function (256 levels, 0~255 seconds)

Power Requirements

Power Type

External Power Adapter

Voltage Input

DC 12V

Power Output

AC TO DC 36W

Environments

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity, non-condensing

Operating Vibration

0.5g rms/5-500HZ/random/operating
