High-Performance Industrial PC

Model

G3290F-C6P3   V2.0(8300H)

Chassis

Material/Structure

Aluminium   alloy + sheet metal

Colour

Black +   silver

Dimensions   (L x W x H)

205 x   192.5 x 164.1 mm

Weight

4.2 kg

Installation

Desktop/Embedded

Motherboard

CPU

Integrated   Intel® i5-8300H/2.30 GHz quad-core eight-thread processor, TDP 45W

System   Chip

Intel   Z390

Memory

2x DDR4   2666MHz, supports up to 64GB

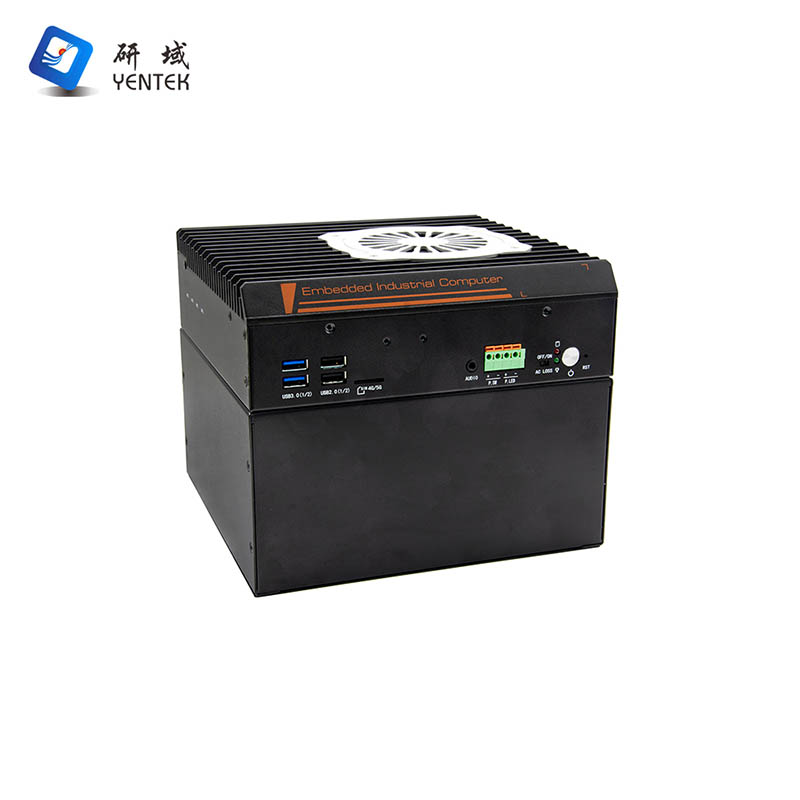

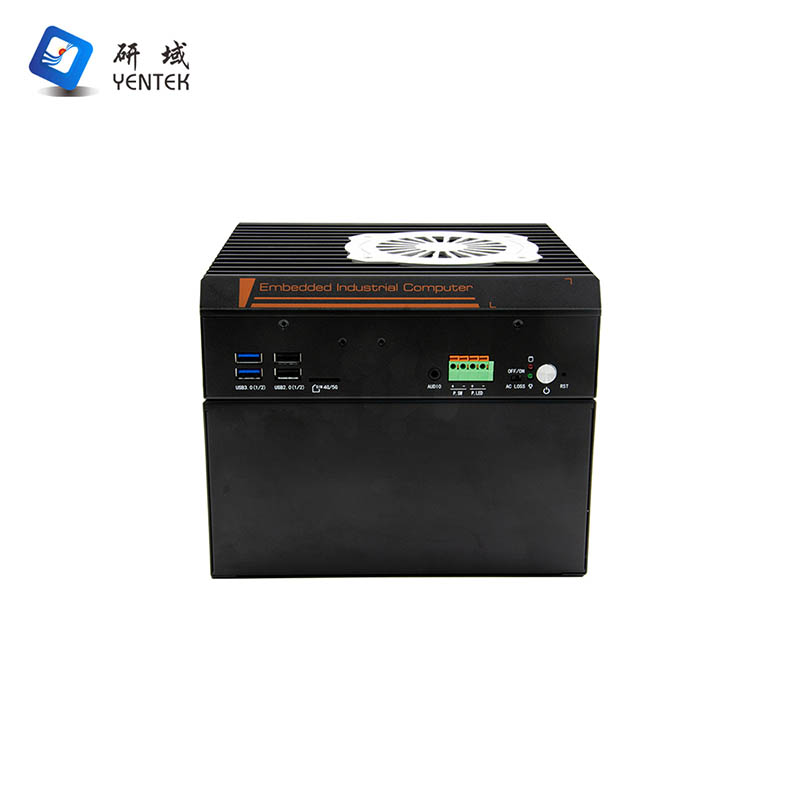

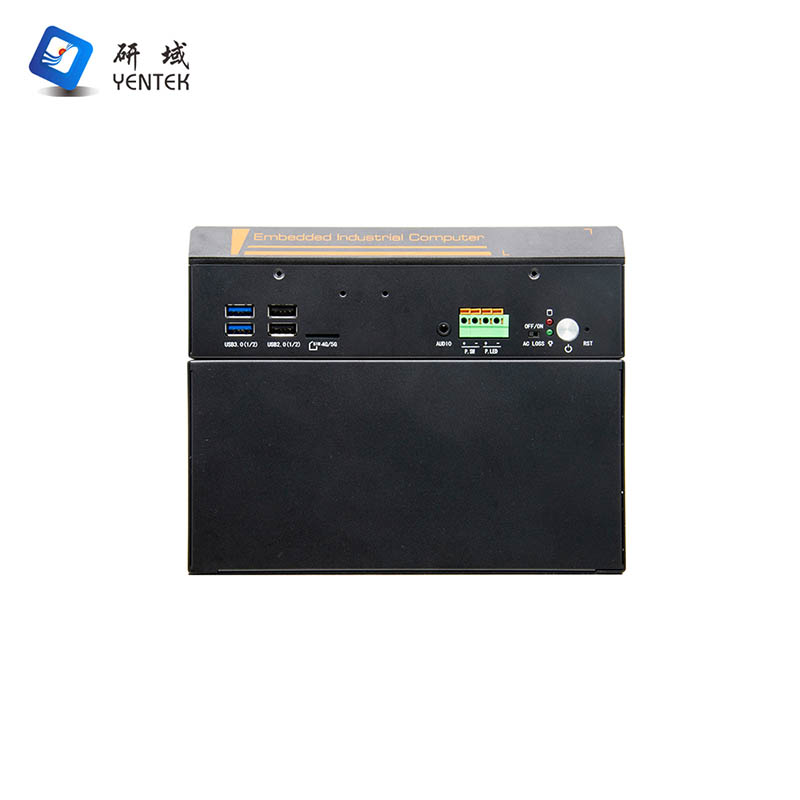

Front   panel interfaces

Switch

1x Power   button, 1x One-click restore, 1x ACLOSS (power-on boot dip switch)

LED

1x Power   indicator light, 1x Hard drive indicator light

USB

2x USB   3.0, 2x USB 2.0, built-in 1x USB 2.0

Remote   Switch

1 x Power   switch, 1 x Power indicator light (located on the 1 x 4-pin Phoenix   connector)

Audio

1 x   Audio, Line out and MIC combo

SIM

1 x SIM   card slot

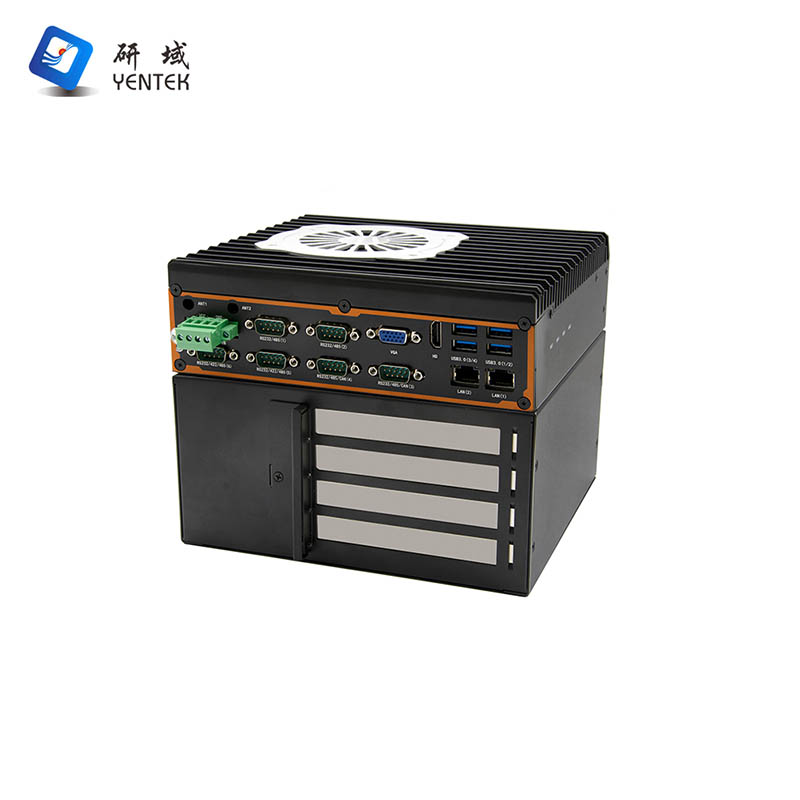

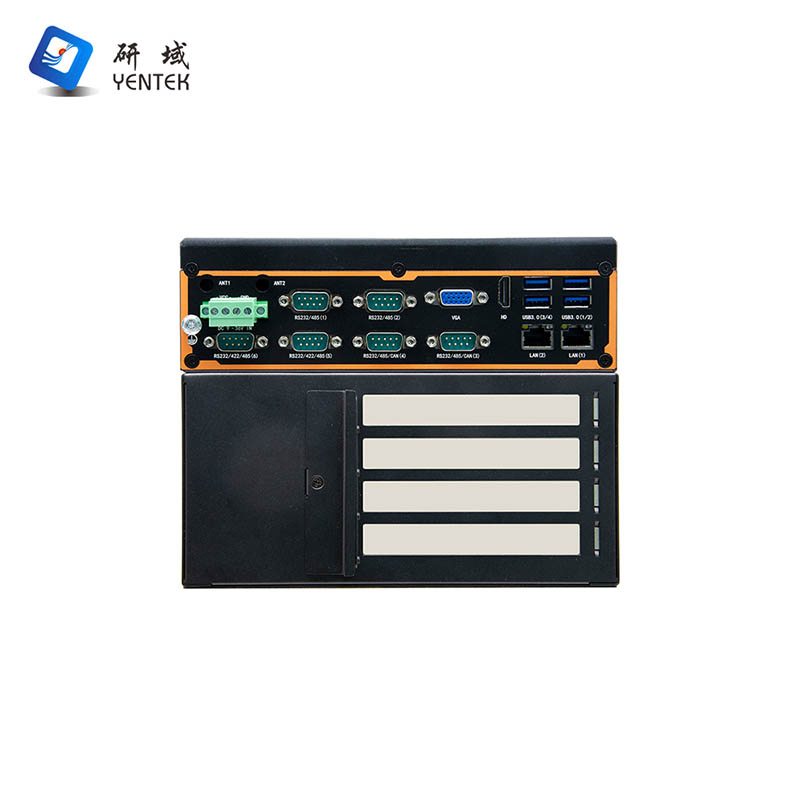

Rear   panel interfaces

Display   Interface

1 x VGA   (1920 x 1200 @ 60Hz), 1 x HDMI 1.4, supports dual display

USB

4 x USB   3.0

COM

6x   RS232/485 DB9 serial ports, COM5-6 support RS422, COM3-4 support CAN   functionality (requires CAN module)

LAN

2x Intel   I210AT Gigabit Ethernet ports

Power   Interface

1x 4P   (P=5.08mm) Phoenix connector, supports 9-36V wide voltage input

Storage

SATA

1x   2.5-inch hard drive bay

MSATA/SSD

1x M.2,   supports Key-M, 2280, NVMe PCIe SSD (except for the 3210M, other CPUs only   support M.2 SSD)

1x mSATA   (only for the 3210M)

Expansion

PCIE/PCI

1x PCIe   x16 (x8 signal)

3x   PCI

WiFi

1x Mini   PCIe, supports Wi-Fi

WiFi

1x M.2,   supports Key-E, 2230, WiFi module

5G

1x M.2,   supports Key-B, 3042/3052, 5G module

Power   supply type

Voltage   Input

DC 9V to   36V wide voltage range

Power   Output

AC to DC   60W (depending on specific device)

Environment

Operating   Temperature

-10°C to   50°C

Storage   Temperature

-20°C to   70°C

Relative   Humidity

5% to 95%   relative humidity, no condensation

Vibration

0.5g   rms/5-500HZ/random
