High-Performance Industrial PC

Model

G3760F-L6E1   V2.0(G250)

Chassis

Material/structure

Aluminium   alloy + sheet metal material Fan cooling

Colour

Black

Dimensions   (LWH)

229*208.9*101.7MM

Weight   (bare net weight)

3.7KG

Installation

Desktop/Embedded/DIN   rail(35mm)

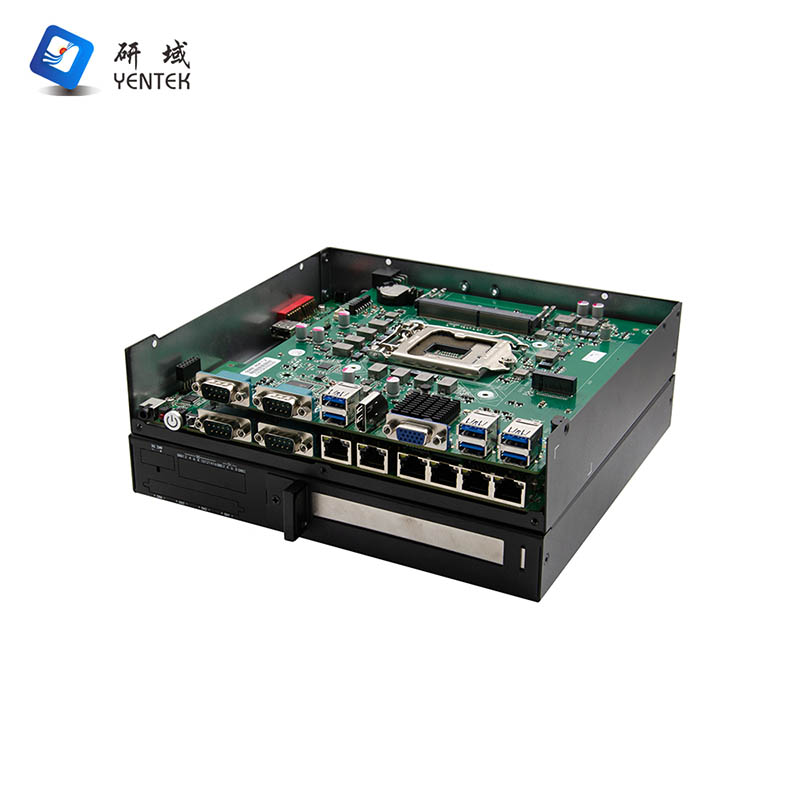

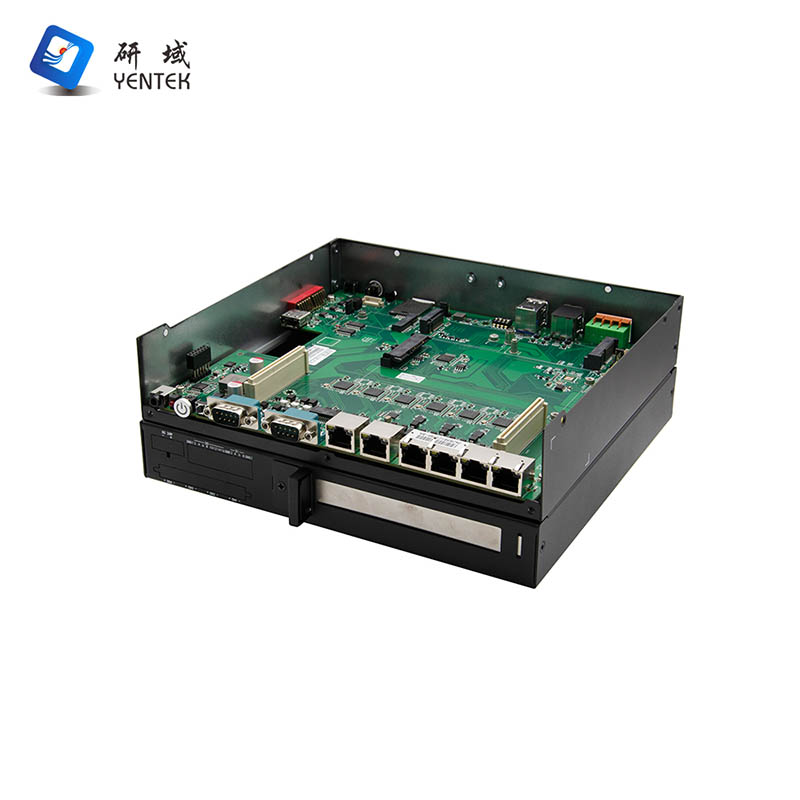

Motherboard

CPU

Intel®LGA1151   /6~9th Generation series processor

System-on-Chip

Intel®Q250

Memory

2*SODDR4,   max. support 64GB

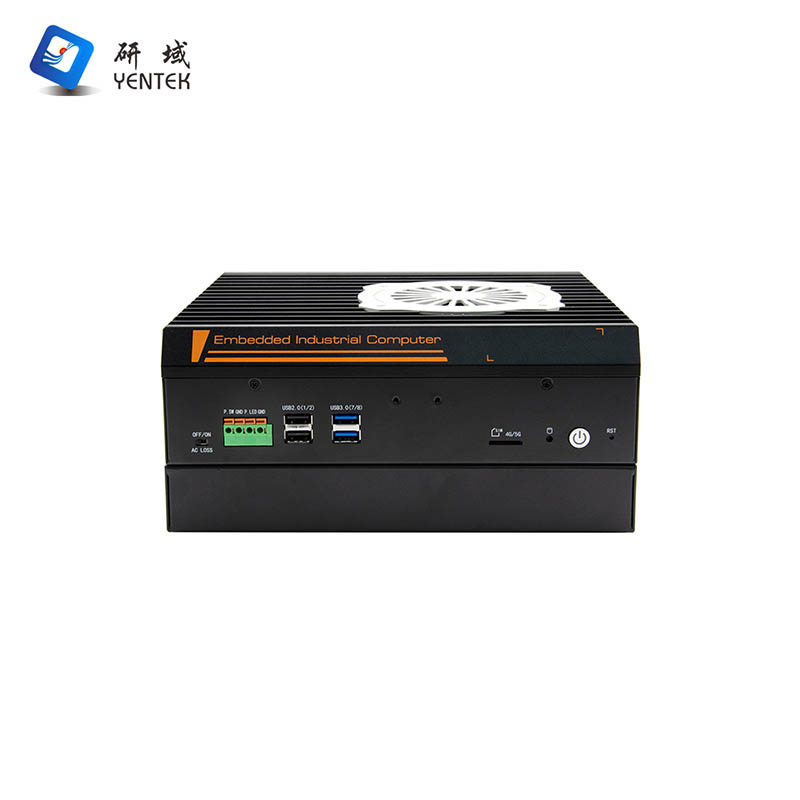

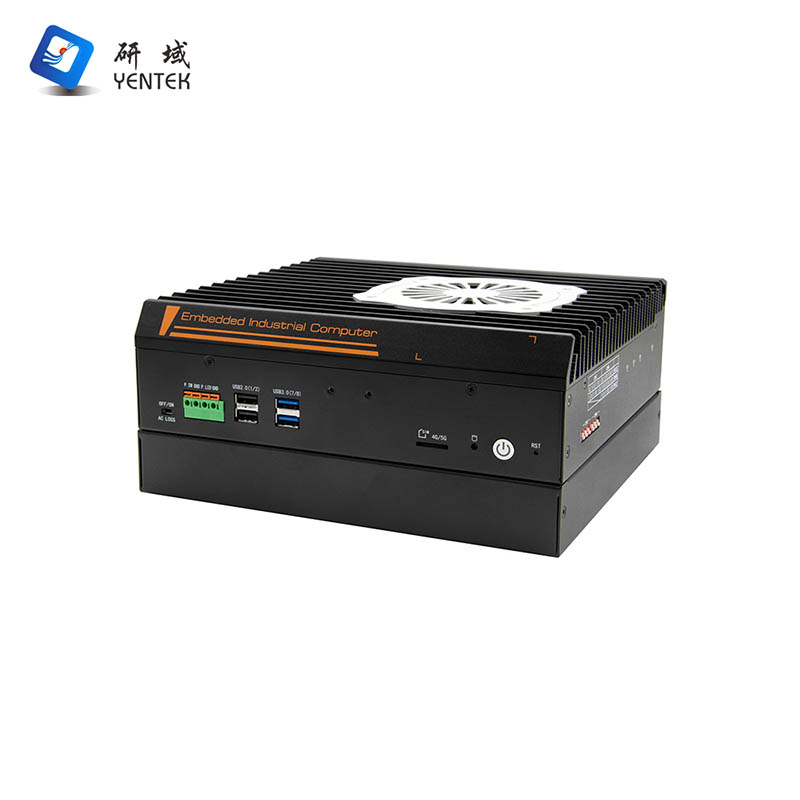

Front   Panel Connectors

Switches

1*Boot   button with indicator, 1*One Key Restore, 1*ACLOSS (Power on Power on DIP   switch)

LED

1*Hard   Drive Indicator

USB

2*USB3.0,   2*USB2.0, Built-in 1*USB2.0

Phoenix   Terminal

1*4P   (1*Power Indicator Signal, 1*Power On/Off Signal)

SIM

1*SIM   Standard Card Slot (Signal Default M.2 5G)

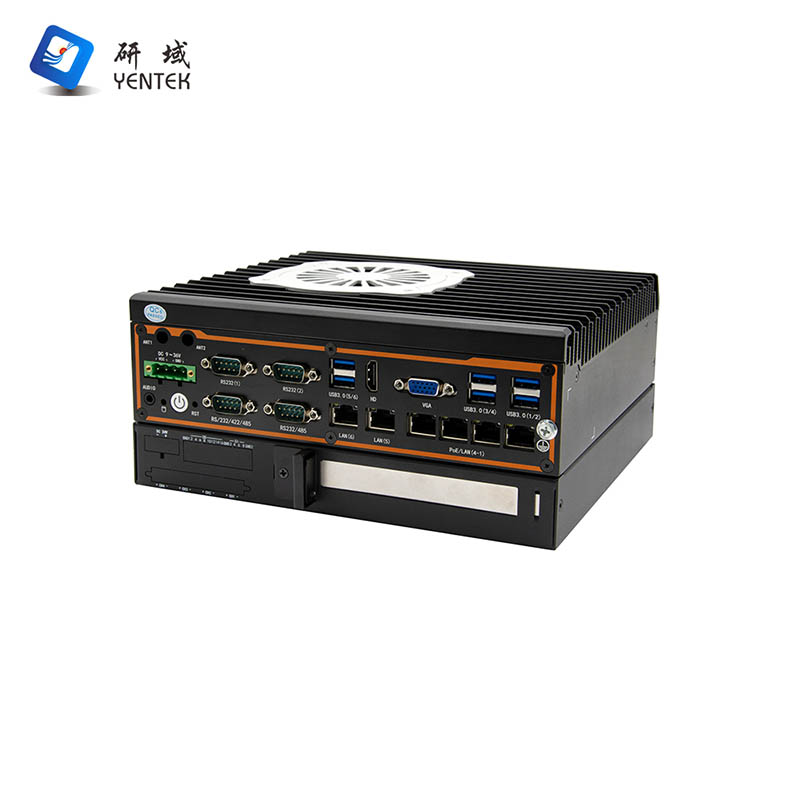

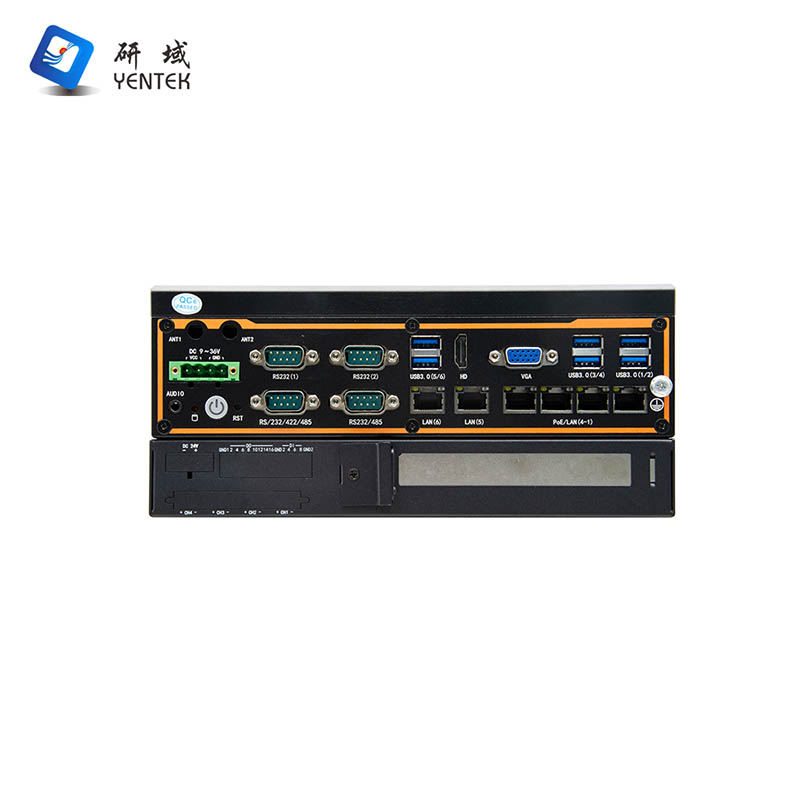

Rear   Panel Interface

Display   Interface

1*VGA(1920*1200@60Hz),   1*HDMI1.4

Switches

1*Power   On Button with indicator. 1*One Key Restore

LED

1*Hard   Drive Indicator

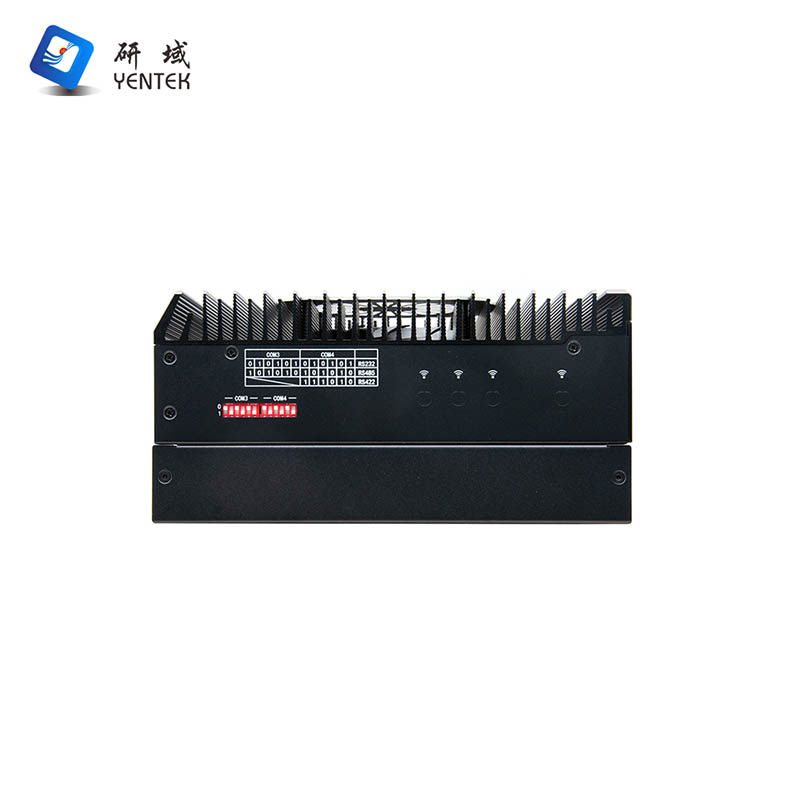

COM

4*RS232   DB9 serial ports, of which COM3 supports RS232/485 and COM4 supports   RS232/422/485

LAN

6*Intel   I210AT Gigabit electrical ports, of which 4 support POE (single port 15W)

USB

6*USB3.0

Audio

1*Audio,   Line out and MIC 2-in-1

Power   Interface

1*4P   (P=5.08mm) Phoenix terminal, support DC 9~36V wide voltage input

Storage

SATA

1*2.5-inch   hard drive bay

MSATA

1*MSATA

SSD

1*M.2,   support Key-M, 2280, NVME PCIEx4 SSDs

Expansion

PCIE

1*PCIE3.0   x8 (only support half-height graphics card)

WiFi

1*M.2,   support Key-E, 2230, WiFi module

5G

1*M.2,   support Key-B, 3042/3052, 5G module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type Input

Power   supply type

External   power adapter

Voltage   input

DC 9-36V   wide-voltage

Power   output

AC TO DC   120W or above (depending on specific device)

Environment

Operating   temperature

-10℃～50℃

Storage   temperature

-20℃～70℃

Relative   humidity

5%-95%   relative humidity, non-condensing

Operating   vibration

0.5g   rms/5-500HZ/random/operating
