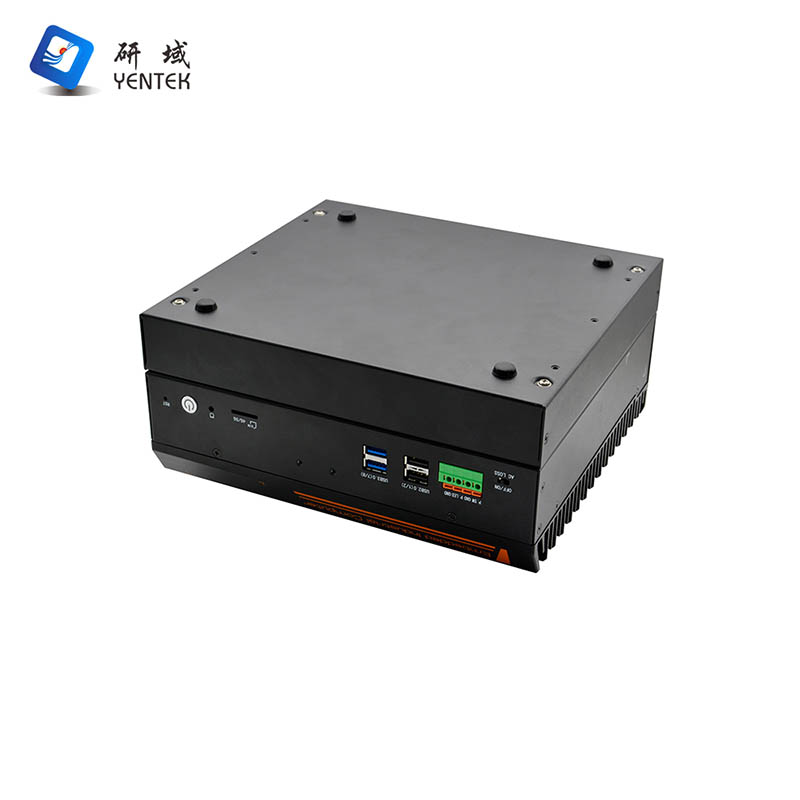

High-Performance Industrial PC

Model

G3760F-L6G4   V2.0(G250)

Chassis

Material/Construction

Aluminium   alloy + sheet metal material Fan cooling

Colour

Black +   Silver

Dimensions   (LWH)

229*208*99.7MM

Weight   (bare net weight)

3.7KG

Installation

Desktop/Embedded

Motherboard

CPU

Intel®LGA1151   / 6th~9th Generation Processor Series

System-on-Chip

Intel®Q250

Memory

2*SODDR4,   max. support 64GB

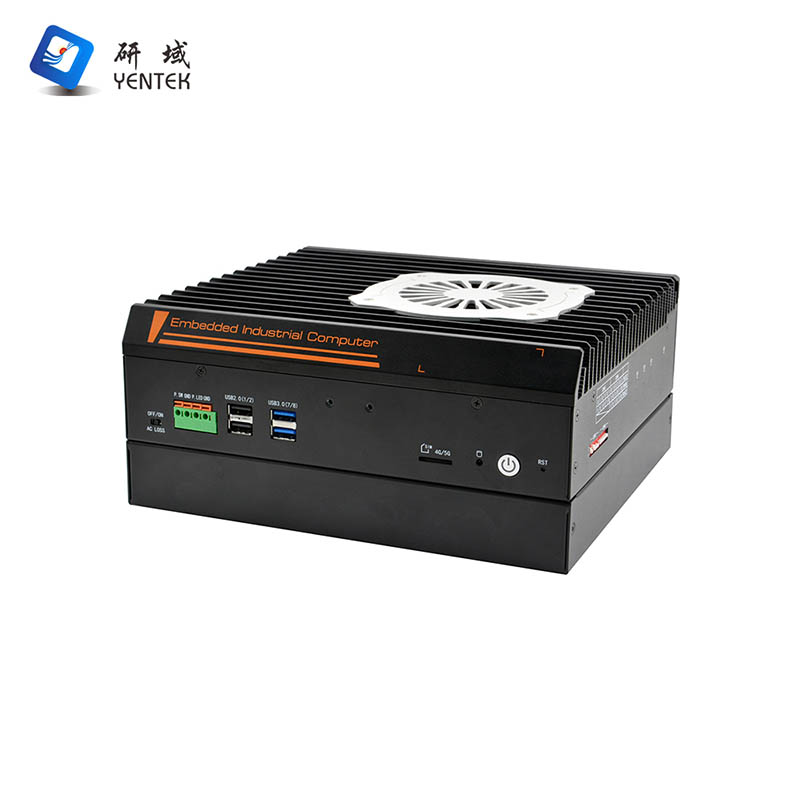

Front   Panel Connectors

Switches

1*Boot   button with indicator, 1*One-Key Restore, 1*ACLOSS (power on/off toggle   switch)

LED

1*Hard   Drive Indicator

USB

2*USB3.0,   2*USB2.0, Built-in 1*USB2.0

Phoenix   Terminal

1*4P   (1*Power Indicator Signal, 1*Power On/Off Signal)

SIM

1*SIM   Standard Card Slot (Signal default M.2 5G)

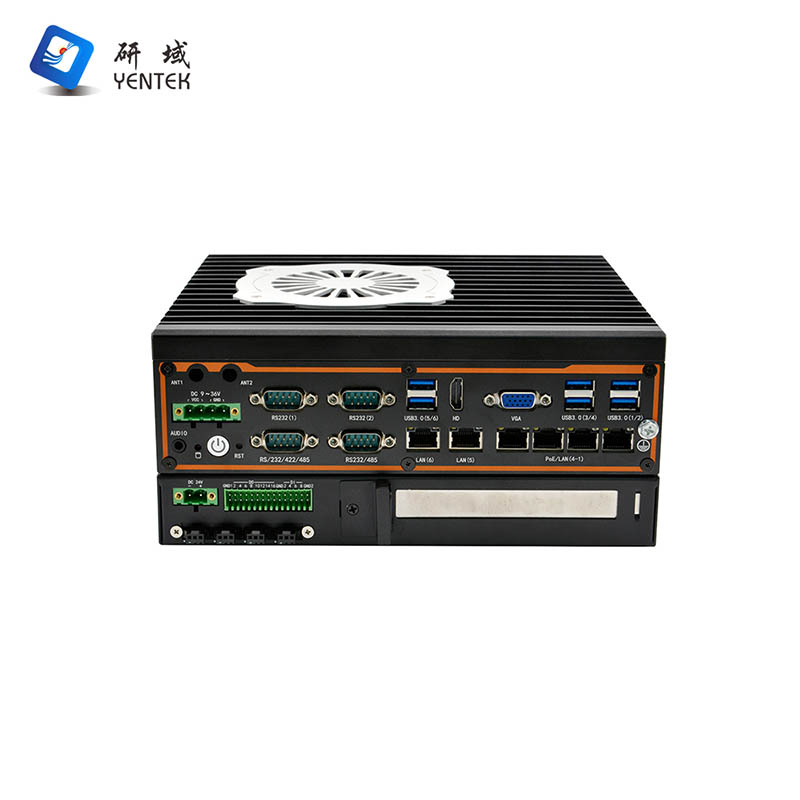

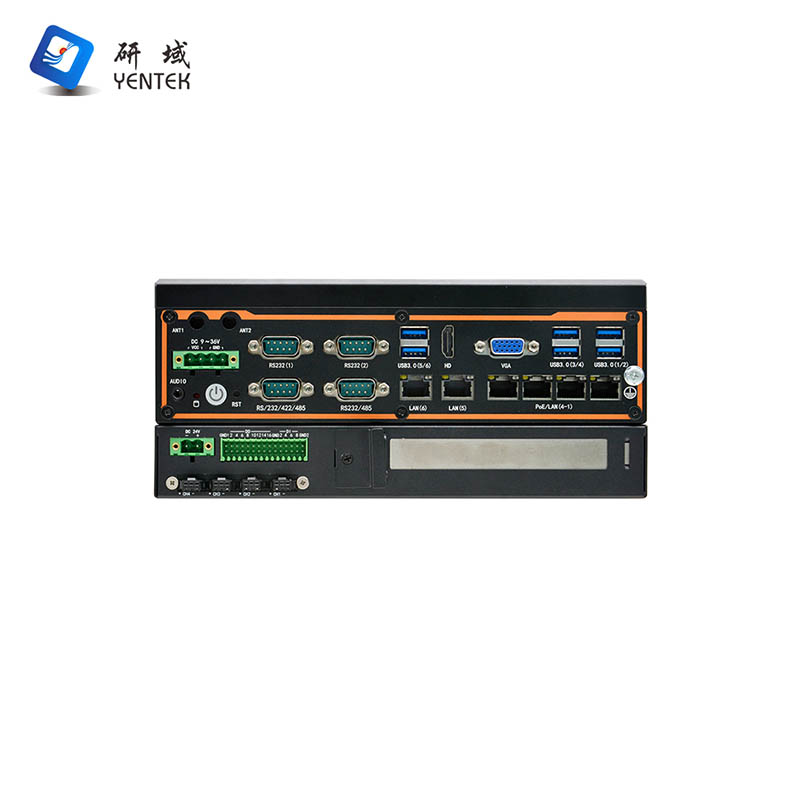

Rear   Panel Interface

Display   Interface

1*VGA(1920*1080@60Hz),   1*HDMI1.4

Switches

1*boot   key, 1*One Key Restore

COM

4*RS232   DB9 serial ports, of which COM3 supports RS232/485, COM4 supports   RS232/422/485

LAN

6*Intel   I210AT Gigabit power ports, of which 4 supports POE

USB

6*USB3.0

DI

8*DI(NPN   500mA)

DO

16*DO(NPN   4-20mA)

Light   Source Controls

1 way far   core light constant current light source 80 level adjustable(0-80mA)

3 way 512   level PWM adjustable 24V light source(24V/48W)

DC24V   Power Input

Audio

1*Audio,   Line out and MIC 2 in 1

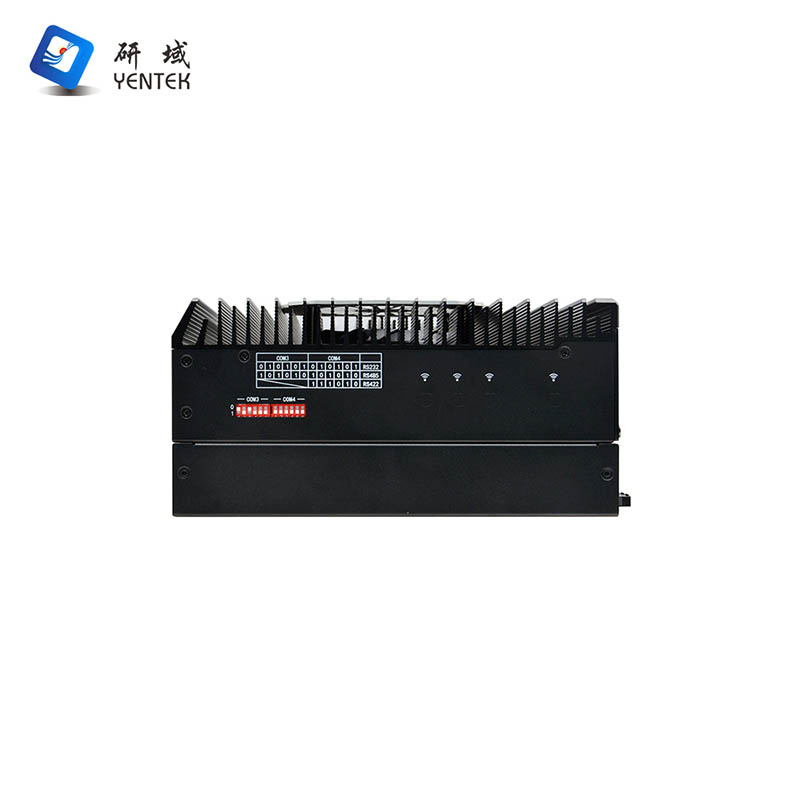

Dipswitches

2 sets of   6-position DIP switch. COM3 RS232/485 switching is achieved by COM3 dip   switch + BIOS combination, COM4 RS232/485/422 needs to be achieved by COM-SW1   jumper cap + COM4 dip switch + BIOS combination

Power   Interface

1*4P   P=5.08mm phoenix terminal, support DC 9~36V wide voltage input

Storage

SATA

1*2.5   inch HDD bit

MSATA

1*MSATA

SSD

1*M.2,   support Key-M, 2280, NVME PCIEx4 SSD

Expansion

PCIE

1*PCIE3.0   x16 (only support half-height graphics card)

WiFi

1*M.2,   support Key-E, 2230, WiFi+BT module

5G

1*M.2,   support Key-B, 3042/3052, 5G module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Power   Type

DC 9-36V   Above 90W, max load 220W

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity,non-condensing

Vibration

0.5g   rms/5-500HZ/random
