Model number | C5750Z-L4 V1.1 | |

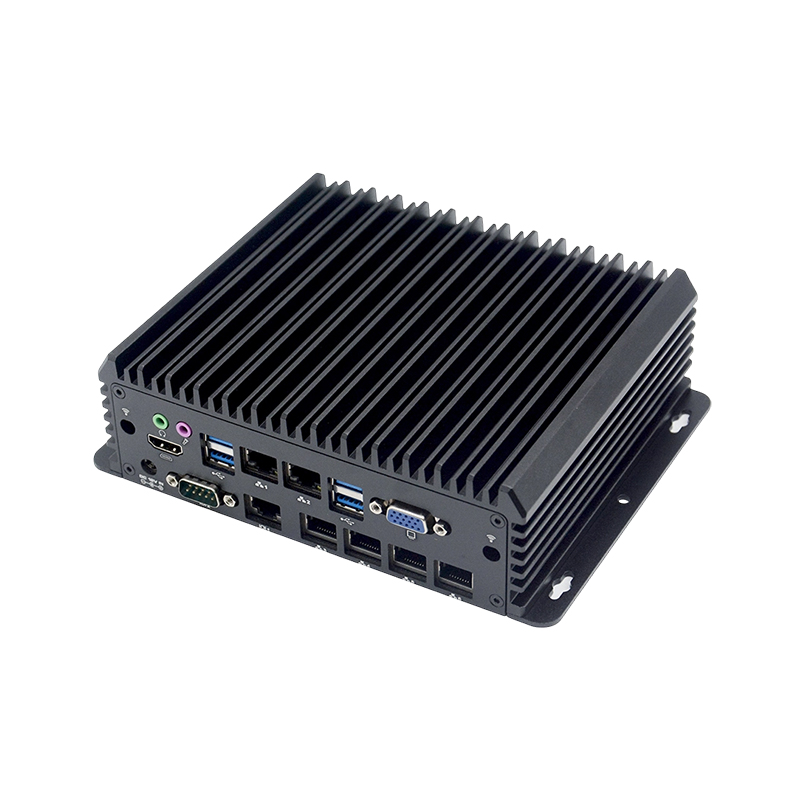

Case | Material/Structure | All aluminum alloy fanless |
Colour | Iron grey+silver front and rear panels | |

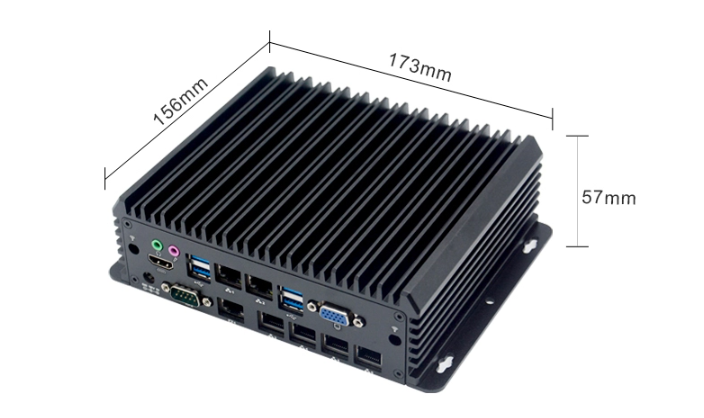

Dimension(L*W*H) | 174*148*57MM | |
Installation | Desktop / Embedded | |
Weight (Net ) | 1.35KG | |

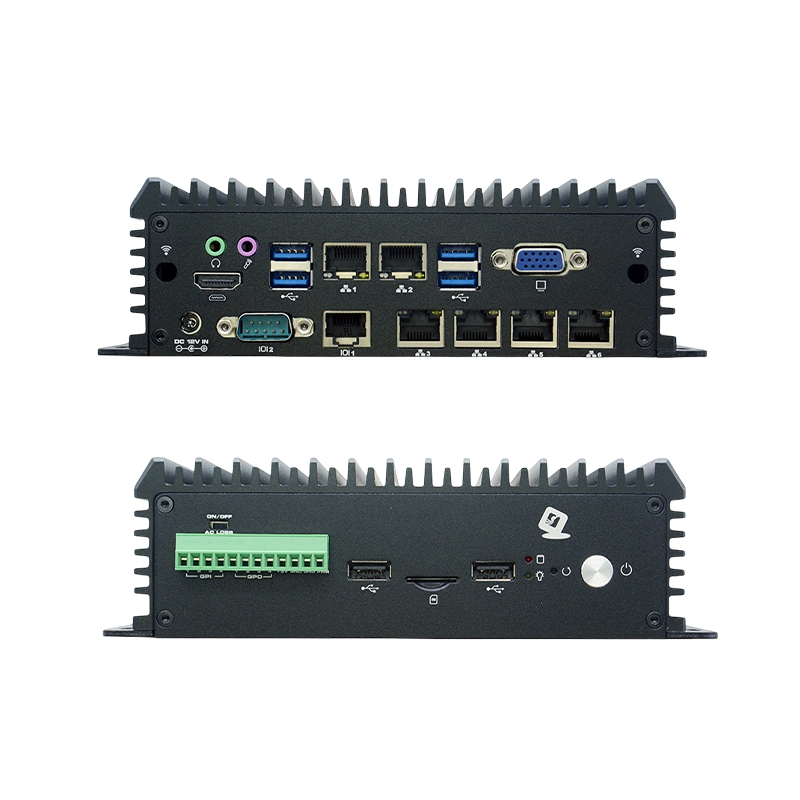

Front Panel Connectors | LED | 1*Power Indicator, 1*Hard Drive Indicator |
SIM | 1*SIM standard card slot | |
POWER | 1*Power Switch, 1*Reboot Switch, 1*ACLOSS (Power On Codec Switch) | |
USB | 2*USB2.0, 1*USB2.0 built-in | |
Phoenix terminal | 1*12P (including four in four out GPIO/power switch signal/5V/GND) | |
Rear Panel Connectors | Display interface | 1*VGA, 1*HDMI1.4 |
Audio | 1*Line out, 1*MIC | |
LAN | 6*RJ45 Gigabit Ethernet card | |
USB | 4*USB (USB2.0/3.0 number according to the motherboard) | |
COM | 1*RS232/485 DB9 serial port, 1*RJ45 serial port | |
Power Supply | 1*DC12V power input | |
Storage | SATA | 1*2.5 inch hard drive bay |
MSATA | 1 * MSATA | |
Expansion | Mini PCIE | 1*MiniPCIE, support 4G/WiFi |
Power Requirements | Power Type | External power adaptor |
Voltage Input | DC 12V | |
Power output | AC TO DC, 60W or above (depending on the specific equipment) | |
Environment | Operating temperature | -10℃～50℃ |
Storage temperature | -20℃～70℃ | |
Relative humidity | 5%-95% relative humidity, no condensation | |
Working vibration | 0.5g rms/5-500HZ/random/operating | |
