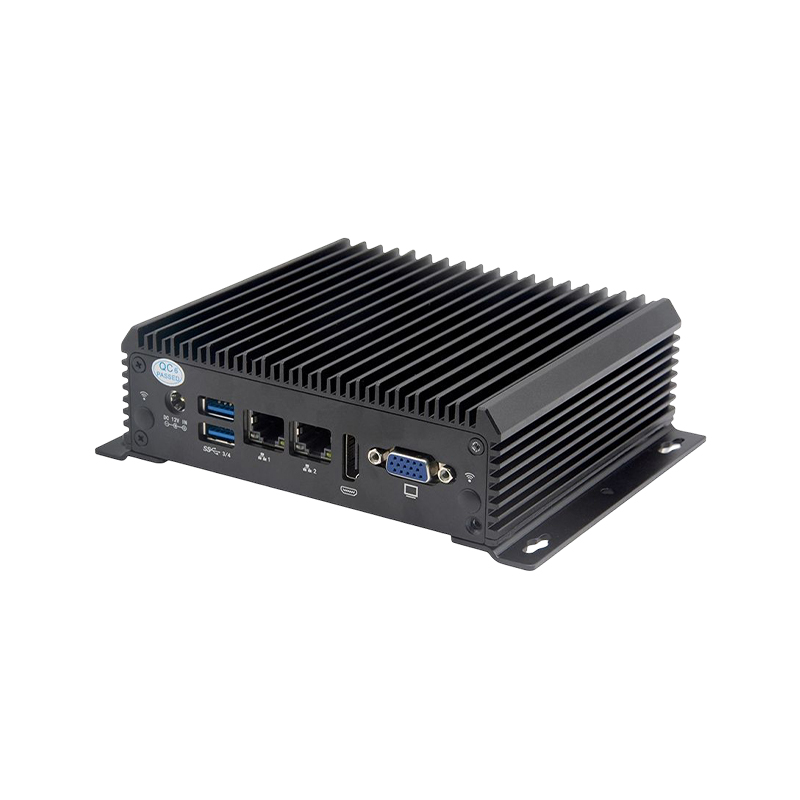

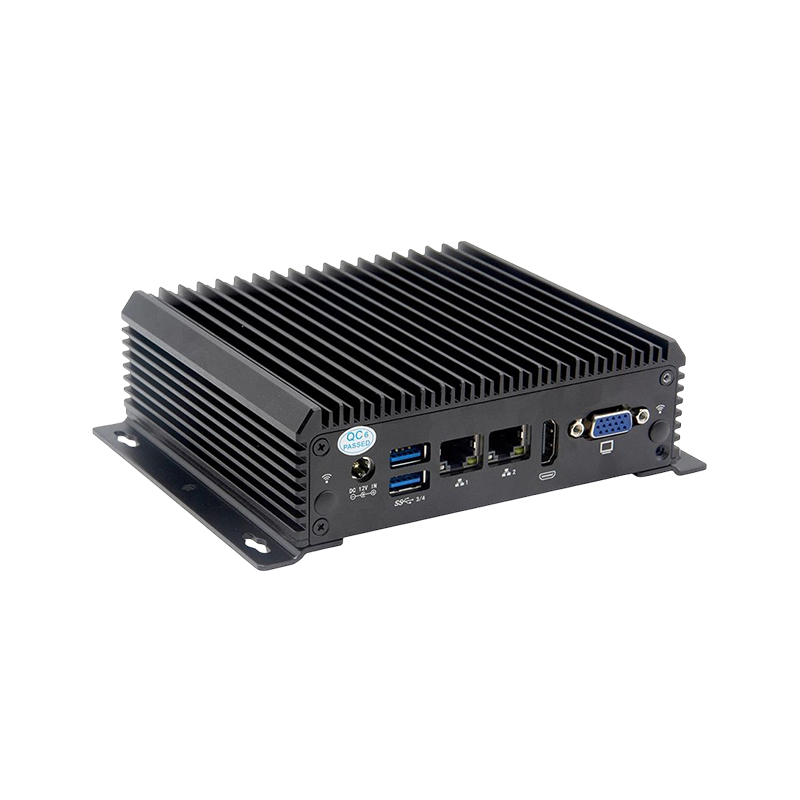

Desktop/Wall-mounted Industrial Mini PC

Model

C2120Z-V V1.0(J6412)

case

Materials/Structure

All aluminium alloy, fanless   cooling structure

Color

Black

Size (LWH)

L141.4*W126*H43.5MM

Weight (bare net)

0.8KG

Installation

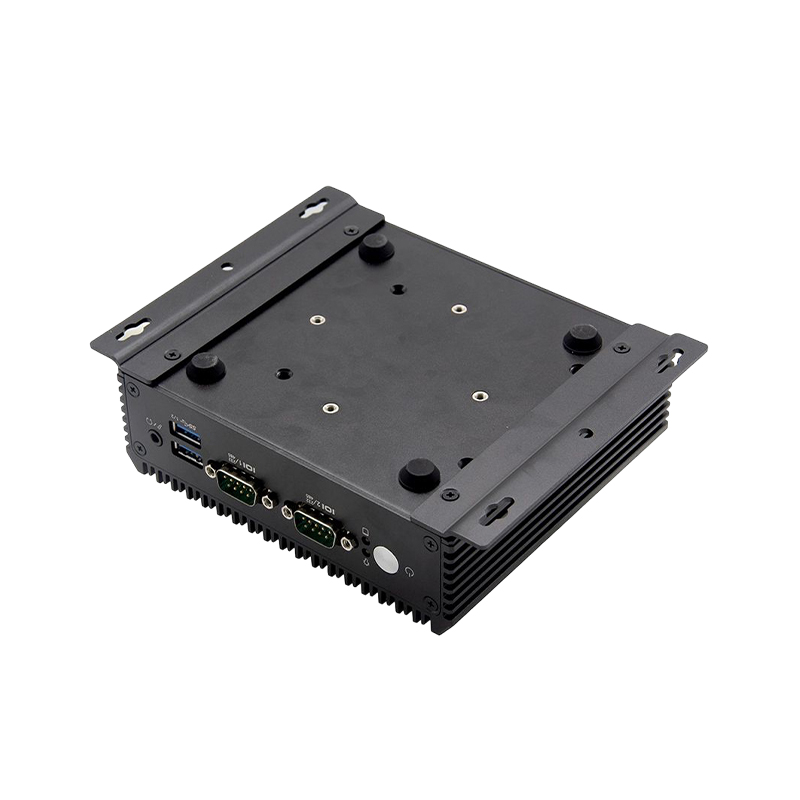

Supports VESA   mounting/desktop/wall mounting

motherboard

CPU

Integrated Intel®Celeron J6412/2.00GHz Quad-Core, Quad-Thread   Processor, TDP 10W

memory

1*SODDR4, support 3200MHz   memory, maximum support 32GB

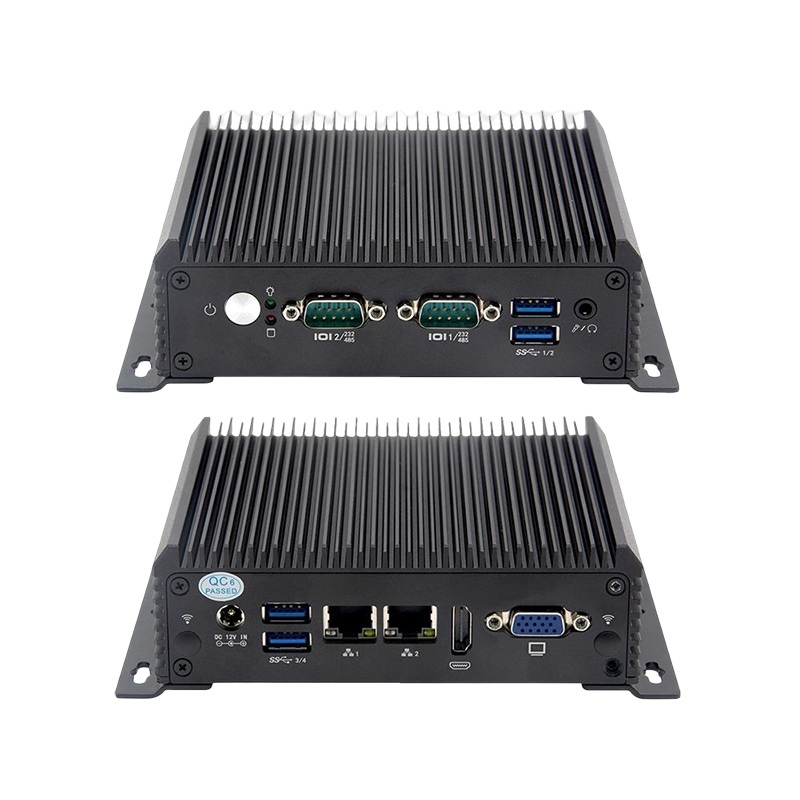

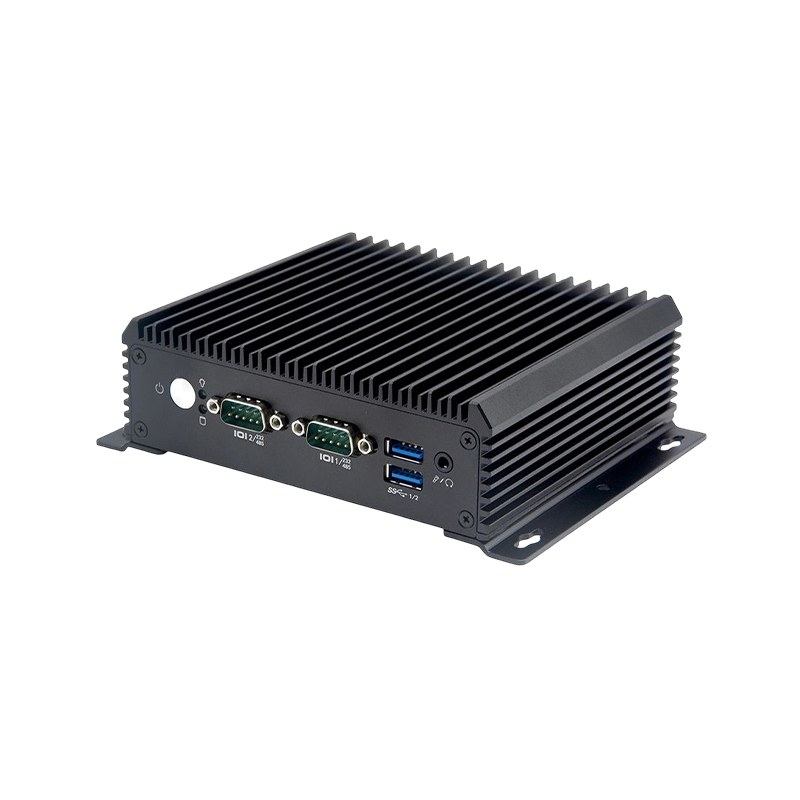

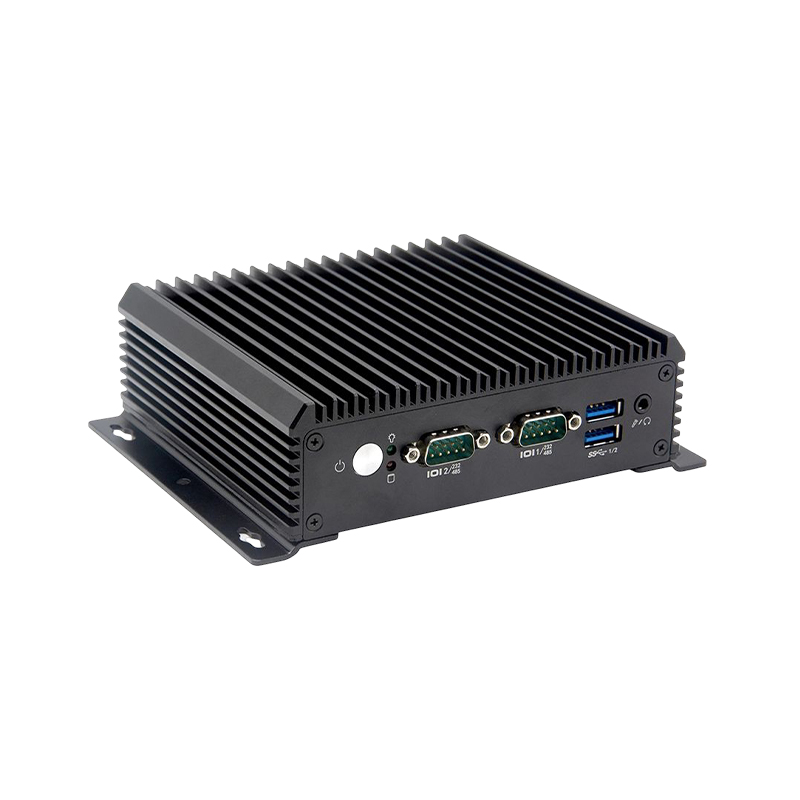

Front Panel Interface

POWER

1*Power switch

LED

1*Power Indicator, 1*Hard Drive   Indicator

USB

2*USB3.0

COM

2*RS232/485 DB9 serial ports

Audio

1*Audio, Line out and MIC 2-in-1

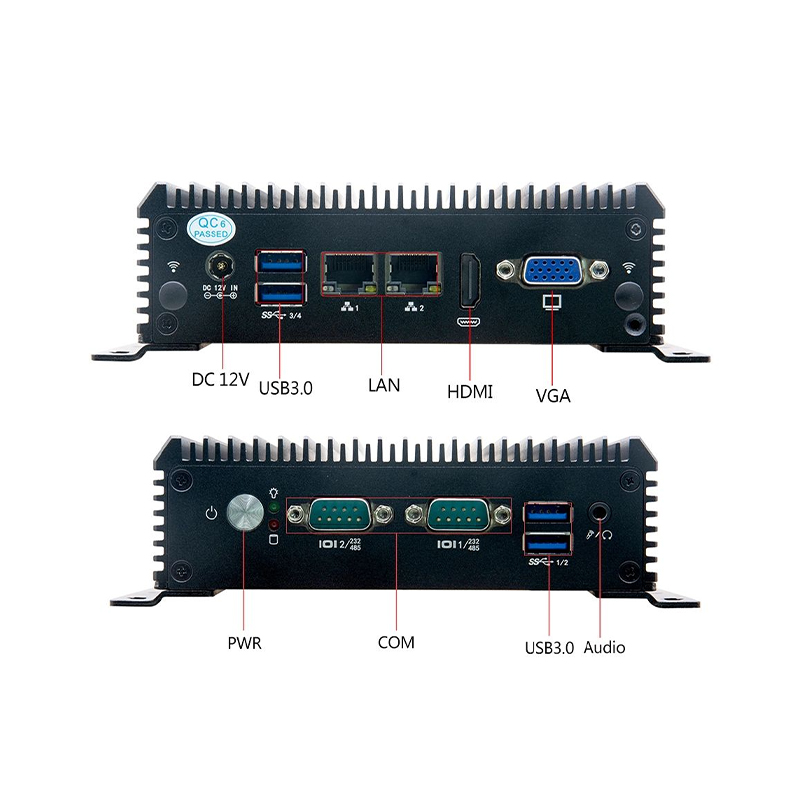

Rear Panel Interface

display

1*VGA，1*   HDMI2.0(4096x2160@60Hz)

LAN

2*RTL8111H Gigabit power ports,   support Wake-on-LAN, PXE function

USB

2*USB3.0

power

1*DC 12V（5.5*2.5）

storage

M.2

1*M.2/SSD，support Key-M，2280，NVME PCIE x2 SSD

SATA

1*2.5 inch hard drive bay (7mm   thickness)

extension

Mini PCIE

1*Mini-PCIE, support WIFI/4G   module

System Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~255 seconds)

Power Requirements

Power type

External power adapter

Voltage input

DC 12V

power output

AC TO DC、36W

environments

Working Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity,   non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating
