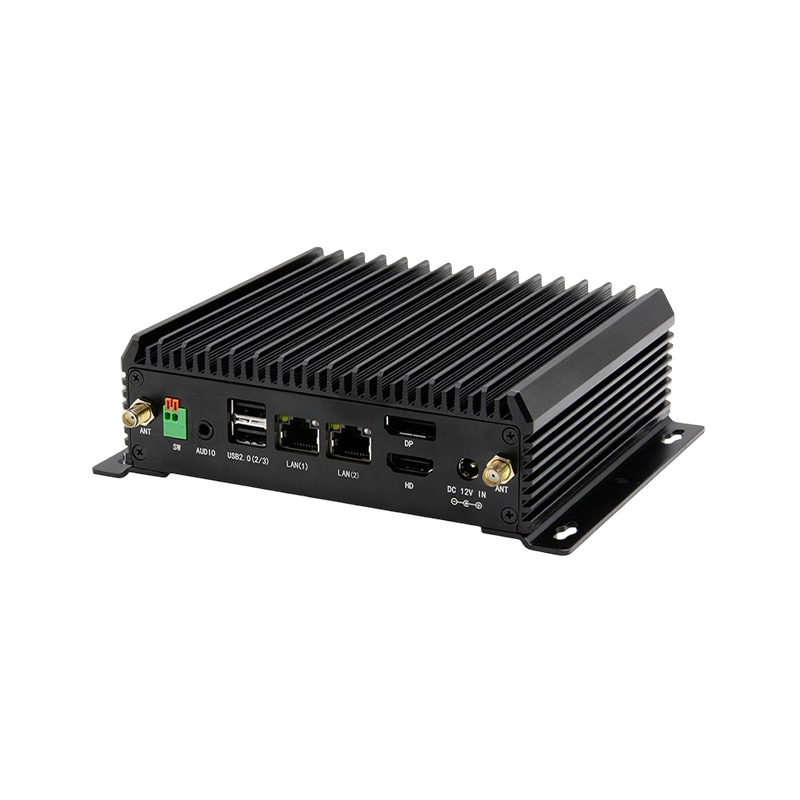

Desktop/Wall-mounted IndustrialPC

Model

C2120E-U8 V2.0(8265U)

Chassis

Material/structure

All aluminium alloy, fanless   cooling structure

Colour

Black colour

Size (LWH)

L141.4*W126*H44mm

Weight (bare net)

0.8KG

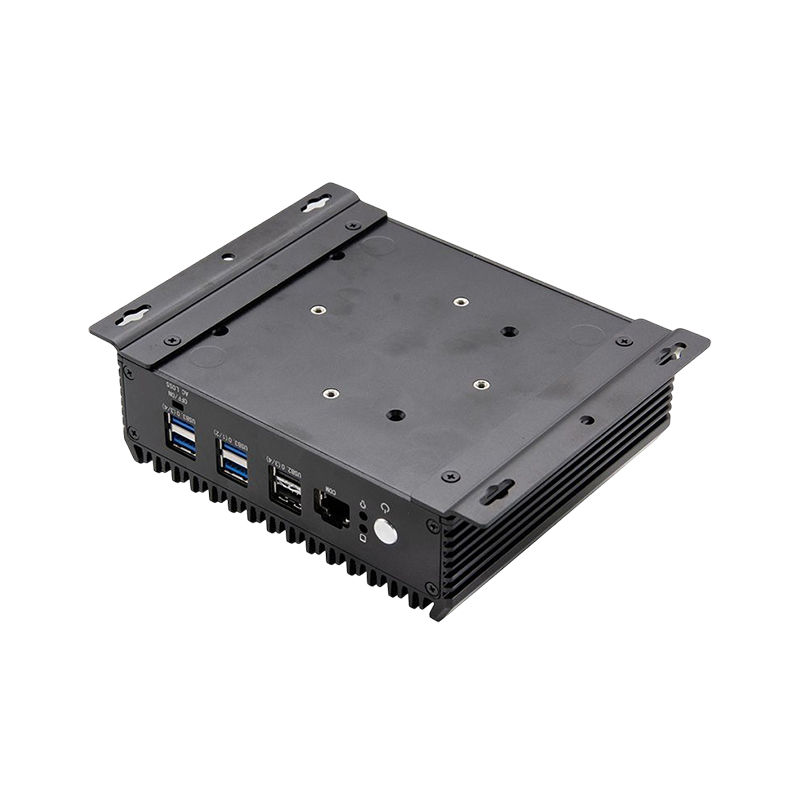

Installation

Desktop/Wall Mount

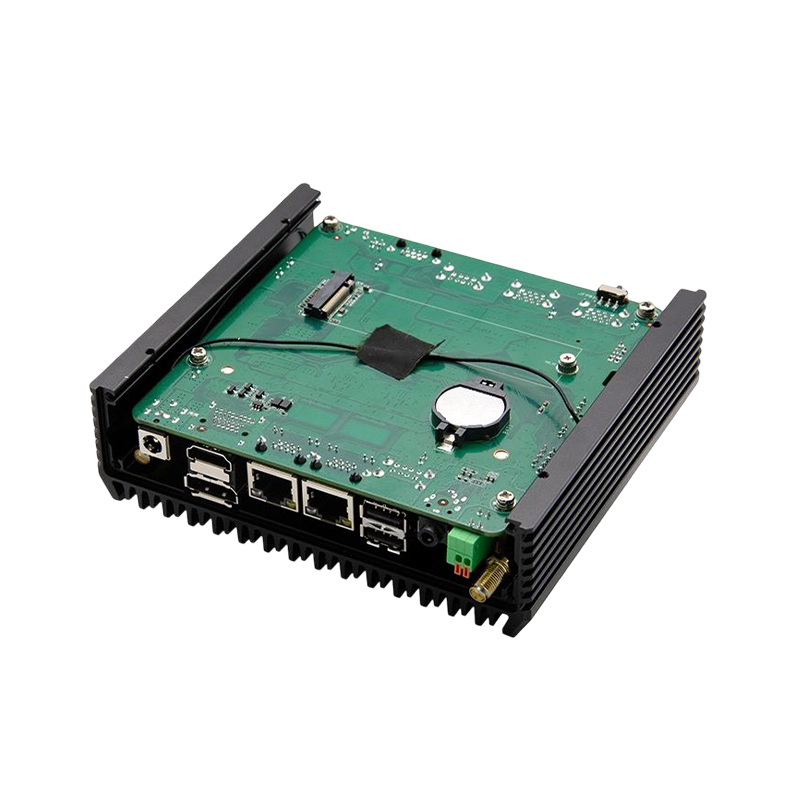

Motherboard

CPU

Integrated Intel®   i5-8265U/1.60GHz Quad-Core 8-Thread Processor, TDP 15W (Optional   4305U/5405U/1135G7)

Memory

Integrated 8G LPDDR4x 4266MHz   memory (1135G7)

Integrated 8G LPDDR3 2133MHz   memory (8265U)

Integrated 4G LPDDR3 1866MHz   Memory (4305U/5405U)

eMMC5.1

Integrated 64G (4305U &   5405U only)

WiFi

Intel®WiFi6 AX201 + Bluetooth   5.1 (1135G7)

Intel®WiFi5 AC9560 + Bluetooth   5.0 (8265U)

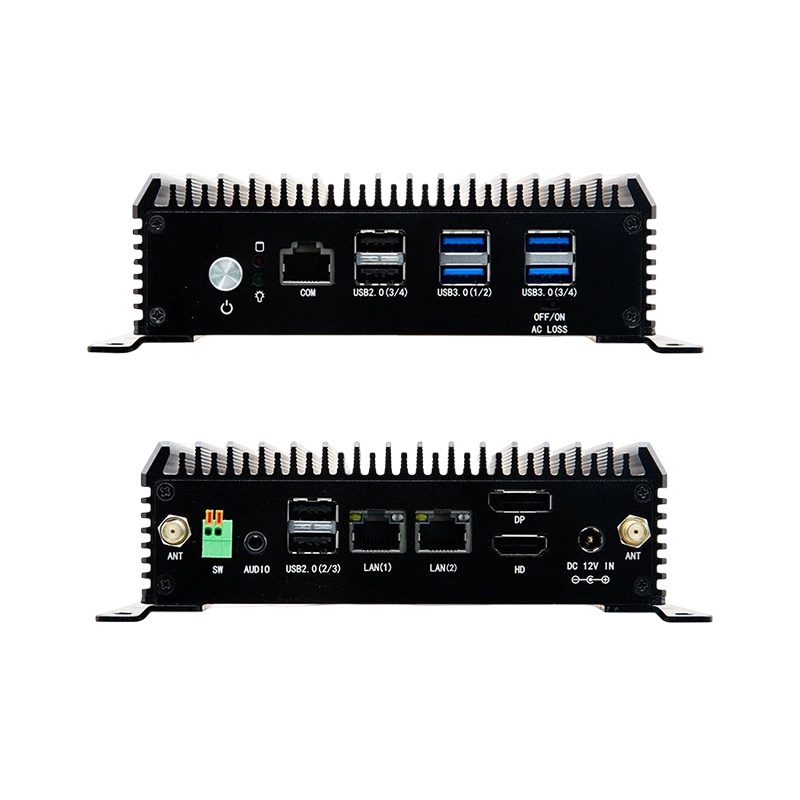

Front Panel Connectors

POWER

1*Power switch, 1*ACLOSS   (power-on toggle switch)

LED

1*Power Indicator, 1*Hard Drive   Indicator

Console

1*Console

USB

4*USB3.0, 2*USB2.0

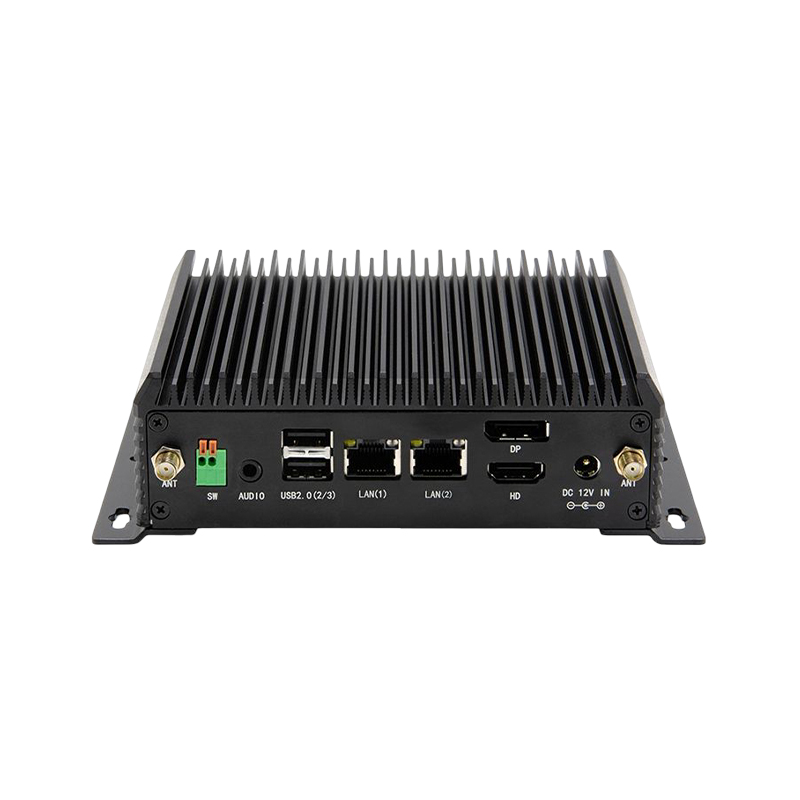

Rear Panel Interface

Display Interface

1*HDMI(4096x2304@60Hz), 1*DP(4096x2304@60Hz),   support for dual display

LAN

2*RTL8111H Gigabit LAN card,   support Wake on LAN, PXE function

USB

2*USB2.0

Phoenix Terminal

1*2P (power-on signal, can be a   remote switch)

Audio

1*Audio, Line out and MIC 2 in 1

Power Supply

1*DC 12V power input

Storage

SSD

1*M.2, support Key-M, 2280, NVME   PCIEx4 SSDs

System Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~255 seconds)

Power Requirements

Power Supply Type

External Power Adapter

Voltage Input

DC 12V

Power Output

AC TO DC

Environment

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity,   non-condensing

Vibration

0.5g rms/5-500HZ/random
