Mini PC/NUC R41EZ

Model number

R41EAZ V1.0(j4125)

Chassis

Material/Structure

All aluminum alloy material, fanless cooling structure

Color

Iron gray

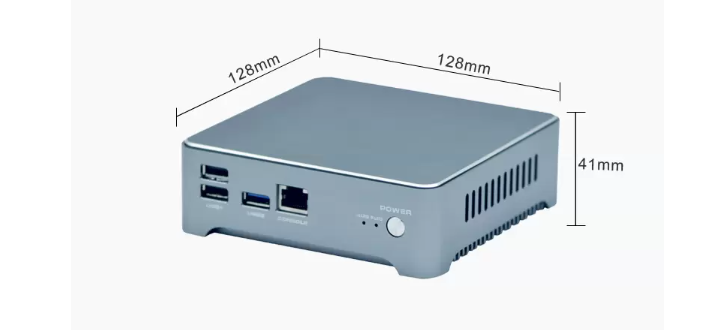

Size (length, width and height)

128mm*128mm*41mm

Install

Desktop or Wall Mounted

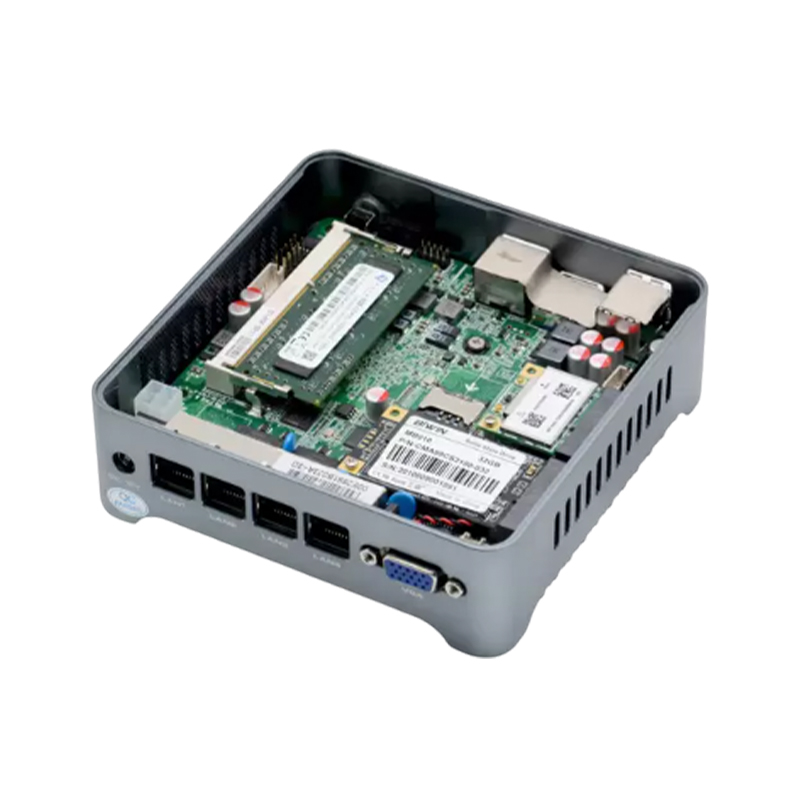

Motherboard

CPU

Integrated Intel® Celeron J4125 2.0GHz quad-core quad-thread processor, TDP 10W,Compatible with all Intel® Gemini Lake CPUs

Chipset

SOC

Display

Integrated Intel® UHD Graphics 600 Core Graphics

RAM

Memory

Front Panel Port

COM

1* CISCO standard RS232 serial interface

POWER

1*Power switch

USB

2* USB2.0 interface, 1*USB3.0 interface

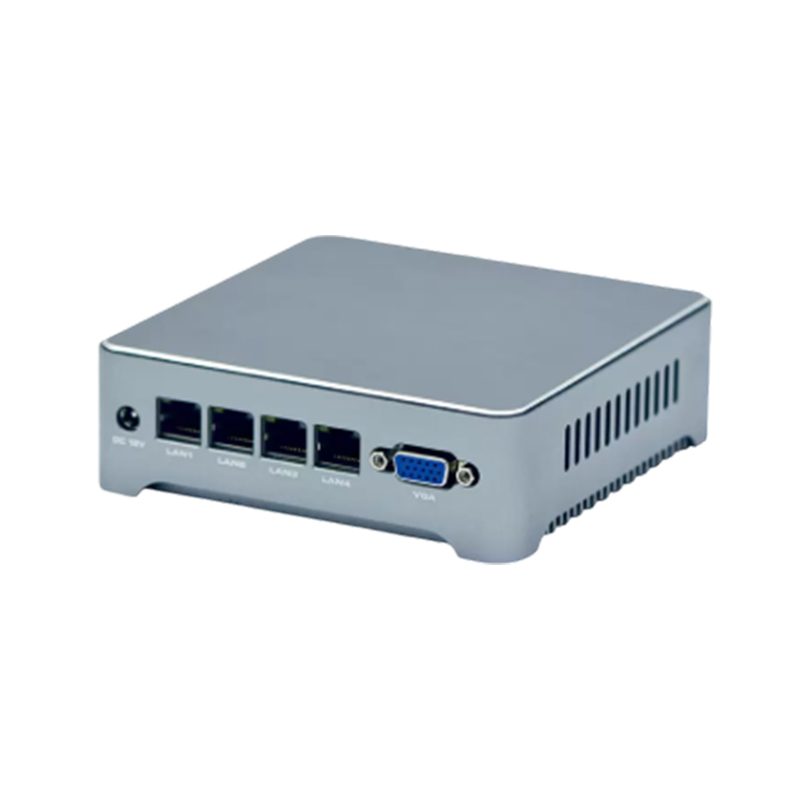

Rear Panel Port

LAN

4* Intel WGI211AT Gigabit LAN chip, support LAN/PXE function

Display Port

1*VGA interface

Power Supply

1* DC JACK power interface, support DC 12V power input

Storage

SATA

1* Standard SATA2.0 hard disk interface, transfer speed up to 3Gbps

SSD

1* MSATA slot, support SSD solid state drive, SSD transfer speed up to 3Gbps

Extend

Mini PCIE

1*Mini-PCIE slot, support WIFI/4G module

Note: WIFI and LAN4 are optional, the default is LAN4

Software Support

Microsoft Windows

Windows 7/10，64bit(without key)

Linux

Ubuntu

Watch Dog

Support hardware reset function (L256，0~255 seconds)

Power Supply

Power supply type

External power adaptor

Voltage input

DC 12V

Power output

AC TO DC，36W / 60W（optional）

Environment

Operating temperature

-10℃～60℃

Storage temperature

-20℃～70℃

Relative humidity

5%-95% relative humidity, no condensation

Working vibration

0.5g rms/5-500HZ/random/operating
