Mini PC/NUC N8150Z-HD

Model

N8150Z-HD V2.0(5205U)

Chassis

Material/structure

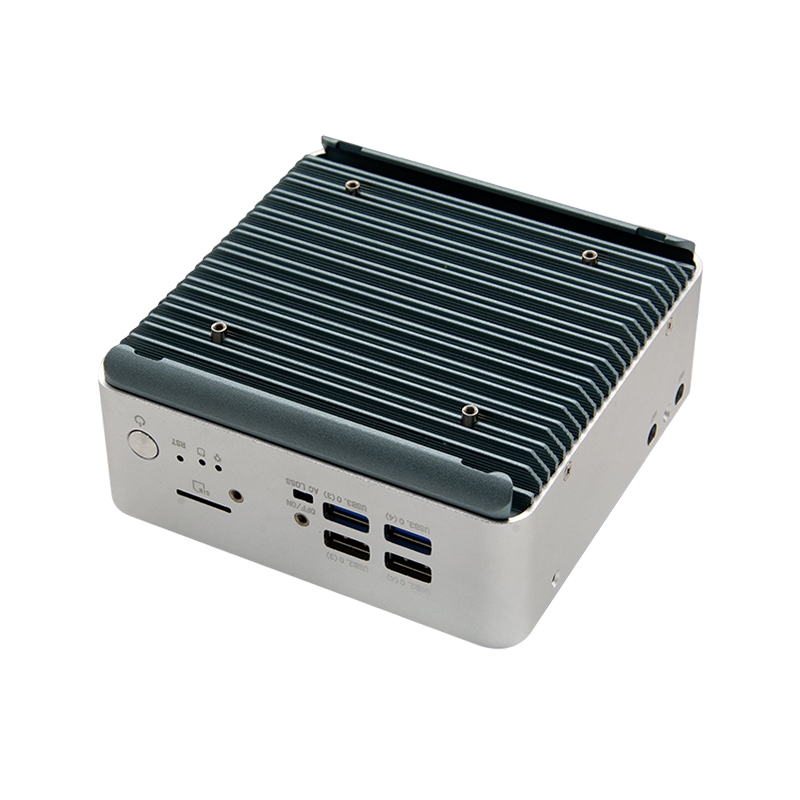

All aluminium alloy, fanless   cooling structure

Colour

Iron grey + silver

Size (LWH)

128*128*54.2MM

Weight (bare net)

1.20KG

Installation

Desktop/Wall Mount/Din   Rail(35mm)/VESA

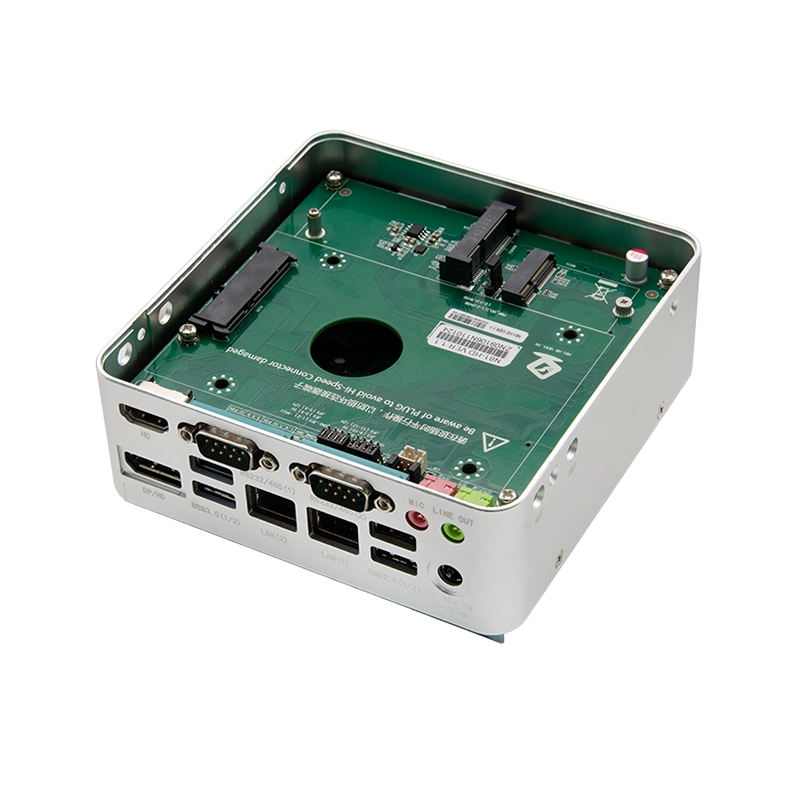

Motherboard

CPU

Integrated 10th Generation   Intel®Celeron 5205U/1.9GHz Dual-Core Dual-Thread Processor, TDP 15W

Display

Integrated Intel® UHD Graphics,   support 4K/60Hz

RAM

2*SODDR4 2400MHz, support up to   64GB

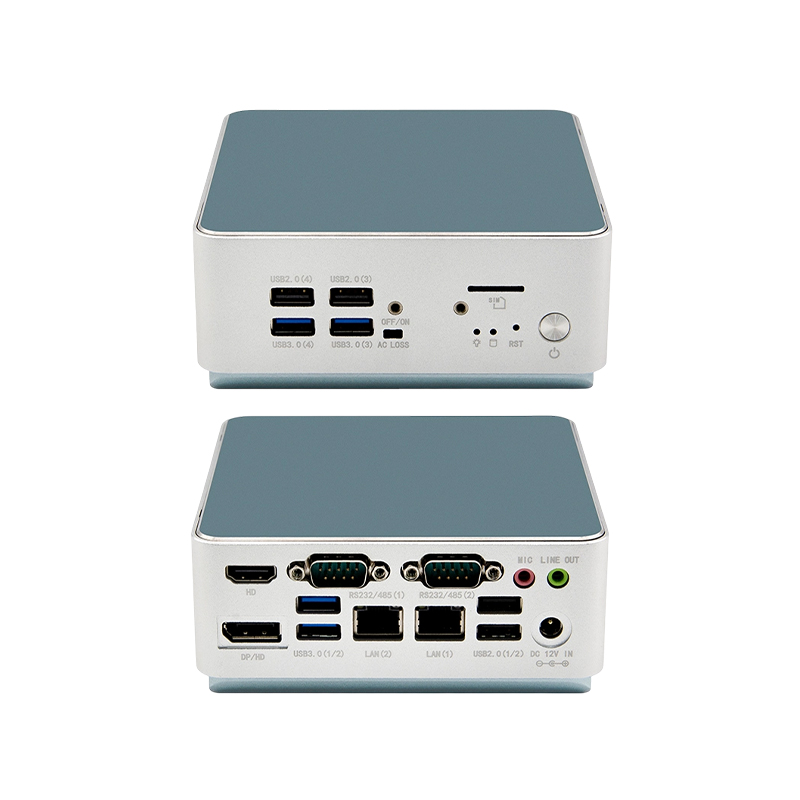

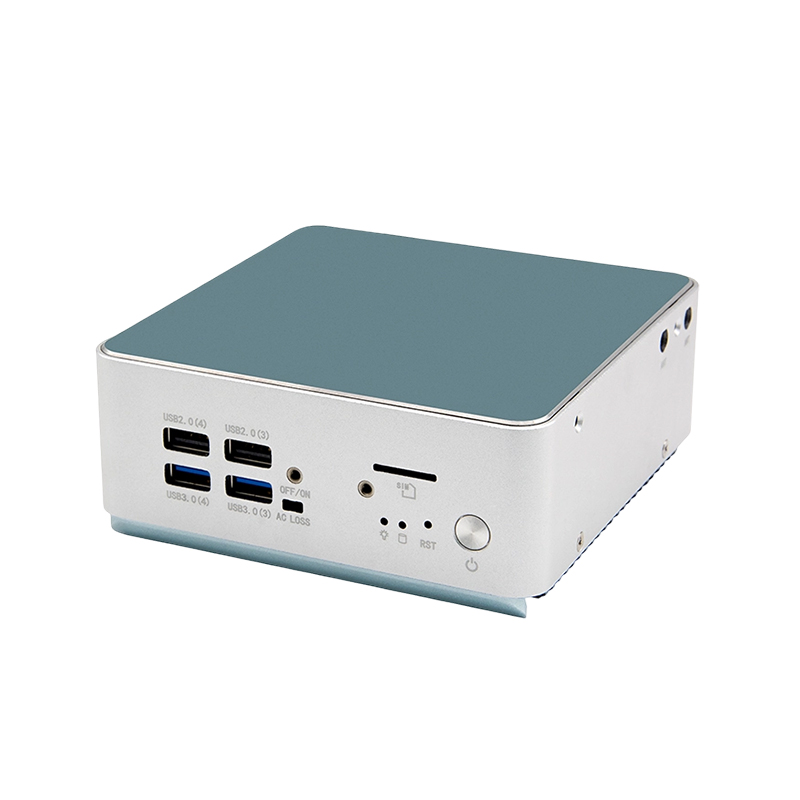

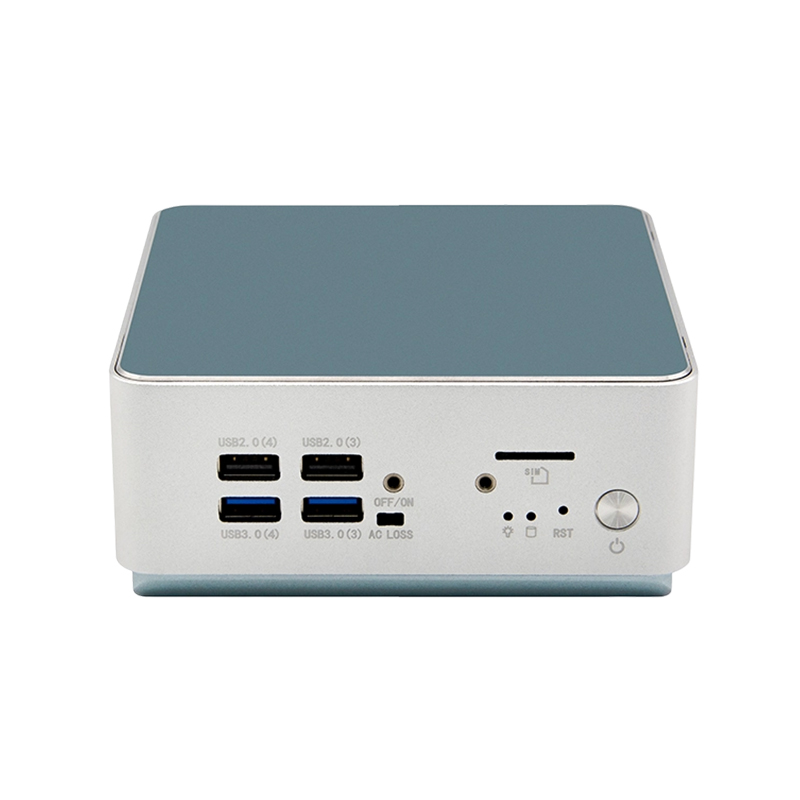

Front Panel Connectors

POWER

1*Power On/Off, 1*One-Key   Restore, 1*AC LOSS (power on/off toggle switch)

LED

1*Power Indicator, 1*Hard Drive   Indicator

POWER LED

2*USB3.0, 2*USB2.0

SIM

1* SIM card slot

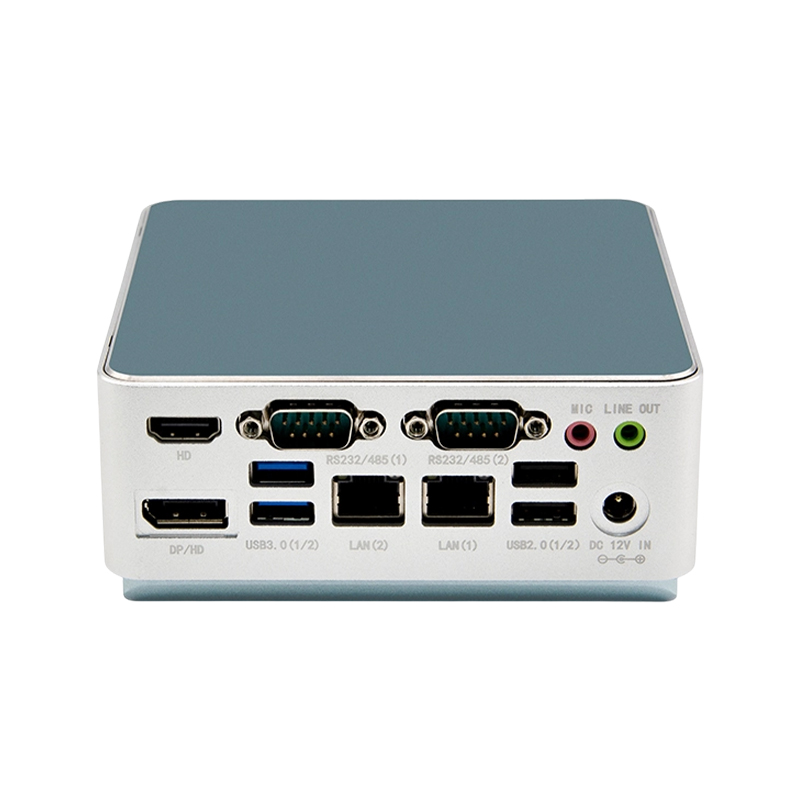

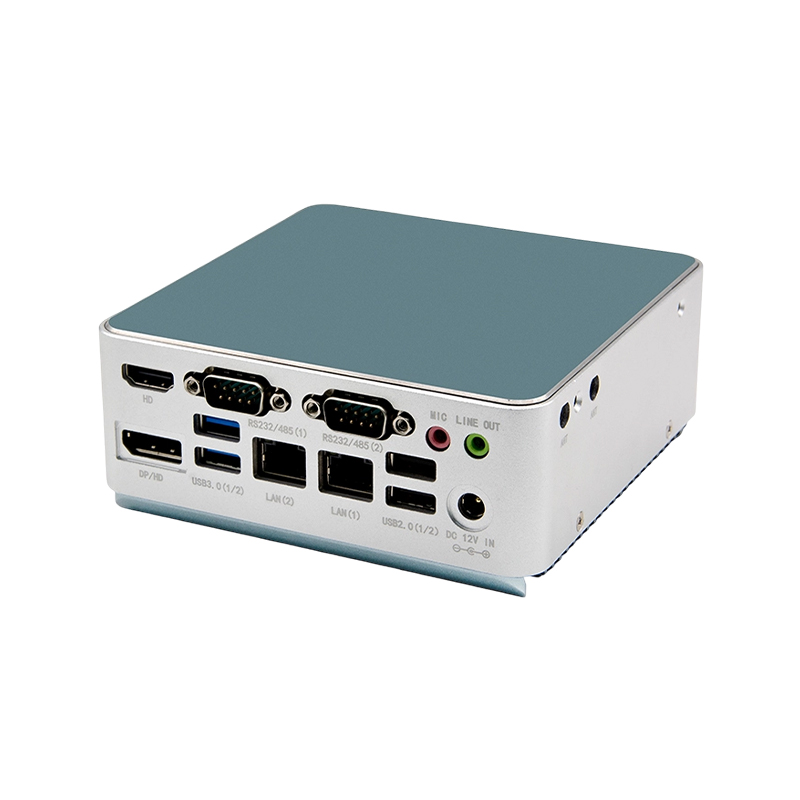

Rear Panel Interface

Display Interface

1*HDMI2.0(4096x2304@60Hz),   1*DP(4096x2304@60Hz), support dual display

LAN

2*Realtek 8111HS Gigabit LAN   card, support Wake on LAN, PXE function

USB

2*USB2.0, 2*USB3.0

COM

2*RS232/485 DB9 serial port,   support the 9th pin with power function

AUDIO

1*Line out, 1*MIC

Power supply

1*DC 12V(5.5*2.5) power input

Storage

SATA

1*2.5 inch hard drive bay

SSD

1*M.2, support Key-M, 2 2280,   NVME PCIEx4 SSD

Expansion

4G

1*MINIPCIE, support 4G module

WiFi

1*M.2, support Key-E, 2230, WiFi   module

System Support

Microsoft Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~255 seconds)

Power Requirements

Power Type

External Power Adapter

Voltage Input

DC 12V

Power Output

AC TO DC, 36W / 60W (optional)

Environments

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5% to 95% relative humidity,   non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating
