Mini PC/NUC N8250Z-V

Model

N8250Z-V V2.0(10210U)

Chassis

Material/structure

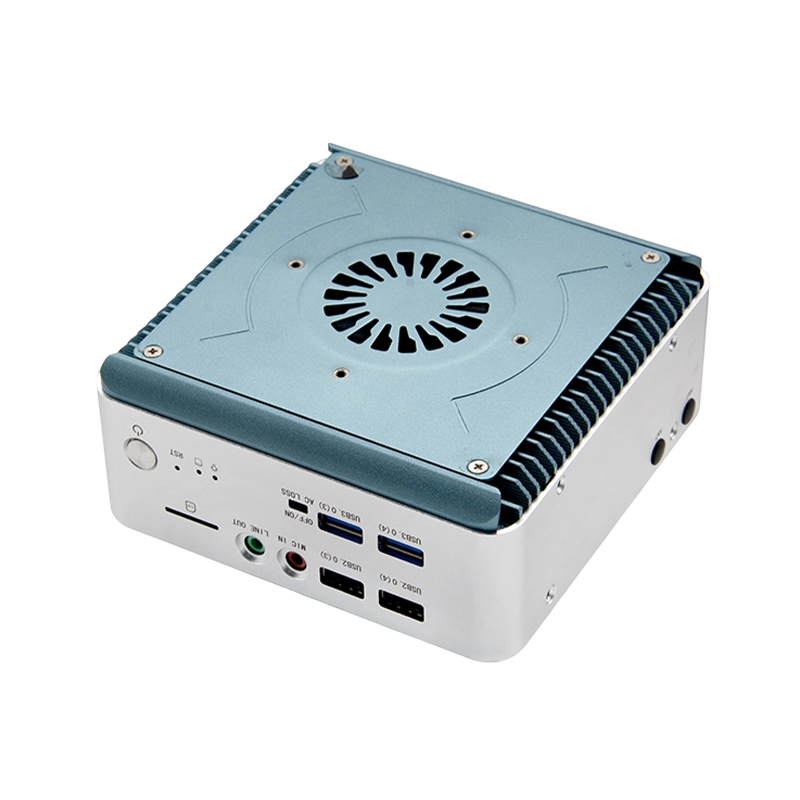

All aluminium alloy, fan cooling   structure

Colour

Iron grey + silver

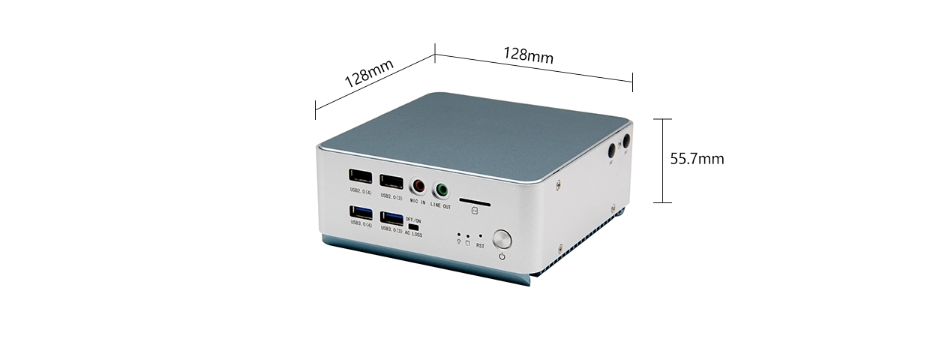

Size (LWH)

128*128*55.7MM

Weight (bare net)

1.20KG

Installation

Desktop/Wall Mount

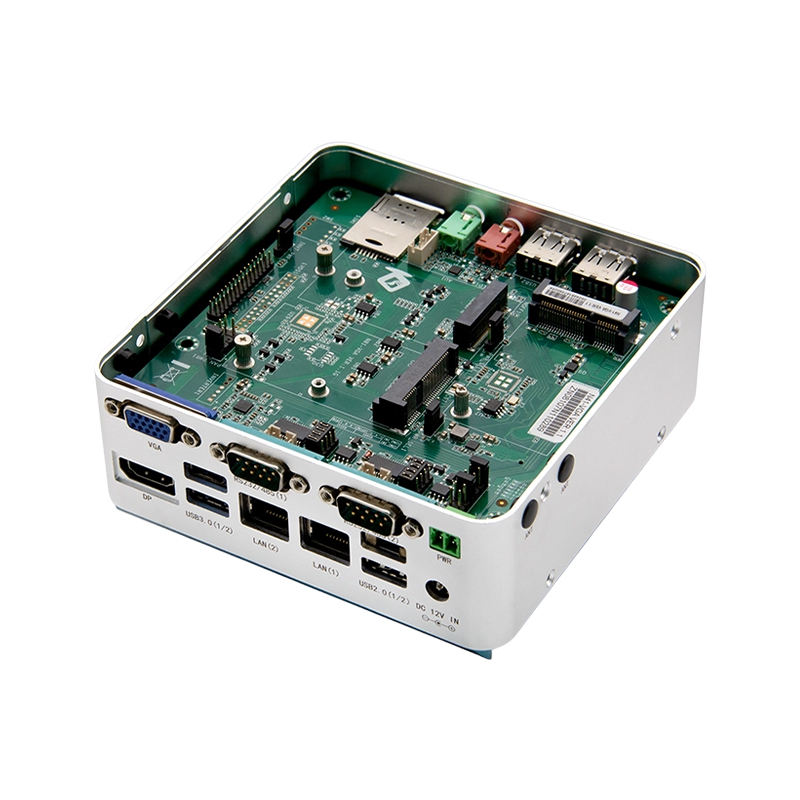

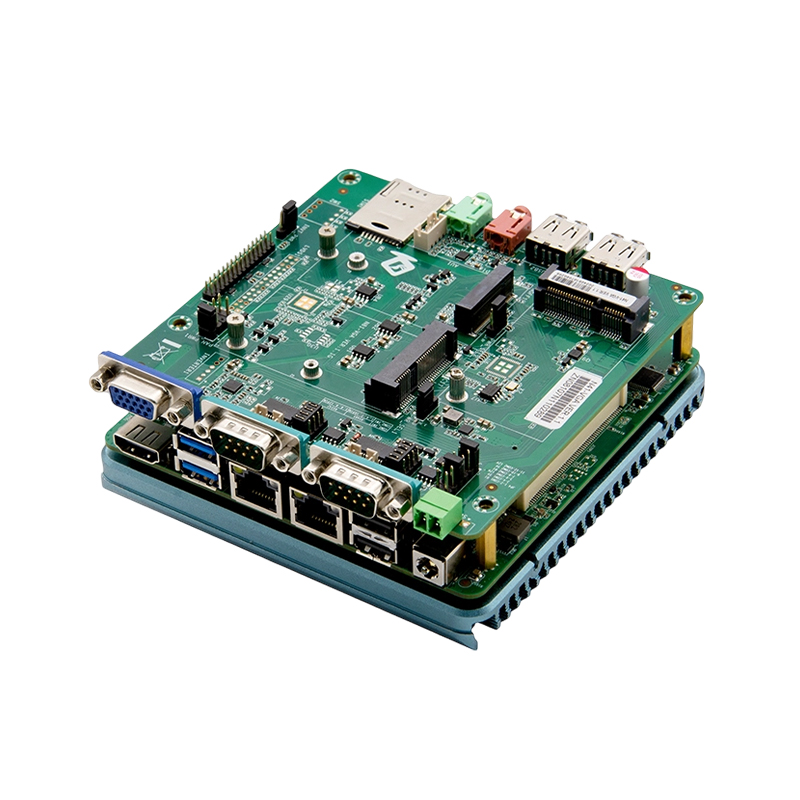

Motherboard

CPU

Integrated Intel®   I5-10210U/1.6GHz Quad-Core 8-Thread Processor, TDP 15W

Display

Integrated Intel® UHD Graphics

RAM

2*SODDR4 2400MHz, support up to   64GB

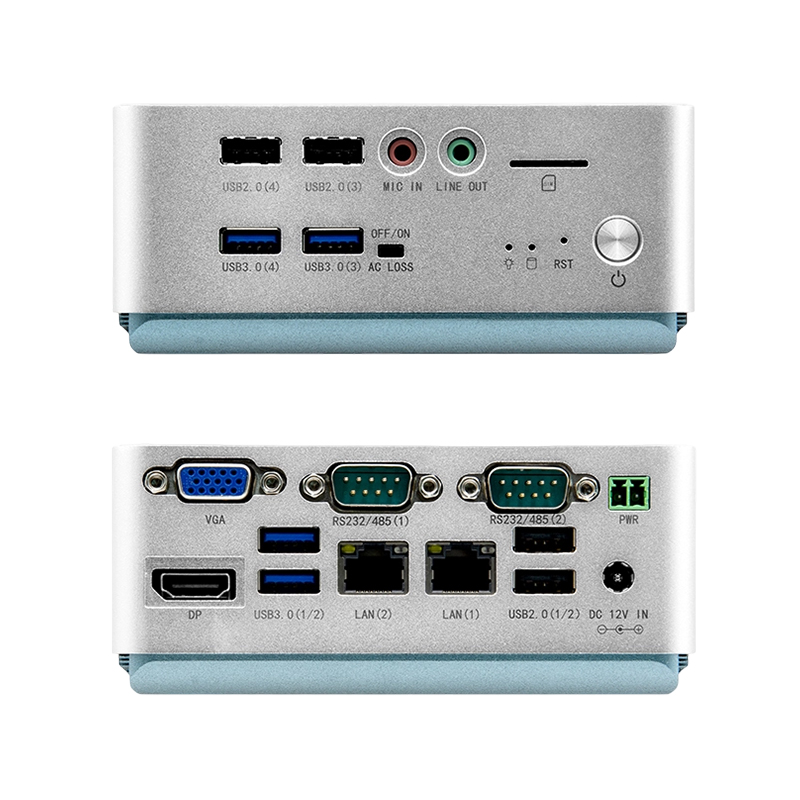

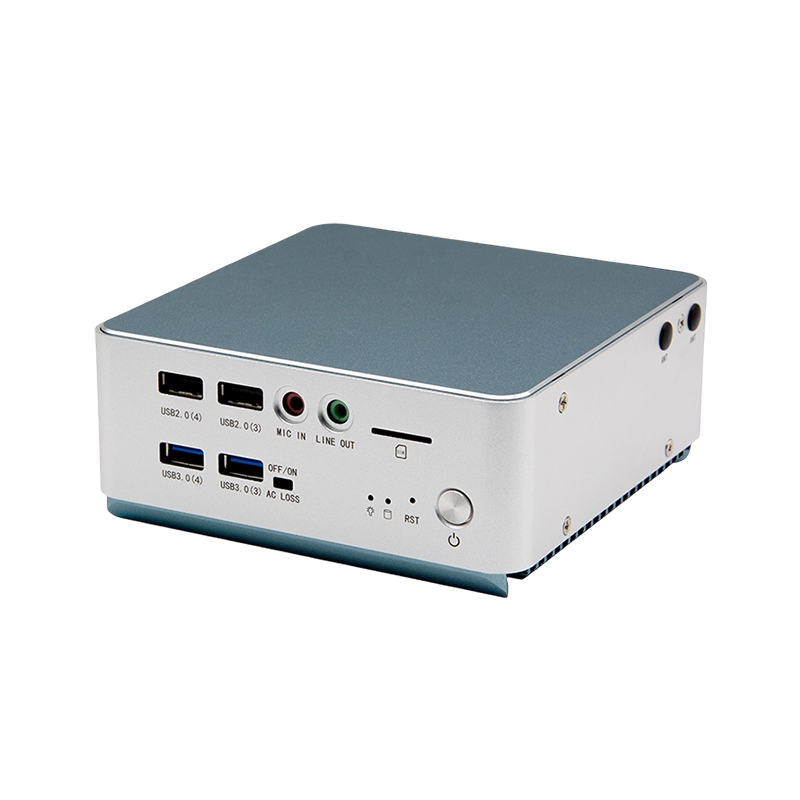

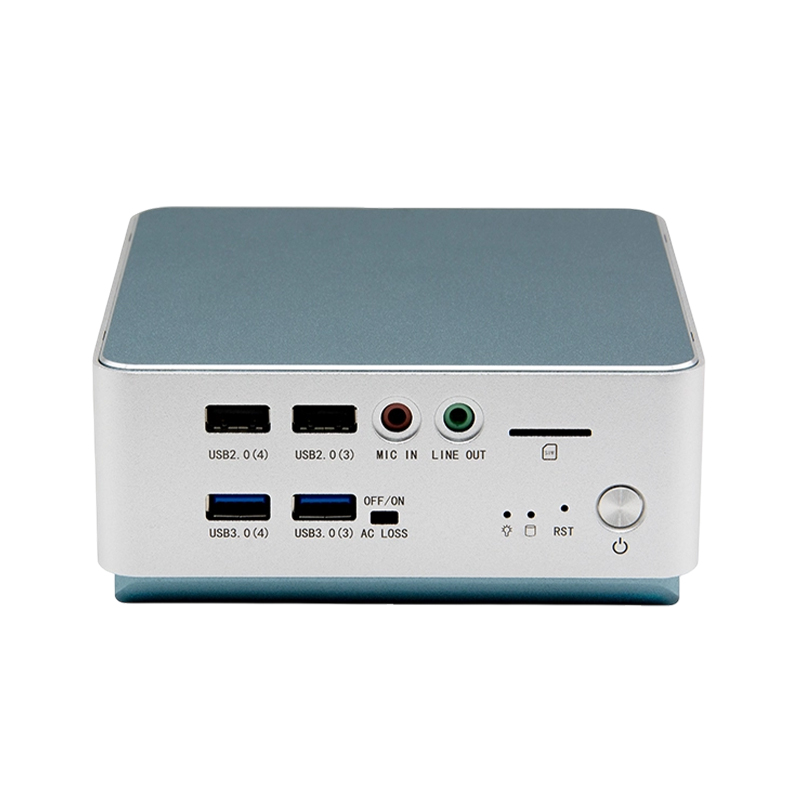

Front Panel Connectors

POWER

1*Power Switch, 1*One-Key   Restore, 1*AC LOSS (Power On/Off DIP Switch)

LED

1*Power Indicator, 1*Hard Drive   Indicator

POWER LED

2*USB3.0, 2*USB2.0

SIM

1*SIM card slot

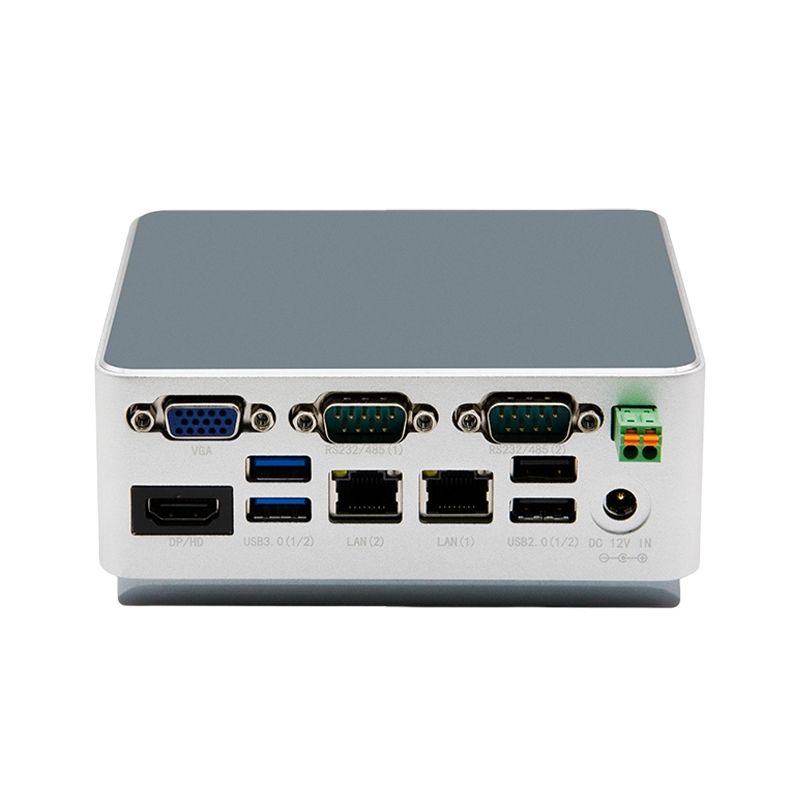

Rear Panel Interface

Display Interface

1*HDMI1.4(4096x2304@24Hz),1*VGA,   support dual display

LAN

2*Realtek 8111H Gigabit LAN   card, support Wake on LAN, PXE function

USB

2*USB2.0,2*USB3.0

COM

2*RS232/485 DB9 serial port,   support the 9th pin with power function, support CAN

AUDIO

1*Line out, 1*MIC

Power supply

1*DC 12V power input

Storage

MSATA

1*MSATA

M.2

1*M.2, support Key-M, 2280, SATA   standard SSD

Expansion

Mini PCIE

1*MiniPCIE, support WiFi or 4G

M.2

1*M.2, support Key-B, 2242/2252,   5G module (no signal on this interface)

System Support

Microsoft Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~255 seconds)

Power Requirements

Power supply type

External Power Adapter

Voltage Input

DC 12V

Power Output

AC TO DC, 36W / 60W (optional)

Environments

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5% to 95% relative humidity, non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating
